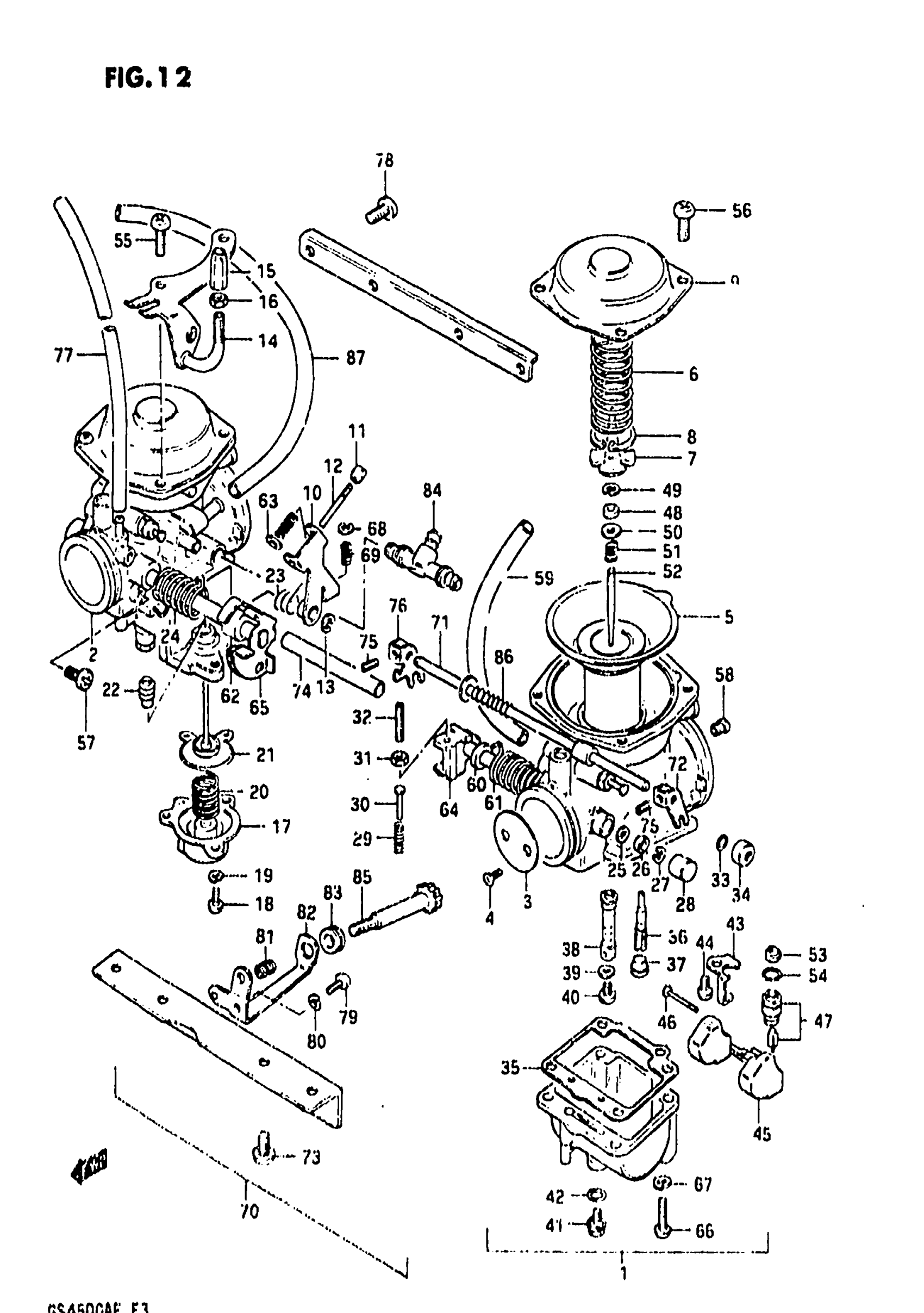

Find the part on the Carburetor diagram for your 1985 Suzuki GS450GA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GS450GA Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, LH

13201-44500

1
Out of stock

2

CARBURETOR ASSY,RH | Includes Item(s) 3 - 5

13202-44500

1
Out of stock

3

THROTTLE VALVE (95)

13551-44500

2
Out of stock

4

SCREW

13604-44080

4
Out of stock

5

DIAPHRAGM This part replaces 13500-44500.

13500-49250

2
Out of stock

6

SPRING

13503-47070

2
Out of stock

7

HOLDER,GUIDE | Includes Item(s) 8

13389-44030

2
Out of stock

8

CLIP

13581-44030

2
Out of stock

9

COVER | Includes Item(s) 10 - 13

13502-38300

2
Out of stock

10

LEVER ASSY, ACCELERATING | RH

13490-44500

1
Out of stock

11

NUT | RH

13497-44500

1
Out of stock

12

PIN | RH

13498-44500

1
Out of stock

13

E RING | RH

13617-44500

1
Out of stock

14

BRACKET | RH This part replaces 13621-44500.

13627-44460

1
Out of stock

15

ADJUSTER, CABLE | RH; Includes Item(s) 16 - 20

13577-98010

1
Out of stock

16

NUT | RH

13661-03010

1
Out of stock

17

COVER,ACCELERATING | RH

13488-44500

1
Out of stock

18

SCREW | RH This part replaces 02112-04106.

02112-0410A

3
Out of stock

19

LOCK WASHER | RH This part replaces 08321-21046.

08321-0104A

3
Out of stock

20

SPRING | RH

13494-44500

1
Out of stock

21

DIAPHRAGM ASSY, ACCELERATING | RH; Includes Item(s) 22 - 27

13491-44500

1
Out of stock

22

BOOT | RH

13499-44500

1
Out of stock

23

SPRING | RH

13573-44500

1
Out of stock

24

SPRING | RH

13573-44210

1
Out of stock

25

SEAL This part replaces 13651-51010.

13651-51011

4
Out of stock

26

GASKET

13557-47070

2
Out of stock

27

E RING

13617-44080

2
Out of stock

28

CAP | Includes Item(s) 29 - 67

13578-47070

2
Out of stock

29

SPRING

13268-44110

2
Out of stock

30

PIN | LH

13563-44110

1
Out of stock

31

NUT | LH

13607-47070

1
Out of stock

32

SCREW | LH

13605-47080

1
Out of stock

33

2

$2.01

In stock

34

.CAP, STARTER VALVE

13682-31210

2

$4.36

In stock

35

GASKET,FLOAT CAMBER

13251-44500

2
Out of stock

36

.JET, PILOT (#42.5)

09492-42010

2
Out of stock

37

PLUG

13357-44080

2
Out of stock

38

JET,NEEDLE (0-8)

09494-00377

2
Out of stock

39

2

$2.92

In stock

40

JET, MAIN (120)

09491-24016

2

$12.38

In stock

41

SCREW,DRAIN

13247-44080

2

$8.18

In stock

42

O RING

13246-44080

2

$2.92

In stock

43

PLATE

13373-11400

2

$7.22

In stock

44

2

$1.67

In stock

45

FLOAT ASSY

13250-44080

2
Out of stock

46

PIN

13254-92311

2

$2.41

In stock

47

NEEDLE VALVE ASSY

13370-44500

2

$50.83

In stock

48

RING

13387-47010

2

$7.41

In stock

49

E RING

13394-10010

2

$4.76

In stock

50

GASKET

13382-47010

2

$3.65

In stock

51

SPRING

13388-47010

2

$9.17

In stock

52

NEEDLE JET (50055)

13383-44500

2
Out of stock

53

2

$10.26

In stock

54

2

$5.97

In stock

55

SCREW, THROTTLE | RH This part replaces 02112-05106.

02112-0510A

2
Out of stock

56

SCREW | RH:2,LH:4 This part replaces 02112-05086.

02112-0508A

6
Out of stock

57

SCREW | RH

13605-73000

1
Out of stock

58

JET, PILOT AIR (135)

09493-27001

2
Out of stock

59

HOSE,5X10X600 | LH,L:400 350 This part replaces 13683-11420.

44421-13ER0

1
Out of stock

60

RING | LH

13387-44200

1
Out of stock

61

SPRING | LH

13573-44200

1
Out of stock

62

RING | RH

13387-44210

1
Out of stock

63

WASHER | RH

13496-44500

1
Out of stock

64

SHAFT ASSY | LH

13550-44210

1
Out of stock

65

SHAFT ASSY | RH

13550-44500

1
Out of stock

66

.SCREW This part replaces 02112-05166.

02112-0516A

8
Out of stock

67

LOCK WASHER This part replaces 08321-21056.

08321-0105A

8
Out of stock

69

SPRING | RH

13268-44012

1
Out of stock

70

FLANCE ASSY | Includes Item(s) 71 - 87

13210-44500

1
Out of stock

71

SHAFT, STARTER

13410-44500

1
Out of stock

72

LEVER

13422-44080

1
Out of stock

73

SCREW This part replaces 02112-06126.

02112-0612A

4
Out of stock

74

HOSE (7x3x80)

13683-44500

1
Out of stock

75

SCREW

13605-47070

2
Out of stock

76

LEVER

13422-44500

1
Out of stock

77

HOSE(4.5X8.5X60 | L:390-240 This part replaces 13683-45050.

09355-45001-600

1
Out of stock

78

4

$1.55

In stock

79

SCREW This part replaces 02112-05086.

02112-0508A

1
Out of stock

80

LOCK WASHER This part replaces 08321-21056.

08321-0105A

1
Out of stock

81

1

$6.00

In stock

82

BRACKET This part replaces 13621-44210.

13627-44120

1
Out of stock

83

BUSH

13681-16600

1
Out of stock

84

NIPPLE

13685-11400

1
Out of stock

85

ADJUSTER

13267-47070

1
Out of stock

86

SPRING

13437-44500

1
Out of stock

87

HOSE,5X10X600 This part replaces 13687-11400.

44421-13ER0

1
Out of stock
