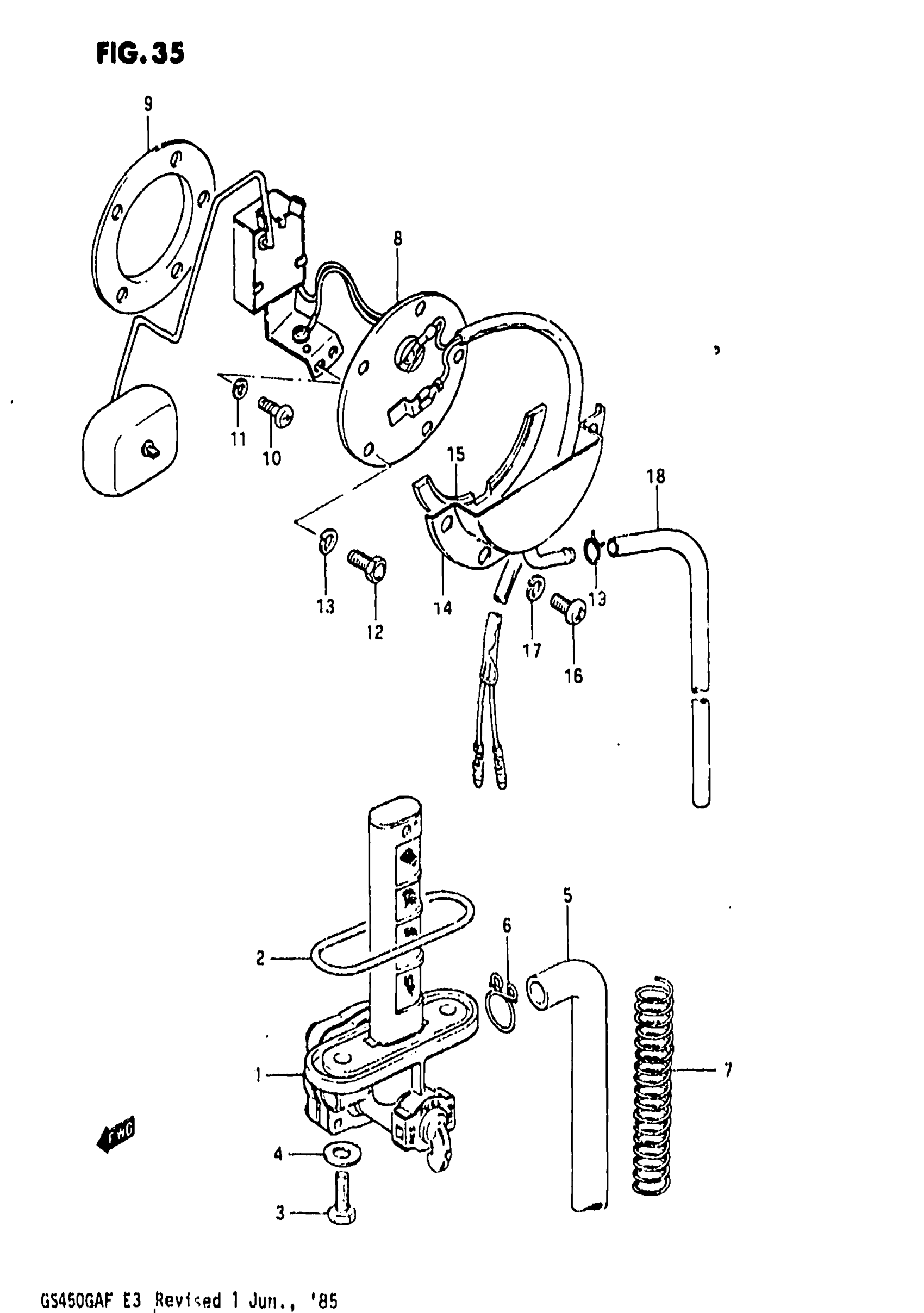

Suzuki GS450GA (1985) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-45372.

44300-45373

$72.12

2

O RING This part replaces 44348-49170.

44348-49171

$2.88

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

5

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$15.32

6

CLIP

09401-10402

$2.42

7

SPRING This part replaces 09440-13018.

09440-13043

$6.04

8

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 9

34810-44901

Unavailable

9

GASKET

34825-45100

$5.80

10

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.49

11

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

12

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

13

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

14

PLATE, FUEL DRAIN

34885-34500

Unavailable

15

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

Unavailable

16

SCREW This part replaces 02112-05086.

02112-0508A

$1.49

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

18

HOSE(5X8.2X600) This part replaces 09343-05156.

09359-50824-600

$7.98

19

CLIP

09401-08402

$1.49
