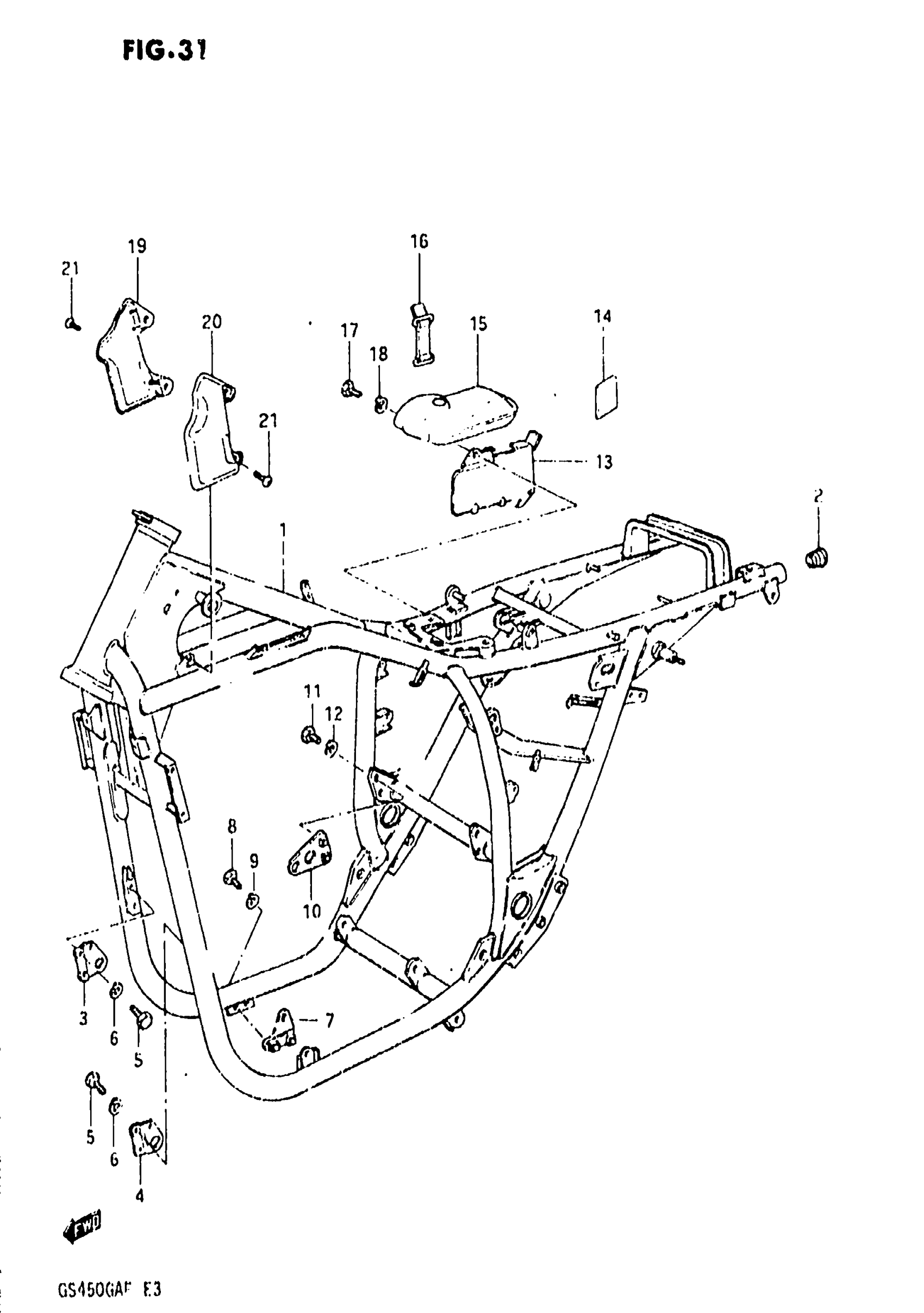

Suzuki GS450GA (1985) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-44510-019

Unavailable

2

CAP

09250-22002

$1.99

3

PLATE, NO.1 RH (BLACK)

41911-44500-019

Unavailable

4

PLATE, NO.1 LH (BLACK)

41921-44500-019

Unavailable

5

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

6

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

7

PLATE, NO.2 RH (BLACK)

41920-44110-019

Unavailable

8

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

9

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

10

PLATE, NO.4 RH (BLACK)

41970-44500-019

Unavailable

11

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

12

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

13

HOLDER, TOOL This part replaces 47430-44400.

47430-44401

Unavailable

14

CUSHION

33651-37000

$4.48

15

TOOL SET This part replaces 09800-06800.

09800-06801

Unavailable

16

BAND This part replaces 09462-00072.

09462-00094

$3.16

17

BOLT This part replaces 01107-06108.

01500-06107

$2.06

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

COVER, FRAME HEAD RH

51876-44500

Unavailable

20

COVER, FRAME HEAD LH

51886-44500

Unavailable

21

.SCREW This part replaces 02142-05125.

02142-0512A

$1.49
