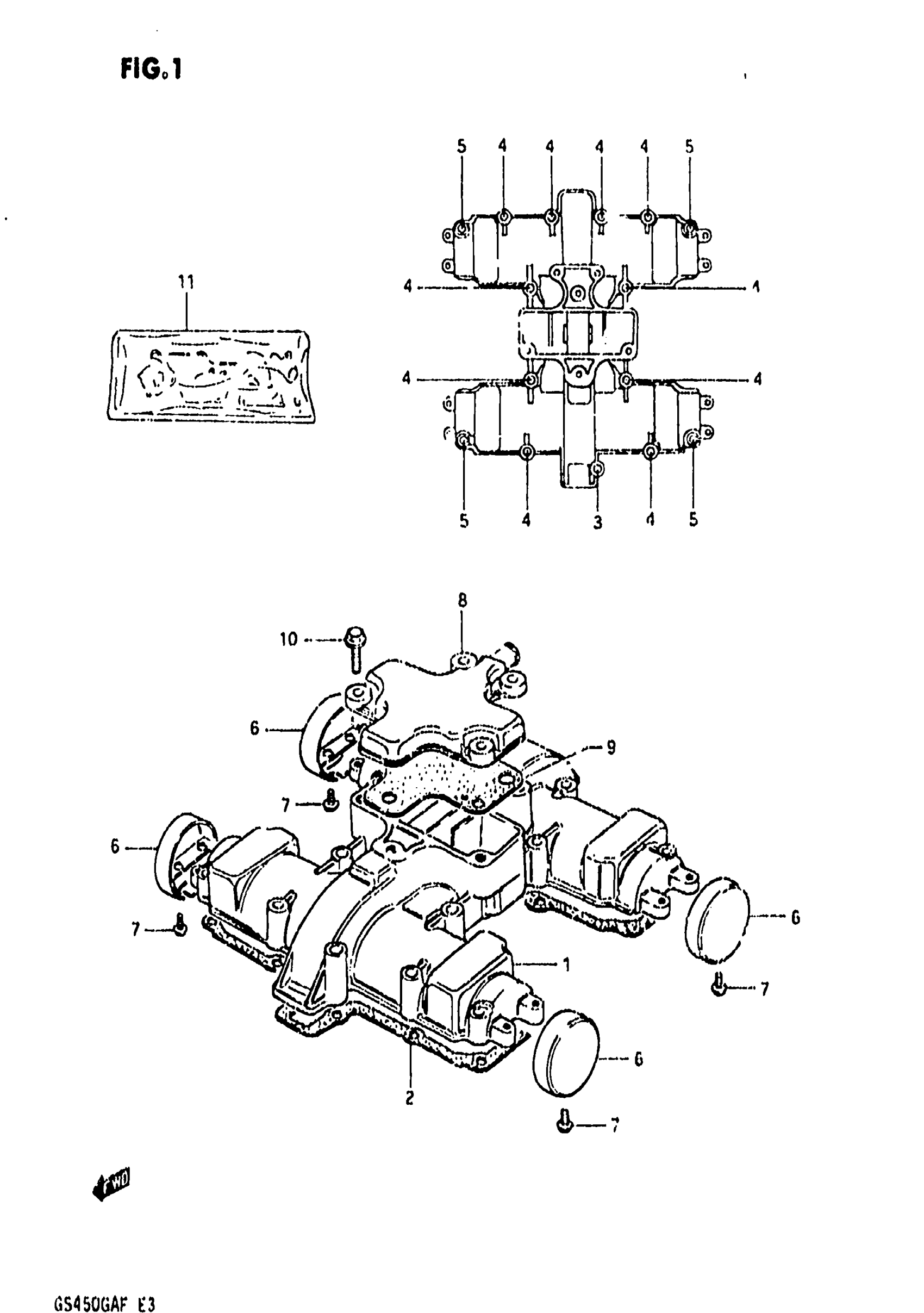

Suzuki GS450GA (1985) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-44120

Unavailable

2

GASKET,HEAD COV This part replaces 11173-44111.

11173-44112

Unavailable

3

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

4

BOLT This part replaces 01517-06404.

01550-0640A

$2.42

5

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

6

CAP, SIDE

11174-44110

Unavailable

7

SCREW

09125-05037

Unavailable

8

COVER, BREATHER

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

11

GASKET SET | OPT

11400-44895

Unavailable
