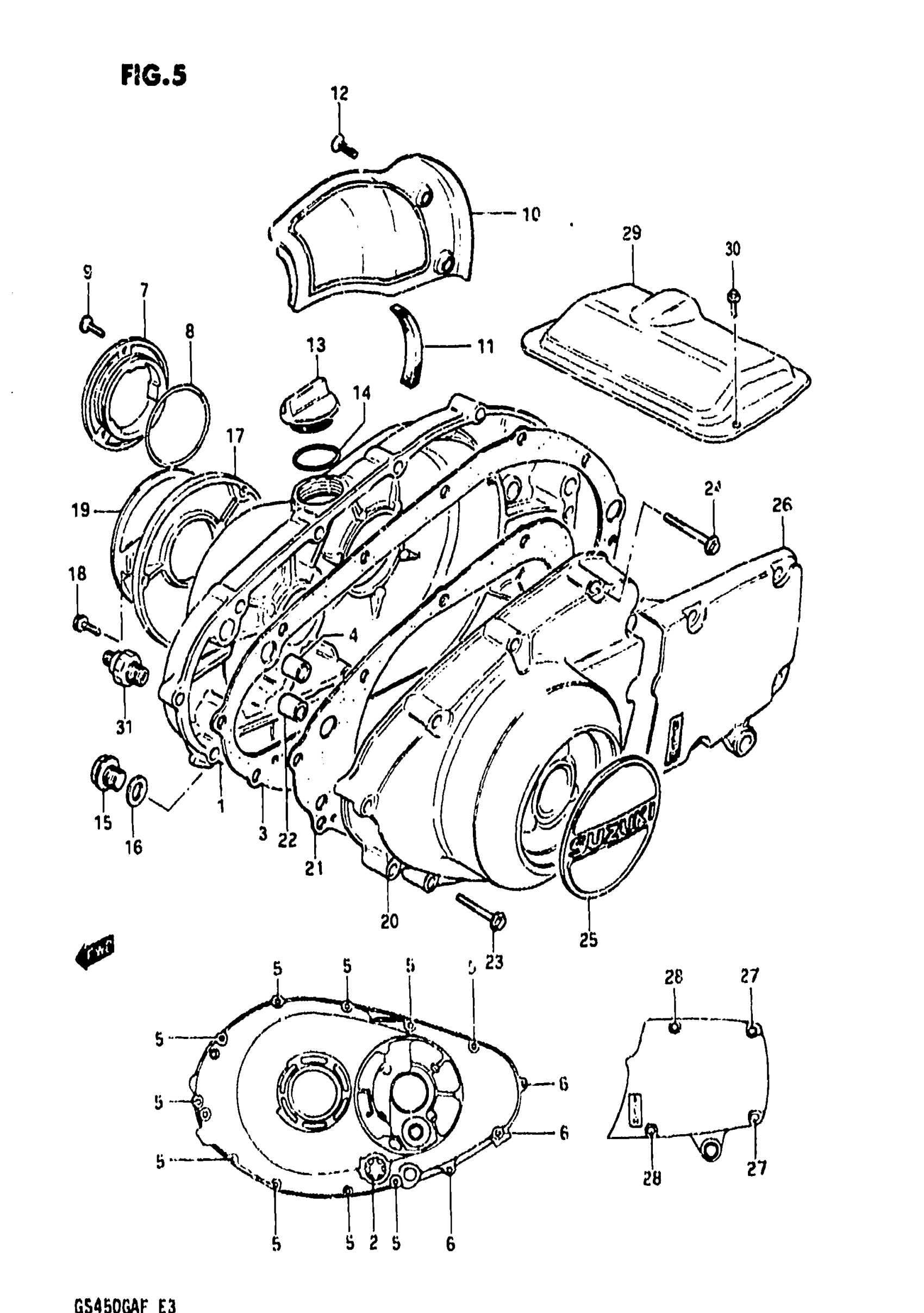

Suzuki GS450GA (1985) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-44501

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET

11482-44500

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT This part replaces 01547-06358.

01547-06357

$2.03

6

BOLT This part replaces 01547-06258.

01547-06257

$2.03

7

CAP, CLUTCH COVER

11383-44501

Unavailable

8

O RING

09280-54001

$3.76

9

SCREW This part replaces 02132-05167.

02122-05167

$2.47

10

PROTECTOR, CLUTCH

11391-44500

Unavailable

11

DAMPER, PROTECTOR

11392-44500

Unavailable

12

SCREW This part replaces 02132-06167.

02122-06167

$1.49

13

PLUG, OIL FILLER

09200-30810

$10.15

14

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

15

PLUG This part replaces 09247-14012.

09247-14026

$3.76

16

GASKET

09168-14004

$1.83

17

COVER, CONTACT BREAKER

11381-44101

Unavailable

18

BOLT This part replaces 01547-05168.

01547-05167

$1.72

19

EMBLEM

68233-44100

Unavailable

20

COVER, GENERATOR

11351-44500

Unavailable

21

GASKET,MAGNETO This part replaces 11483-44500.

11483-44501

$21.03

22

PIN This part replaces 09206-13001.

04211-13189

$2.19

23

BOLT This part replaces 01547-06258.

01547-06257

$2.03

24

BOLT This part replaces 01547-06308.

01547-06307

$2.03

25

EMBLEM

68233-44100

Unavailable

26

COVER, SECONDARY DRIVE UNIT

11360-44500

Unavailable

27

BOLT This part replaces 01547-06208.

01547-06207

$2.01

28

BOLT This part replaces 01547-06258.

01547-06257

$2.03

29

COVER, STARTER MOTOR

11382-44111

$32.92

30

BOLT, COVER This part replaces 01547-05084.

01547-0508B

$2.97

31

SWITCH ASSY,OIL PRESSURE This part replaces 37820-34200.

37820-33D11

$25.13
