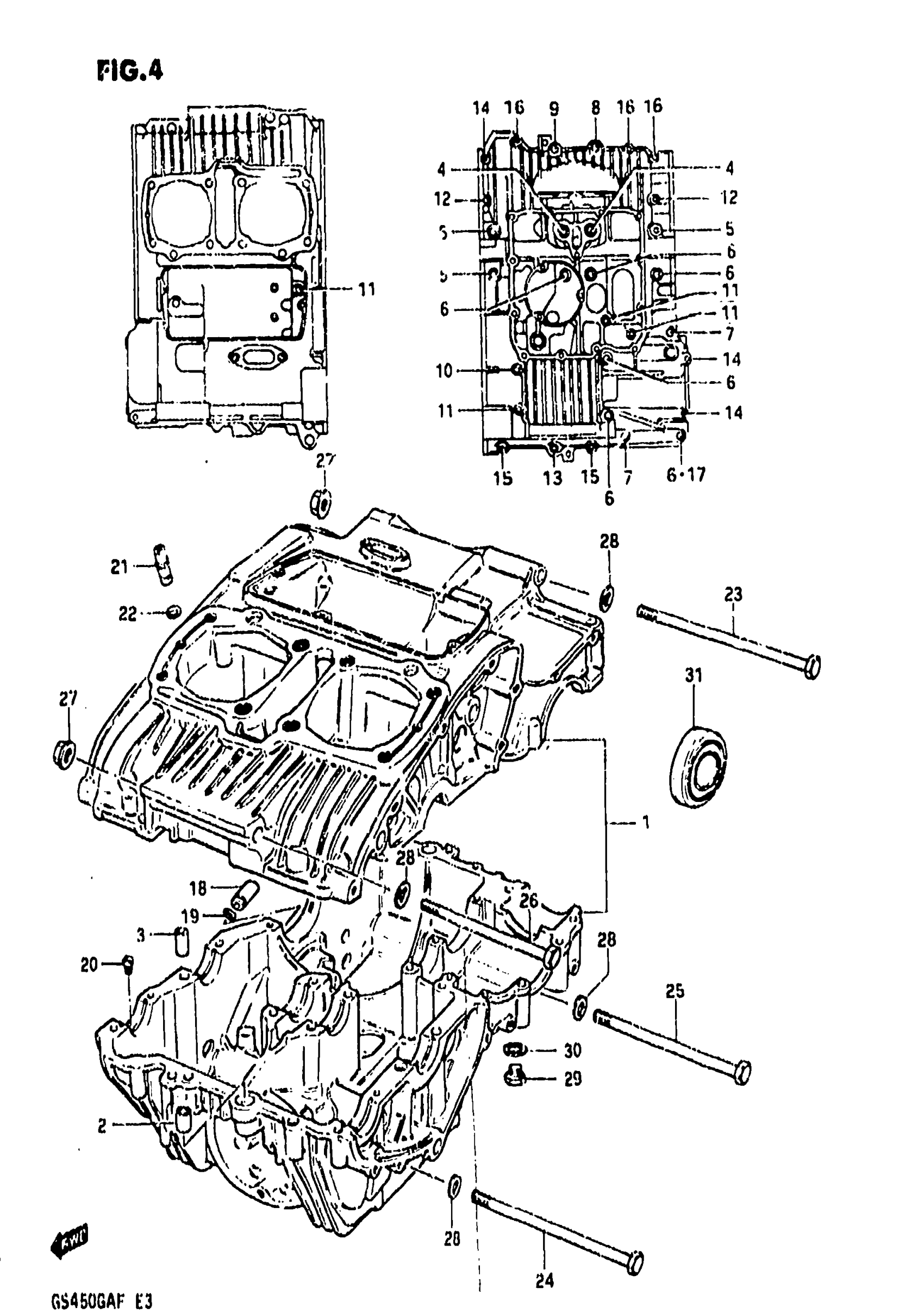

Suzuki GS450GA (1985) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 22

11300-44890

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT This part replaces 07110-08706.

07130-0870B

$5.37

5

BOLT (8X125) This part replaces 09103-08094.

09103-08182

$5.72

6

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

7

BOLT (8x70)

01517-08705

Unavailable

8

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

9

BOLT This part replaces 01517-08455.

01550-0845A

$3.14

10

BOLT (6X125) This part replaces 09103-06036.

09103-06033

$3.91

11

BOLT (6X105)

09103-06067

$2.48

12

BOLT This part replaces 01517-06905.

01550-0690B

Unavailable

13

BOLT This part replaces 01517-06705.

01550-0670B

$4.25

14

BOLT (6X65)

01517-06655

Unavailable

15

BOLT This part replaces 01517-06505.

01550-0650A

$2.85

16

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

17

NUT This part replaces 08316-16085.

08316-1008B

$2.66

18

CHECK VALVE, OIL

16430-44501

Unavailable

19

O RING

09280-04003

Unavailable

20

JET, BALANCER SHAFT

09493-24005

Unavailable

21

JET, OIL GALLERY CYLINDER

09493-24009

Unavailable

22

O RING

09280-04004

$1.91

23

BOLT (10x220)

09100-10170

Unavailable

24

BOLT (10x210) This part replaces 09100-10145.

09100-10033

Unavailable

25

BOLT This part replaces 09100-10136.

41189-17X00

Unavailable

26

BOLT 10X125 This part replaces 09100-10135.

09100-10274

$7.15

27

NUT This part replaces 08319-31105.

08319-3110A

$2.73

28

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

29

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

30

GASKET

09168-14004

$1.83

31

PLUG

09241-52004

Unavailable
