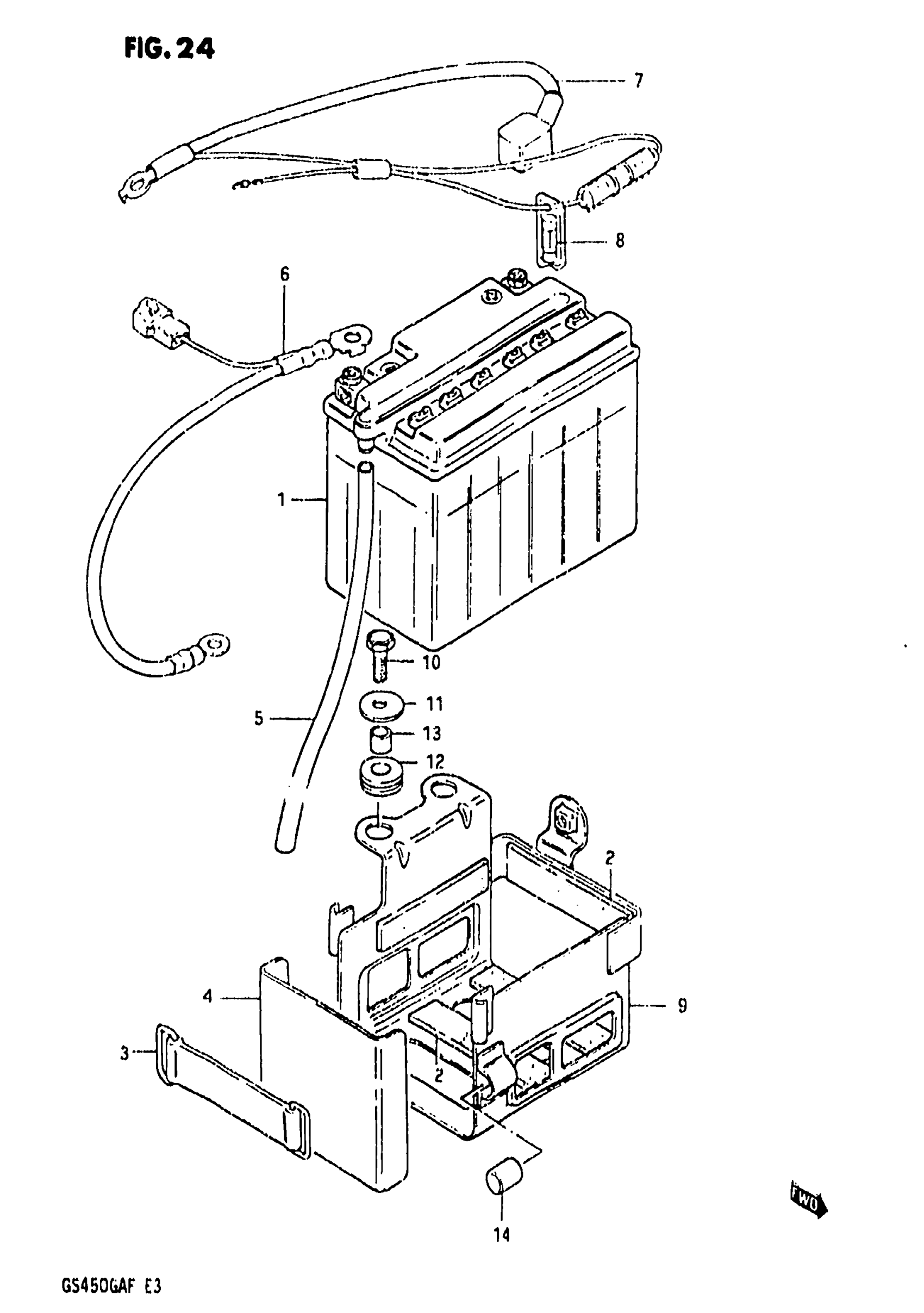

Suzuki GS450GA (1985) BATTERY Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 33610-11600.

33610-11010

Unavailable

2

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

3

BAND

09462-00008

$4.77

4

COVER, BATTERY

33661-44101

Unavailable

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

6

WIRE, BATT (-) This part replaces 33860-44500.

33860-44501

Unavailable

7

LEAD WIRE, (+) | Includes Item(s) 8

36740-44501

Unavailable

8

FUSE (15A)

09481-15001

$2.06

9

HOLDER, BATTERY

41540-11500

Unavailable

10

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

11

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

13

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

14

CUSHION

09329-05006

$2.38
