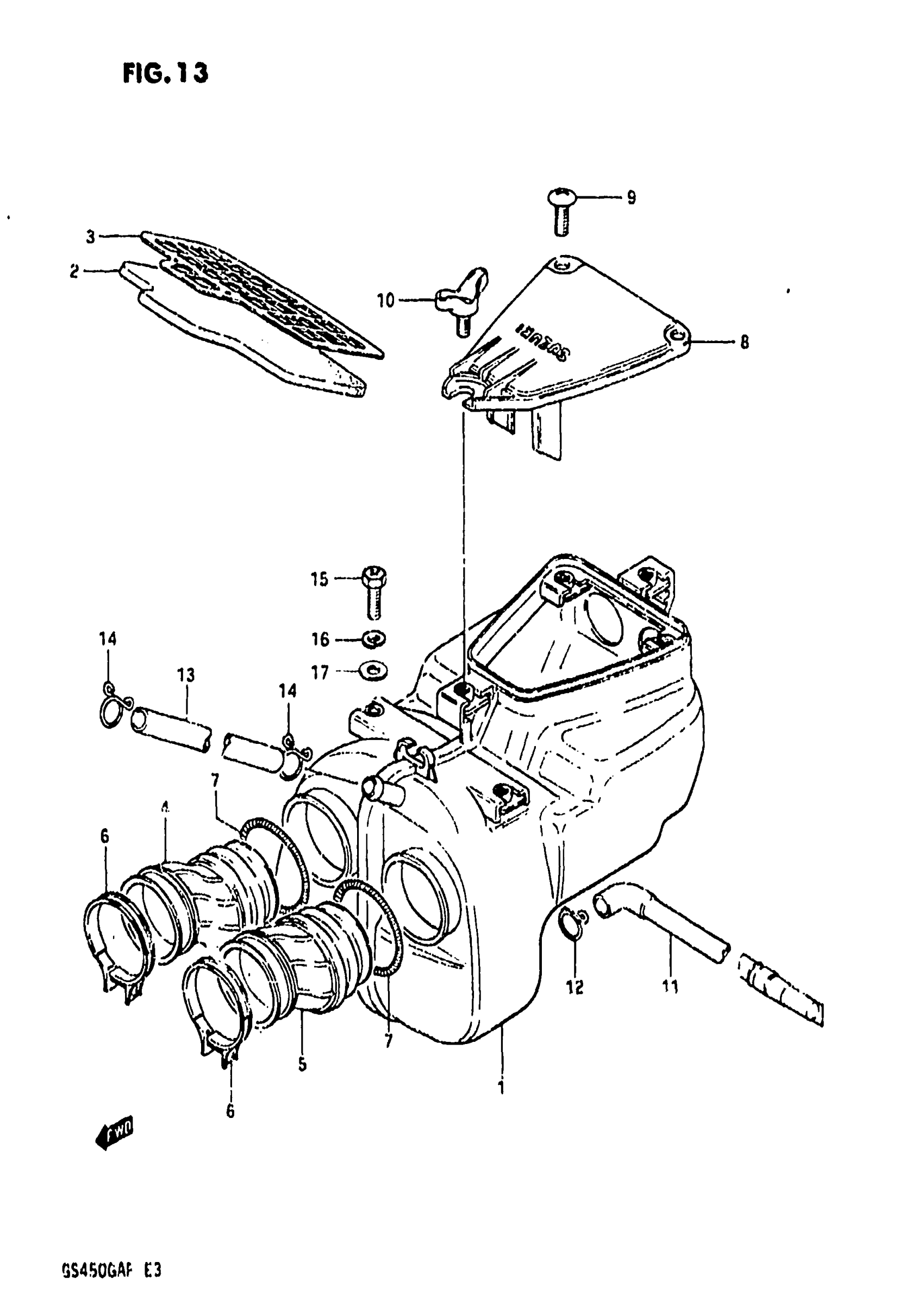

Suzuki GS450GA (1985) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 14

13700-44502

Unavailable

2

FILTER

13781-44500

Unavailable

3

HOLDER, FILTER

13792-44500

Unavailable

4

HOSE, OUTLET RH

13881-44500

Unavailable

5

HOSE, OUTLET LH

13882-44500

Unavailable

6

CLAMP This part replaces 09402-56207.

09402-56901

$5.36

7

CLAMP

13931-02100

Unavailable

8

CAP

13740-44500

Unavailable

9

SCREW

02142-06167

$1.49

10

BOLT This part replaces 13831-44500.

09119-06086-XC0

Unavailable

11

TUBE,DRAIN This part replaces 13870-21291.

13870-21309

$12.39

12

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

13

HOSE This part replaces 13851-00260.

09352-11154-600

$13.05

14

CLIP This part replaces 13879-14301.

09401-14301

$2.35

15

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13
