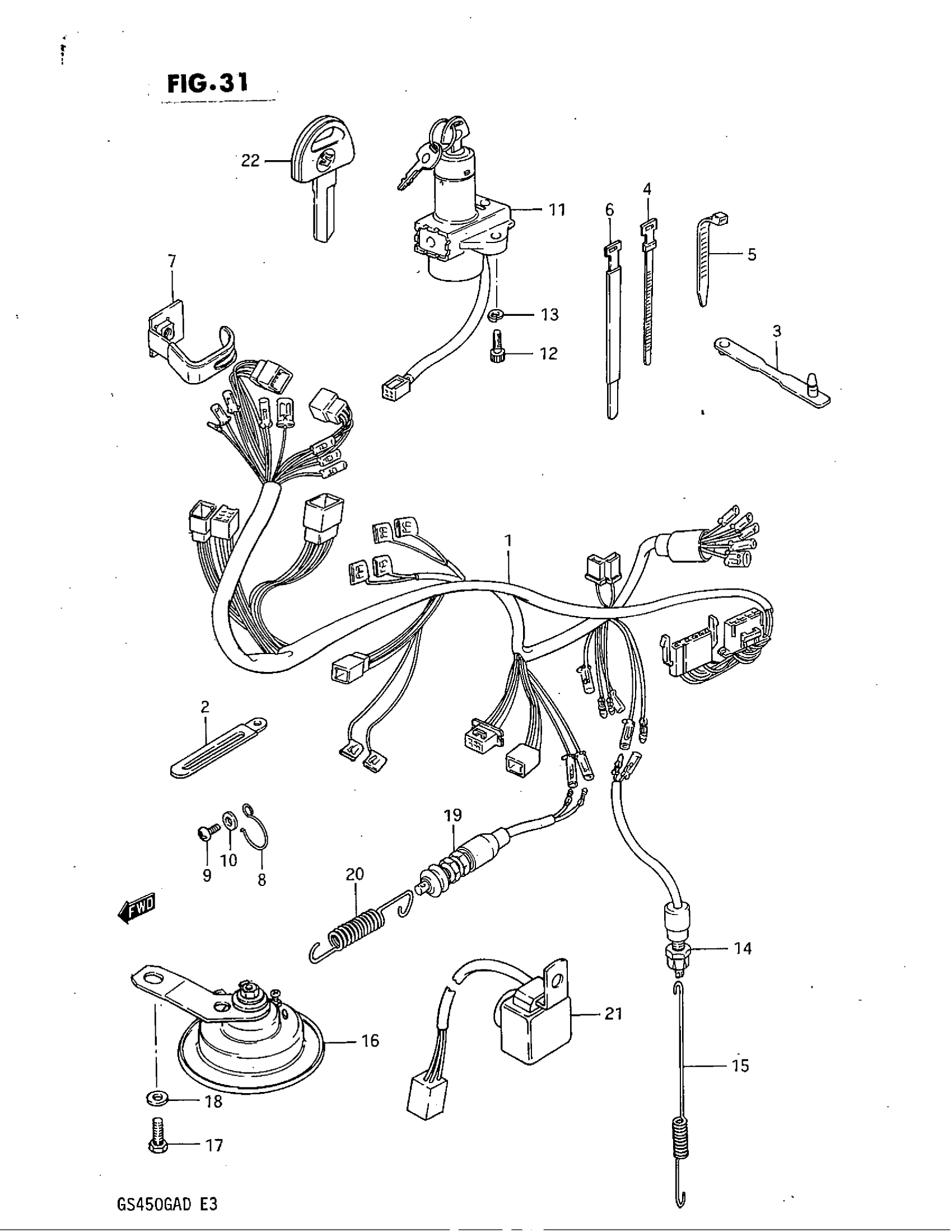

Suzuki GS450GA (1983) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 36610-44500.

36610-44501

Unavailable

1

WIRING HARNESS | MODEL D

36610-44510

Unavailable

2

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

2

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

3

CLAMP

09407-05403

$2.38

4

CLAMP (L:125) This part replaces 09407-08401.

09407-14403

$2.26

5

CLAMP | MODEL D

09407-14403

$2.26

6

CLAMP | MODEL Z This part replaces 09407-18301.

09407-18302

$2.28

7

CLAMP

36650-33201

Unavailable

8

CLIP This part replaces 36619-44500.

36619-44501

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

SWITCH ASSY, IGNITION | MODEL Z

37100-44500

Unavailable

11

SWITCH ASSY, IGNITION | MODEL D; Includes Item(s) 12 - 13

37100-44510

Unavailable

12

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

15

SPRING This part replaces 09443-06045.

09443-06045-XC0

Unavailable

16

HORN

38500-44500

Unavailable

17

BOLT This part replaces 01107-08128.

01500-08127

$2.62

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

SW ASSY SIDE ST This part replaces 37840-49201.

37840-38301

Unavailable

20

SPRING

09443-06010

Unavailable

21

BUZZER, PROP STAND WARNING | MODEL Z This part replaces 38790-44500.

38790-44501

Unavailable

21

BUZZER, PROP STAND WARNING | MODEL D

38790-44501

Unavailable

22

KEY, BLANK | OPT

37146-47010

$18.39
