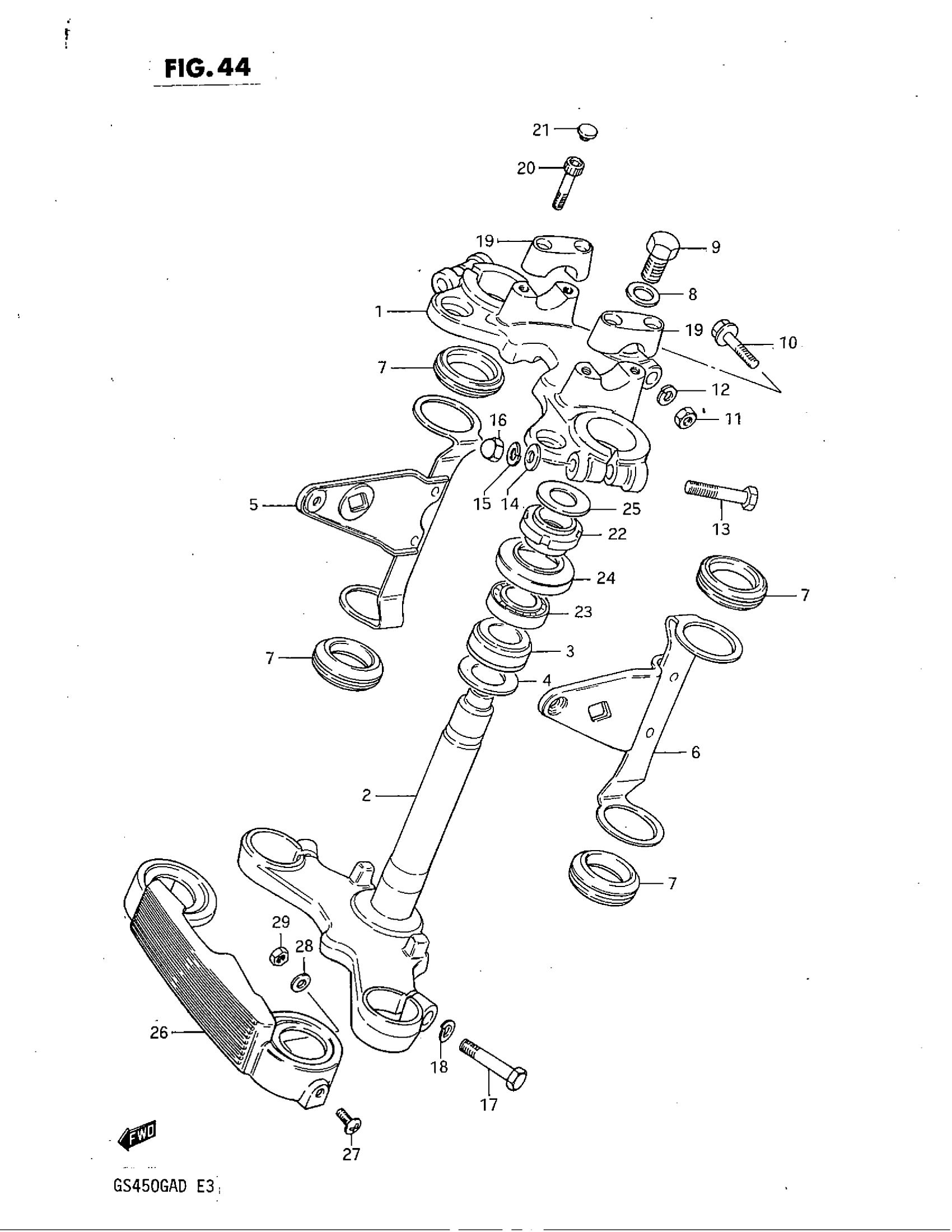

Suzuki GS450GA (1983) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-33200-291

Unavailable

2

STEERING STEM SET | Includes Item(s) 3 - 4

51400-33831

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH

51530-44500-291

Unavailable

6

BRACKET, HEADLAMP LH

51540-44500-291

Unavailable

7

CUSHION, HEADLAMP BRACKET

51553-44000

Unavailable

8

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

9

BOLT

09104-12013

$4.11

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08313-11088.

08313-10087

$2.28

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

BOLT This part replaces 01517-10558.

01550-10557

$3.91

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

NUT

09145-10002

Unavailable

17

BOLT This part replaces 01107-10408.

01500-10407

$3.55

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

CLAMP, HANDLEBAR UPPER

56211-34300-291

Unavailable

20

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

21

CAP

09250-06004

$1.49

22

NUT, STEERING STEM

51631-34200

Unavailable

23

BEARING, UPPER

09265-25008

Unavailable

24

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

25

WASHER

09160-18002

$2.38

26

COVER, FRONT FORK

51871-44401

Unavailable

27

SCREW This part replaces 02142-05085.

02142-0508A

$1.49

28

WASHER This part replaces 08322-21058.

08322-01057

$2.13

29

NUT This part replaces 08310-11058.

08310-00057

$1.84
