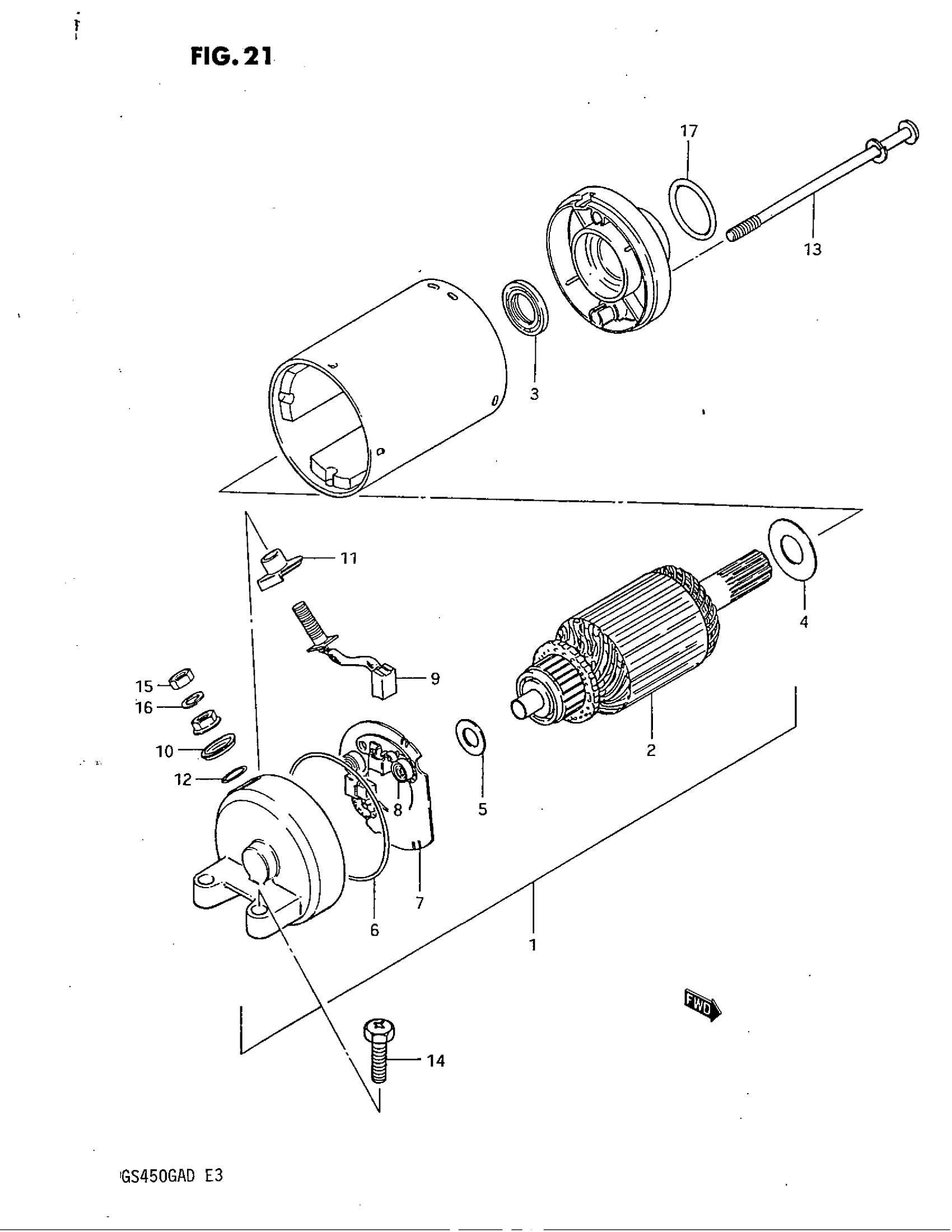

Suzuki GS450GA (1983) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STAR | Includes Item(s) 2 - 13 This part replaces 31100-44110.

31100-30B00-H17

Unavailable

2

ARMATURE This part replaces 31311-44110.

31311-49211-H17

Unavailable

3

OIL SEAL This part replaces 31153-45010.

31153-43400

$24.20

4

SHIM (A)

31361-10200

Unavailable

5

.SHIM SET This part replaces 31361-47010.

31170-43400

Unavailable

6

O RING

31264-44110

$11.87

7

BRUSH HOLDER ASSY This part replaces 31132-44110.

31132-27A01

$73.55

8

SPRING

31135-65010

$4.52

9

BRUSH This part replaces 31130-44110.

31130-38300

$18.43

10

BUSHING (A)

31172-44110

Unavailable

11

BUSHING (B)

31171-44110

Unavailable

12

O RING

31143-44110

Unavailable

13

BOLT This part replaces 31281-44110.

31281-87402

Unavailable

14

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

15

.NUT This part replaces 08310-22068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55
