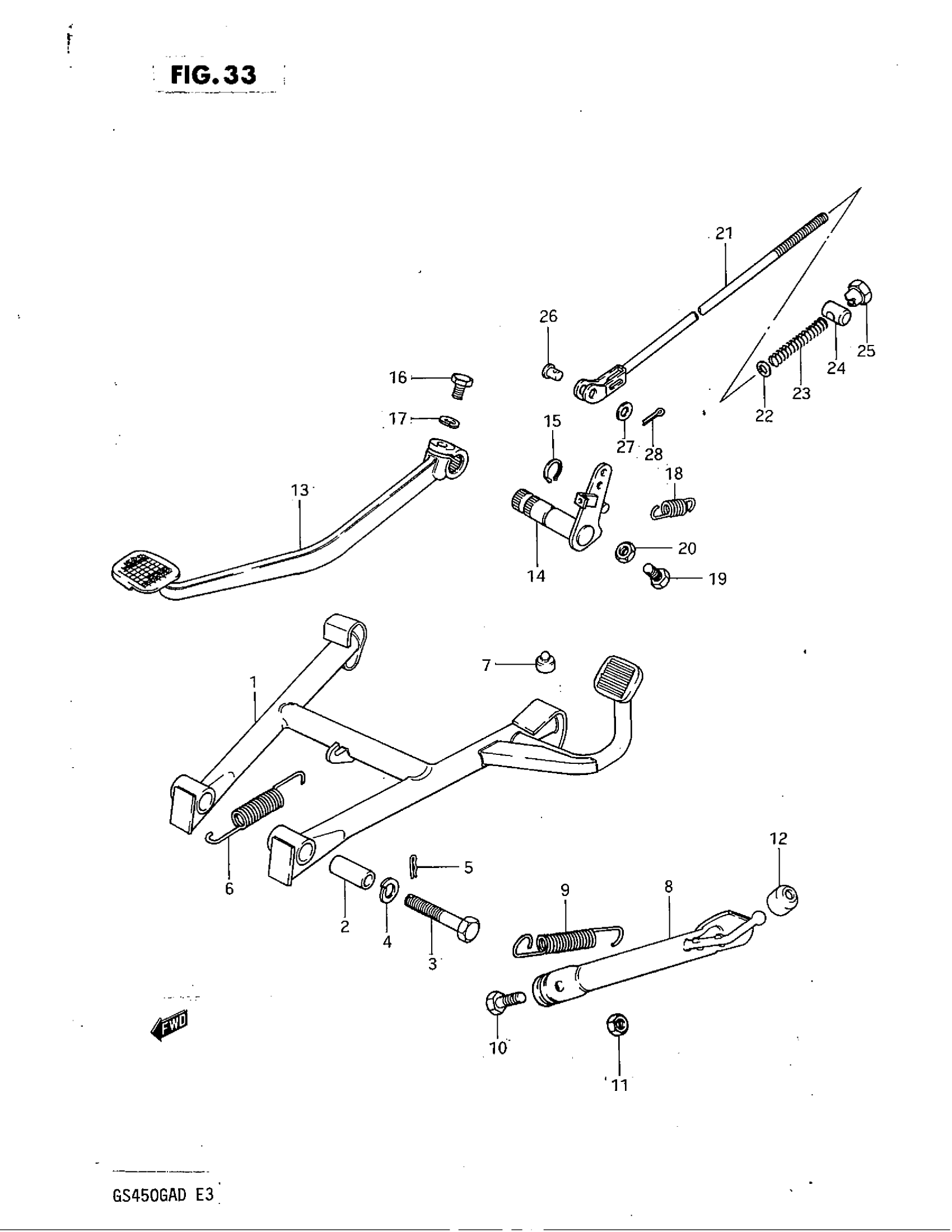

Suzuki GS450GA (1983) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, CENTER

42100-44500

Unavailable

2

SPACER

09180-10040

$3.12

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

5

CLIP This part replaces 09385-10001.

09385-10005

$1.50

6

SPRING, CENTER This part replaces 09443-18003.

09443-18006-XC0

$8.50

7

CUSHION

09321-10001

$2.69

8

STAND, PROP

42310-44500

Unavailable

9

SPRING

09443-15014

Unavailable

10

BOLT

09100-10067

$2.71

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION

09320-07001

$2.79

13

PEDAL, BRAKE

43110-44500

Unavailable

14

ARM, BRAKE PEDAL ROD

43120-44500

Unavailable

15

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.01

16

BOLT This part replaces 01107-08258.

01500-08257

$2.53

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

18

SPRING This part replaces 09443-14020.

09443-14015

$2.80

19

BOLT This part replaces 01107-06208.

01500-06207

$1.99

20

.NUT This part replaces 08310-11068.

08310-00067

$1.83

21

ROD ASSY, REAR BRAKE | Includes Item(s) 22 - 28

43300-44500

Unavailable

22

WASHER This part replaces 08322-21068.

08322-01067

$1.86

23

SPRING

09440-09004

$2.06

24

.PIN (13X18) | MODEL Z This part replaces 09209-13003.

09209-13018

$3.13

24

.PIN (13X18) | MODEL D This part replaces 09209-13005.

09209-13018

$3.13

25

.NUT | MODEL Z This part replaces 09150-06001.

09150-06010

$2.80

25

.NUT | MODEL D This part replaces 09150-06009.

09150-06010

$2.80

26

PIN

09200-06013

$2.05

27

WASHER This part replaces 08322-21068.

08322-01067

$1.86

28

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
