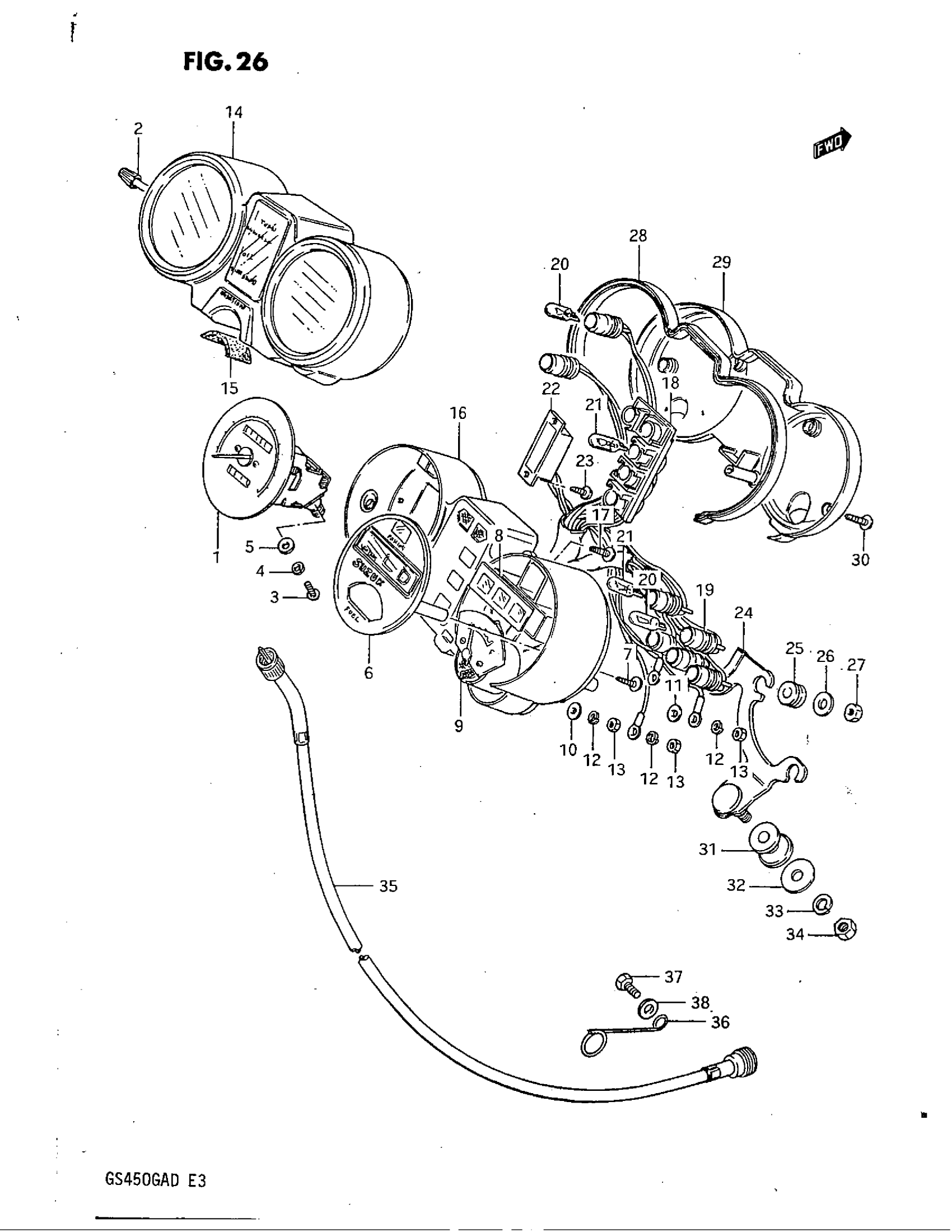

Suzuki GS450GA (1983) SPEEDOMETER (MODEL D) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-44530

Unavailable

2

KNOB

34980-45020

$3.77

3

SCREW This part replaces 02112-04108.

02112-04107

$1.55

4

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

5

WASHER This part replaces 08322-21048.

08322-01047

$1.86

6

PANEL, PILOT NO.1

36450-44530

Unavailable

7

SCREW

36456-44510

Unavailable

8

PANEL, PILOT NO.2

36451-44530

Unavailable

9

FUELMETER This part replaces 34320-44910.

34320-44911

Unavailable

10

WASHER

34384-44530

Unavailable

11

WASHER

34384-33220

Unavailable

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

13

NUT This part replaces 08310-11038.

08310-0003B

$2.83

14

HOOD, METER

34150-44530

Unavailable

15

SEAL

34993-47000

Unavailable

16

CASE, INNER

34111-44530

Unavailable

17

SCREW

02142-04127

$1.57

18

SOCKET, NO.1 This part replaces 36453-44530.

36453-44531

Unavailable

19

SOCKET, NO.2

36325-44530

Unavailable

20

BULB (12V,3.4W)

09471-12028

$1.99

21

BULB (12V,1.7W) | FOR HIGHT BEAM & FUEL METER

09471-12077

$3.55

22

RELAY, PROP STAND WARNING

38880-44510

Unavailable

23

SCREW

36456-44510

Unavailable

24

BRACKET, METER

34950-44530

Unavailable

25

CUSHION, METER NO.1 This part replaces 34189-44910.

34189-32B00

$5.78

26

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

27

NUT This part replaces 08310-11058.

08310-00057

$1.84

28

RING, COVER

34961-44910

Unavailable

29

COVER, LOWER

34193-44910

Unavailable

30

SCREW | ***

02142-04127

$1.57

31

CUSHION

34956-31001

$4.37

32

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

NUT This part replaces 08310-12088.

08310-00087

$2.13

35

CABLE SPEEDOMET This part replaces 34910-44400.

34910-44401

$26.05

36

GUIDE, METER CABLE

34938-45100

$6.57

37

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

38

WASHER This part replaces 08322-21068.

08322-01067

$2.13
