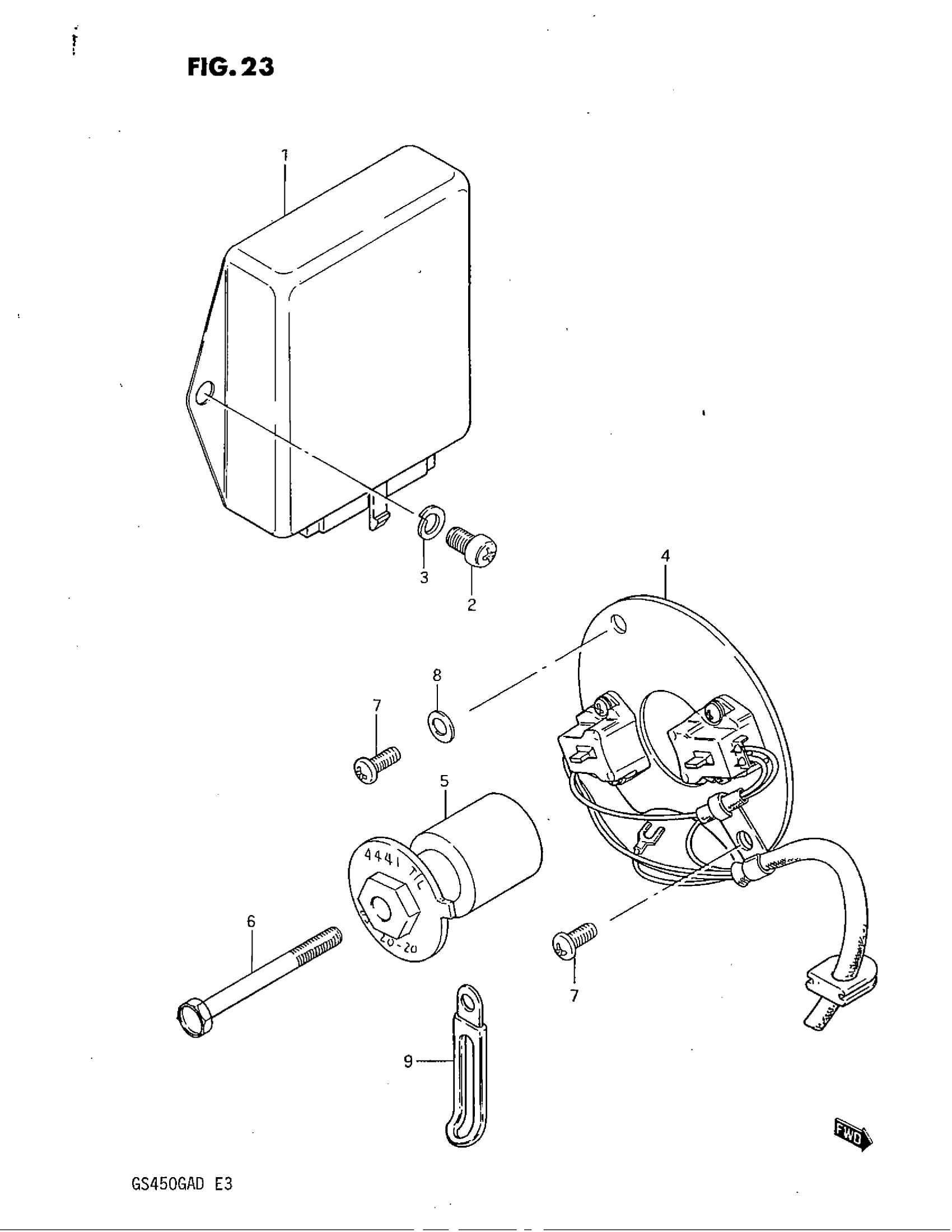

Suzuki GS450GA (1983) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITION UNIT

32900-44510

Unavailable

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

SIGNAL GENERATOR ASSY This part replaces 33110-44410.

33110-44420

$313.73

5

ROTOR, SIGNAL

33120-44510

Unavailable

6

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

7

SCREW

09125-05024

$1.72

8

WASHER This part replaces 09160-05027.

08322-01057

$2.13

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
