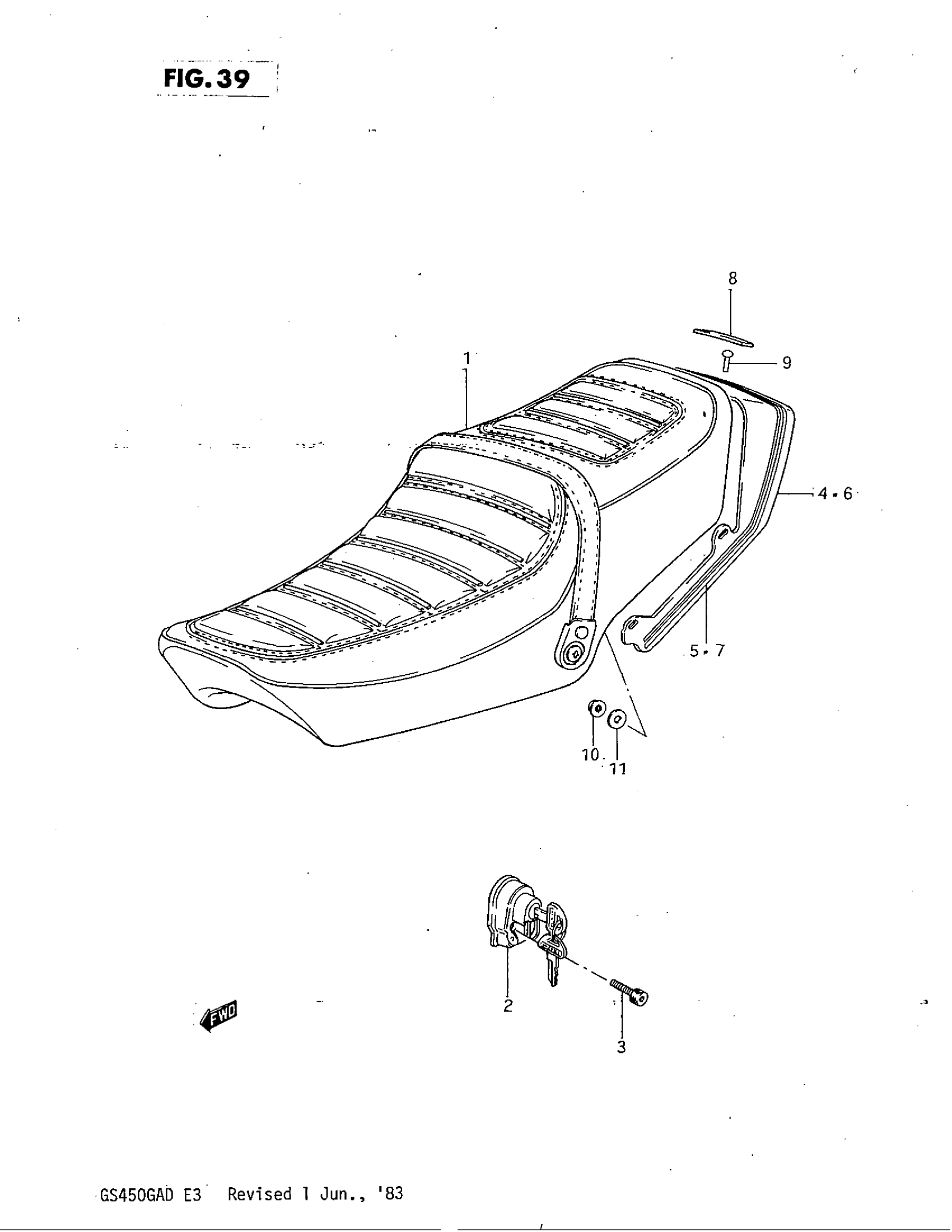

Suzuki GS450GA (1983) SEAT (MODEL Z) Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-44500-47T.

45100-44500-48H

Unavailable

2

LOCK ASSY, HELMET

95700-34210

Unavailable

3

BOLT This part replaces 09106-05008.

07130-0525B

$2.52

4

TAIL COVER, SEAT (BLACK)

45511-44500-019

Unavailable

5

TAPE SET

68160-44500-70G

Unavailable

6

TAIL COVER, SEAT (BLUE)

45511-44500-03F

Unavailable

7

TAPE SET

68160-44500-81R

Unavailable

8

EMBLEM

68234-44500

Unavailable

9

RIVET This part replaces 09229-04016.

09229-04017

Unavailable

10

NUT This part replaces 08316-16068.

08319-31067

$2.03

11

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30
