Description

Price

1

GRIP, THROTTLE This part replaces 57110-44500.

57110-49501

$34.00

2

SWITCH ASSY, HANDLE RH This part replaces 37200-49470.

37200-49471

Unavailable

2

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 3 This part replaces 37200-49450.

37200-49451

Unavailable

3

SCREW This part replaces 37591-49210.

09125-05102

$1.61

4

LEVER, BRAKE

57420-49101

$34.15

5

BOLT

57431-18621

$8.28

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

7

SWITCH ASSY, ST | Includes Item(s) 8 - 12 This part replaces 57460-49300.

57460-45500

$35.23

8

HOLDER

57465-18601

$4.34

9

COVER

57481-33010

$5.84

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

12

WASHER This part replaces 08322-21038.

08322-01037

$1.93

13

BAND (L:120)

09407-12402

$3.04

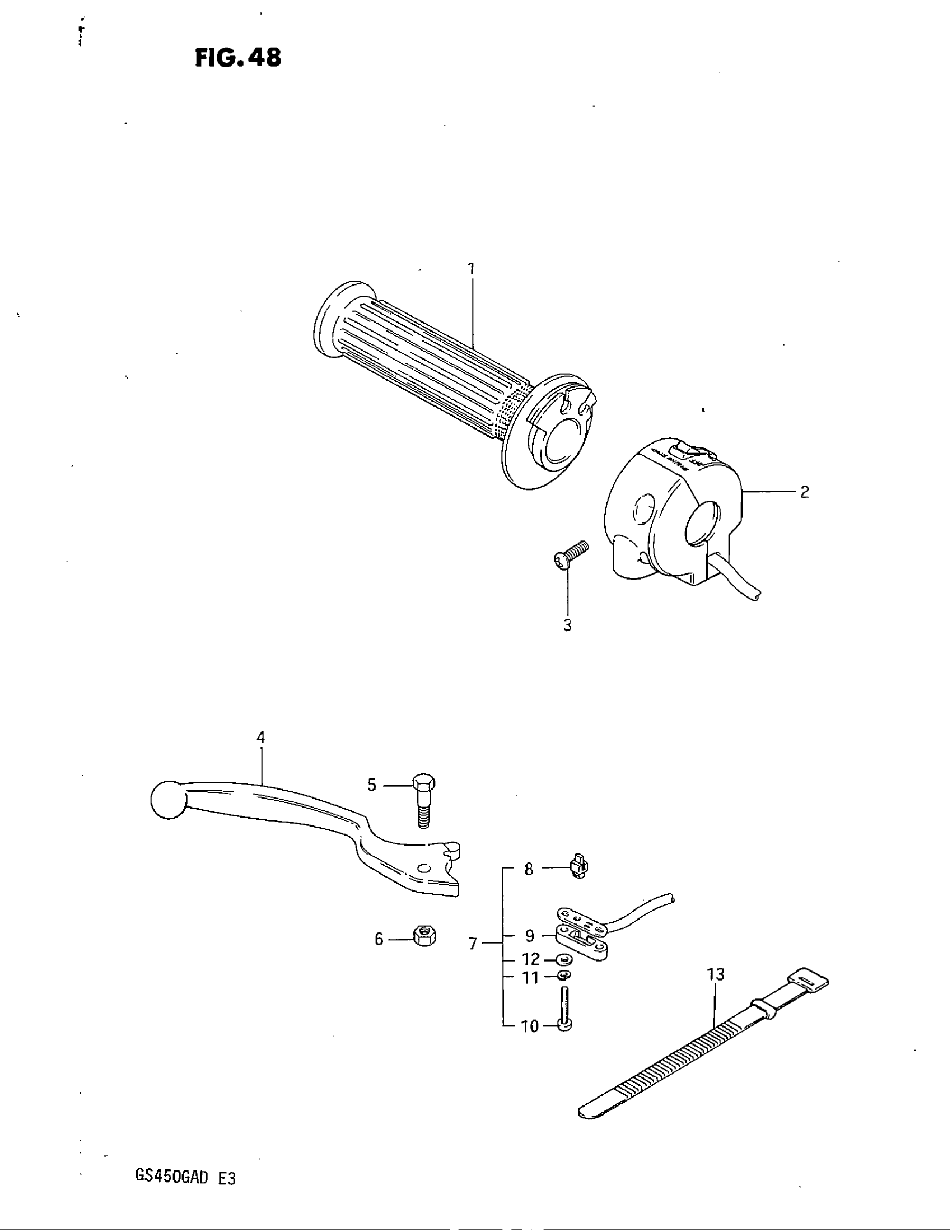

Suzuki GS450GA (1983) RIGHT HANDLE SWITCH Diagram
