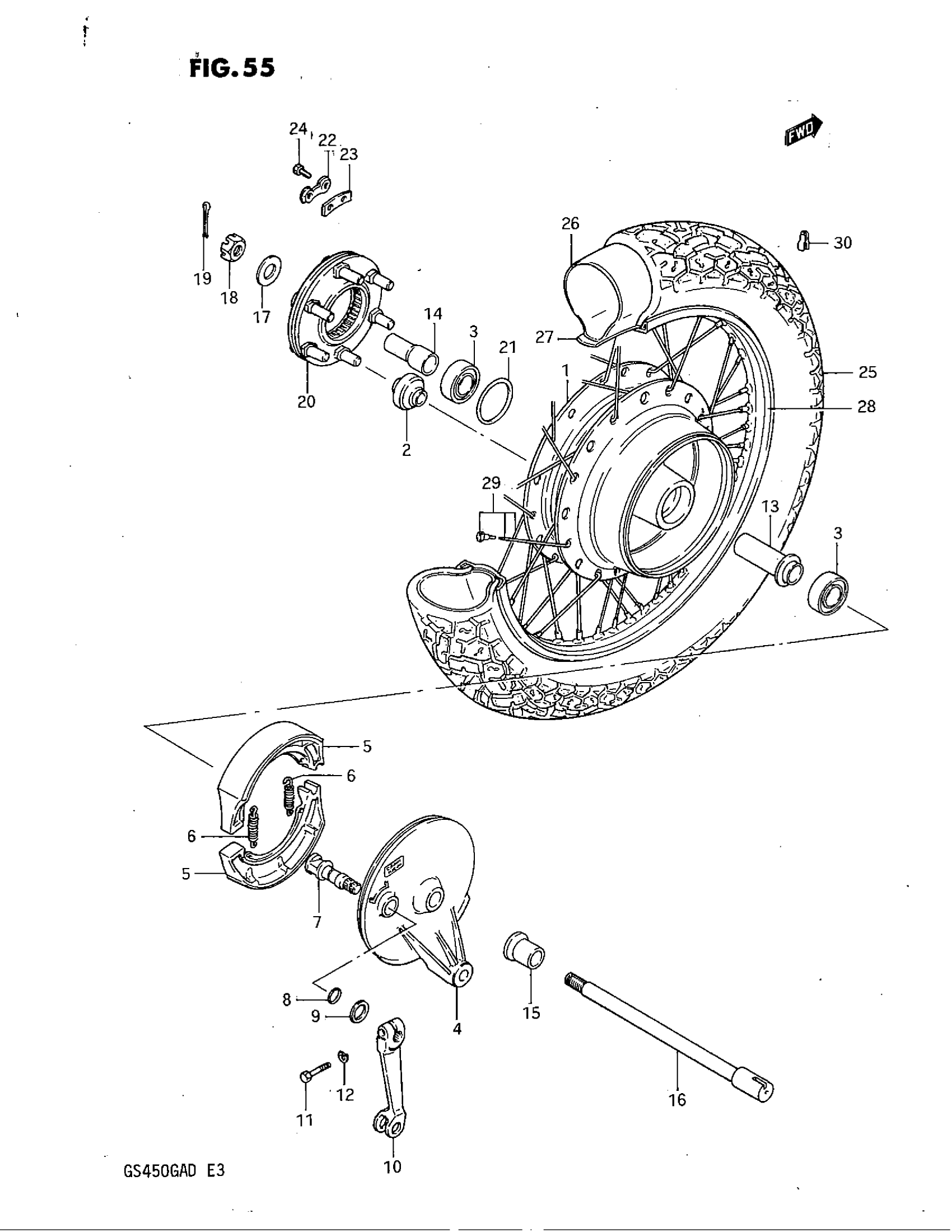

Suzuki GS450GA (1983) REAR WHEEL Diagram

#

Description
Price

1

HUB SET, REAR WHEEL | Includes Item(s) 2

64100-44811

Unavailable

2

BUSHING

64650-44500

Unavailable

3

BEARING

08143-63037

$22.58

4

PANEL

64210-44060

Unavailable

5

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

Unavailable

6

SPRING

55420-30000

$4.48

7

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

8

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

9

WASHER This part replaces 09160-15001.

09160-15048

$2.56

10

LEVER, BRAKE CAM

64451-44001

Unavailable

11

BOLT This part replaces 01107-06258.

01500-06257

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

SPACER, BEARING

64730-44500

Unavailable

14

SPACER, LH This part replaces 64772-34200.

64772-34201

$23.07

15

SPACER, AXLE, RH

64741-44500

Unavailable

16

AXLE, REAR

64711-34200

Unavailable

17

WASHER

09160-16025

Unavailable

18

NUT

09141-16001

Unavailable

19

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

20

JOINT ASSY, DRIVEN This part replaces 64680-44500.

64680-44501

Unavailable

21

O RING

09280-65003

$3.72

22

WASHER

09169-06030

$3.15

23

THRUST WASHER

64677-45110

$2.92

24

BOLT

09119-06049

$1.56

25

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-44510.

65100-38330

Unavailable

25

TIRE, REAR (4,60S16) BS | BS This part replaces 65100-44530.

65100-38330

Unavailable

26

TUBE, INNER | IRC

65200-37300

Unavailable

26

TUBE, INNER REAR | BS This part replaces 65200-37320.

65200-37300

Unavailable

27

PROTECTER | IRC

65261-37300

Unavailable

27

PROTECTER | BS

65261-37320

Unavailable

28

RIM (MT2.15-16)

65311-44501

Unavailable

29

SPOKE SET

65320-44501

Unavailable

30

BALANCER WHEEL (15G) | 20G This part replaces 55411-11000.

55411-26G00

$7.73

30

BALANCER WHEEL (30G) | 30G This part replaces 55412-11000.

55413-41F00

$7.50
