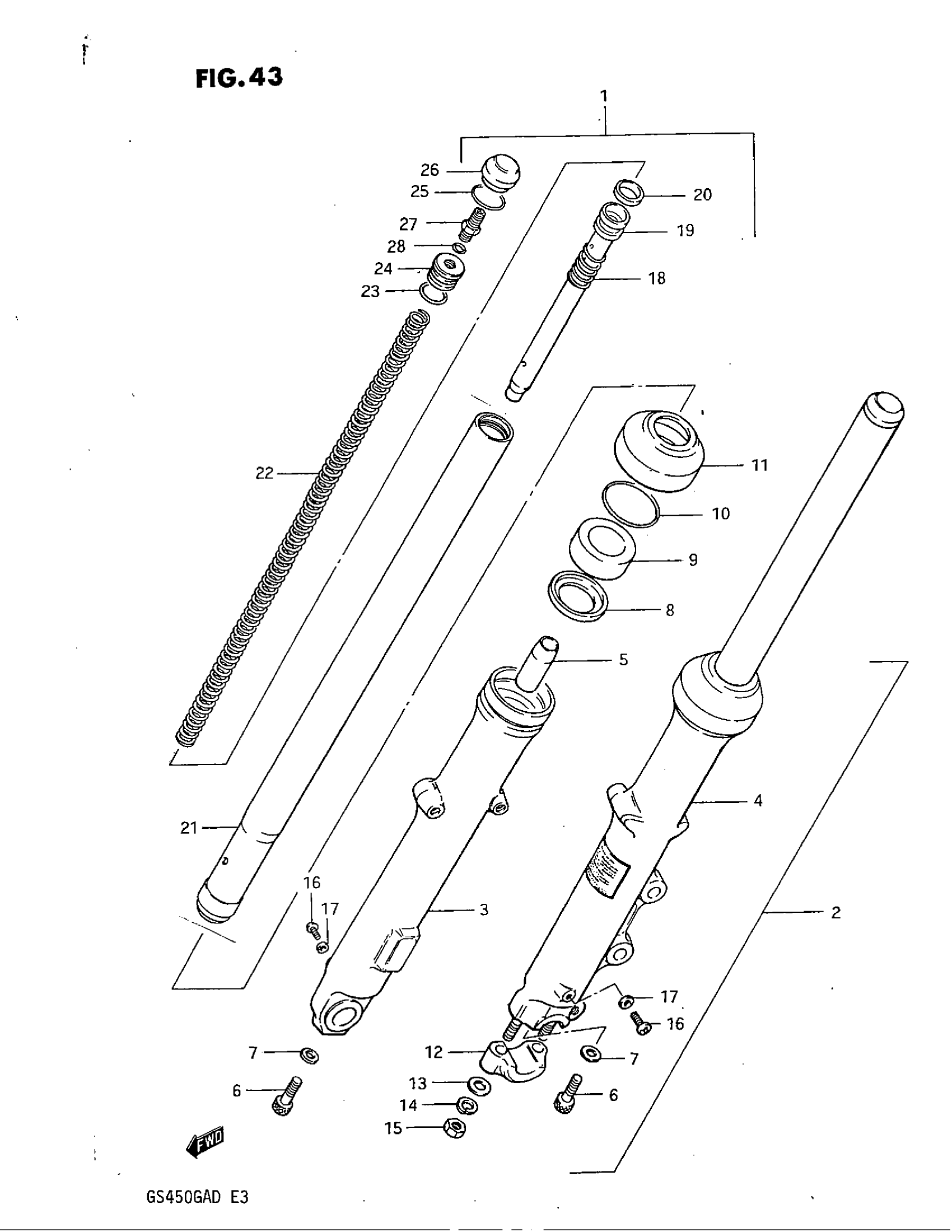

Suzuki GS450GA (1983) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-44500

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 28

51104-44500

Unavailable

3

OUTER TUBE RH

51130-44500

Unavailable

4

OUTER TUBE LH

51140-44500

Unavailable

5

.PIECE, OIL LOCK

51195-48000

Unavailable

6

BOLT

51147-48130

$4.34

7

O RING This part replaces 51148-31030.

51148-36011

$3.56

8

SPACER

51168-44030

$5.22

9

OIL SEAL This part replaces 51153-37310.

51153-02B00

$20.06

10

RING, OIL SEAL STOPPER This part replaces 51156-11420.

51156-02B00

$5.36

11

DUST SEAL

51571-37310

$20.15

12

HOLDER, AXLE

51132-31030

Unavailable

13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

NUT

09140-08008

$1.49

16

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

17

GASKET

51183-33030

Unavailable

18

SPRING

51177-36030

Unavailable

19

CYLINDER

51146-44500

Unavailable

20

RING, PISTON

51196-33130

$8.12

21

INNER TUBE

51110-44500

Unavailable

22

SPRING

51171-44500

Unavailable

23

O RING

51181-33131

$4.68

24

SEAT SPRING

51172-44170

Unavailable

25

RING STOPPER

51169-48500

$3.37

26

CAP

51189-44170

Unavailable

27

VALVE, AIR

51293-45440

Unavailable

28

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49
