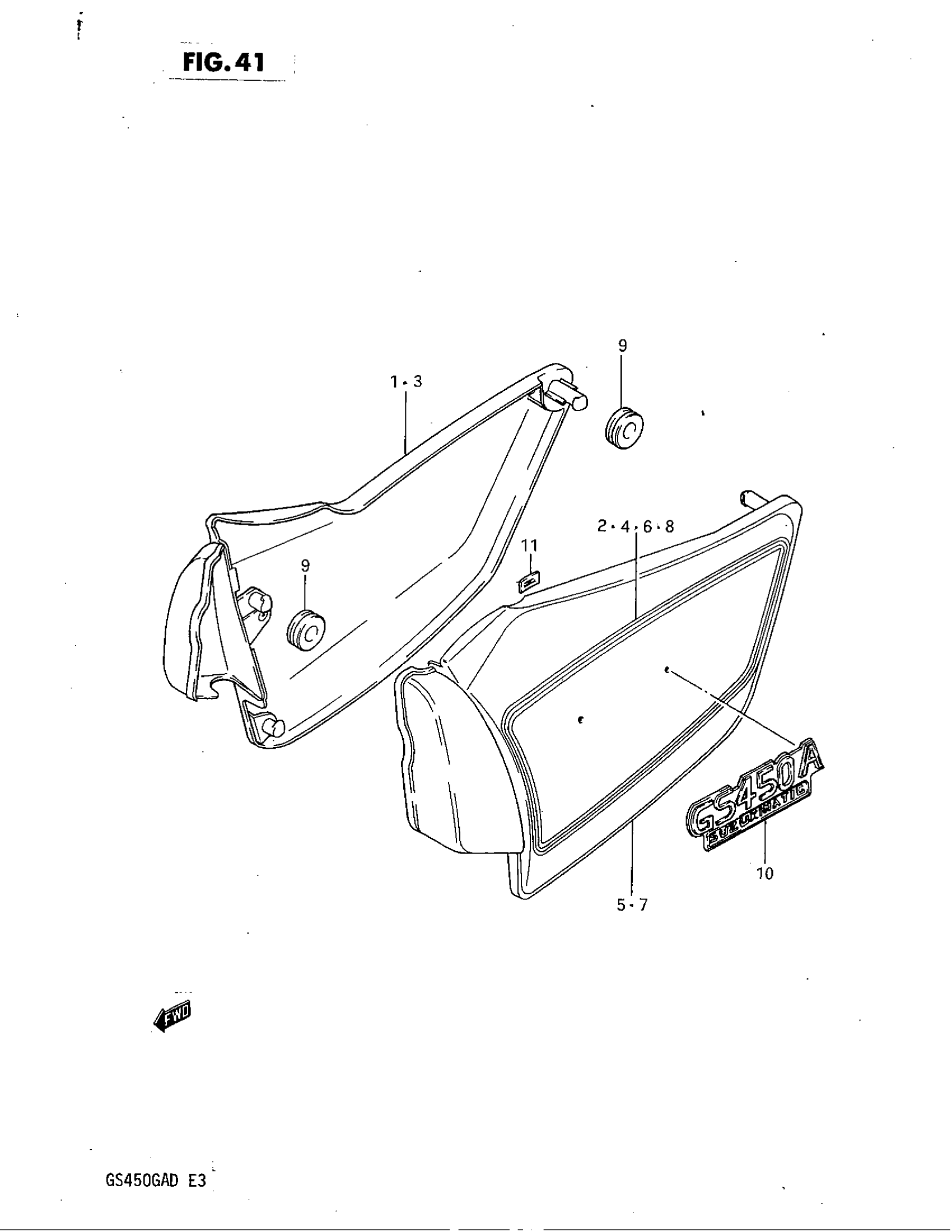

Suzuki GS450GA (1983) FRAME COVER (MODEL Z) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 47110-44500-019.

47110-44501

Unavailable

2

TAPE SET, RH

68130-44500-70G

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 47110-44500-03F.

47110-44501

Unavailable

4

TAPE SET, RH

68130-44500-81R

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 47210-44500-019.

47210-44500

Unavailable

6

TAPE SET, LH

68140-44500-70G

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 47210-44500-03F.

47210-44500

Unavailable

8

TAPE SET, LH

68140-44500-81R

Unavailable

9

CUSHION, FRONT

09320-08018

$3.04

10

EMBLEM

68131-44510

Unavailable

11

NUT

09148-03002

$2.15
