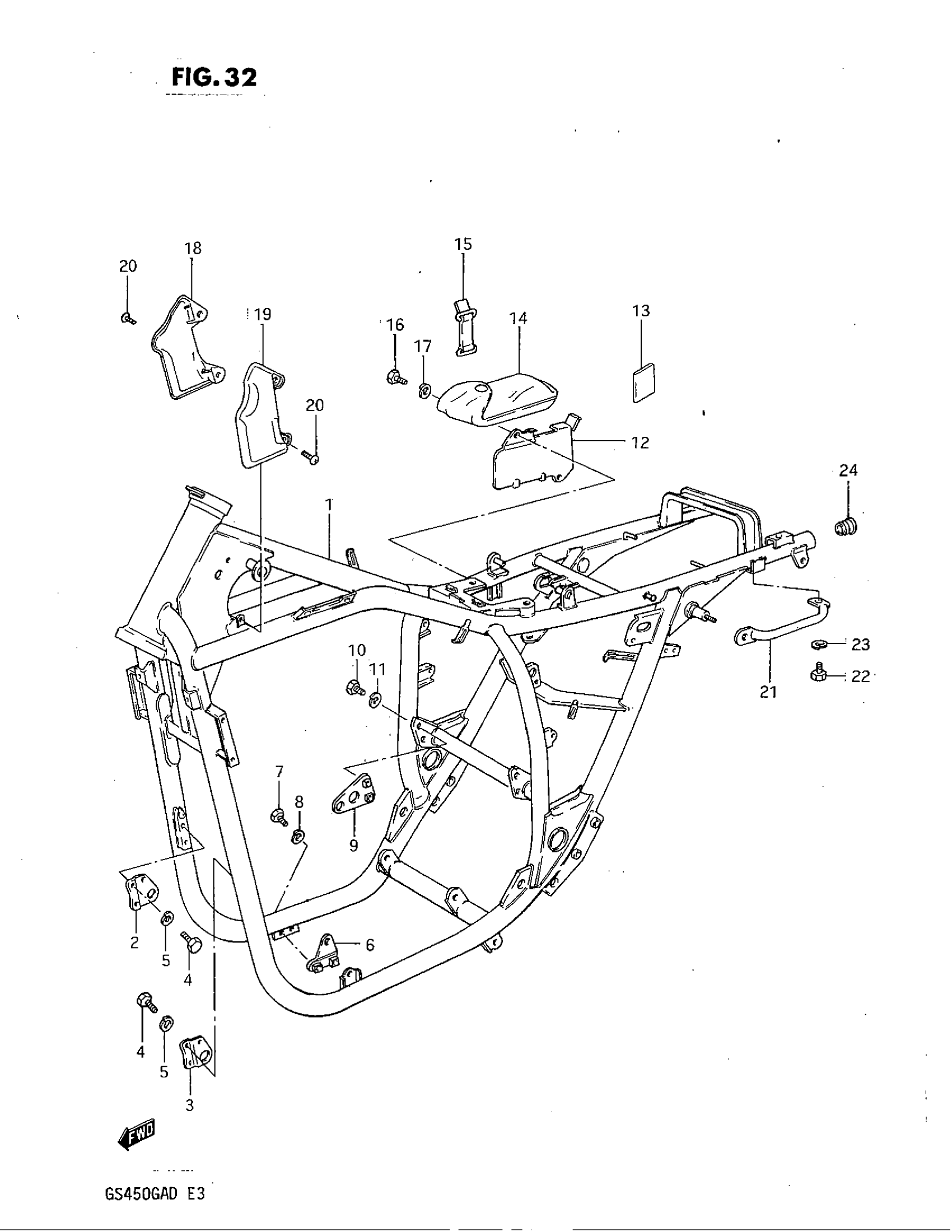

Suzuki GS450GA (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-44500-019

Unavailable

2

PLATE, NO.1 RH (BLACK)

41911-44500-019

Unavailable

3

PLATE, NO.1 LH (BLACK)

41921-44500-019

Unavailable

4

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

PLATE, NO.2 RH (BLACK)

41920-44110-019

Unavailable

7

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

PLATE, NO.4 RH (BLACK)

41970-44500-019

Unavailable

10

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

HOLDER, TOOL This part replaces 47430-44400.

47430-44401

Unavailable

13

CUSHION

33651-37000

$4.48

14

TOOL SET This part replaces 09800-06800.

09800-06801

Unavailable

15

BAND This part replaces 09462-00072.

09462-00094

$3.16

16

BOLT This part replaces 01107-06108.

01500-06107

$2.06

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

COVER, FRAME HEAD RH

51876-44500

Unavailable

19

COVER, FRAME HEAD LH

51886-44500

Unavailable

20

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

21

GRIP, FRAME HANDLE

41610-44500

Unavailable

22

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

CAP, FRAME REAR

09250-22002

$1.99
