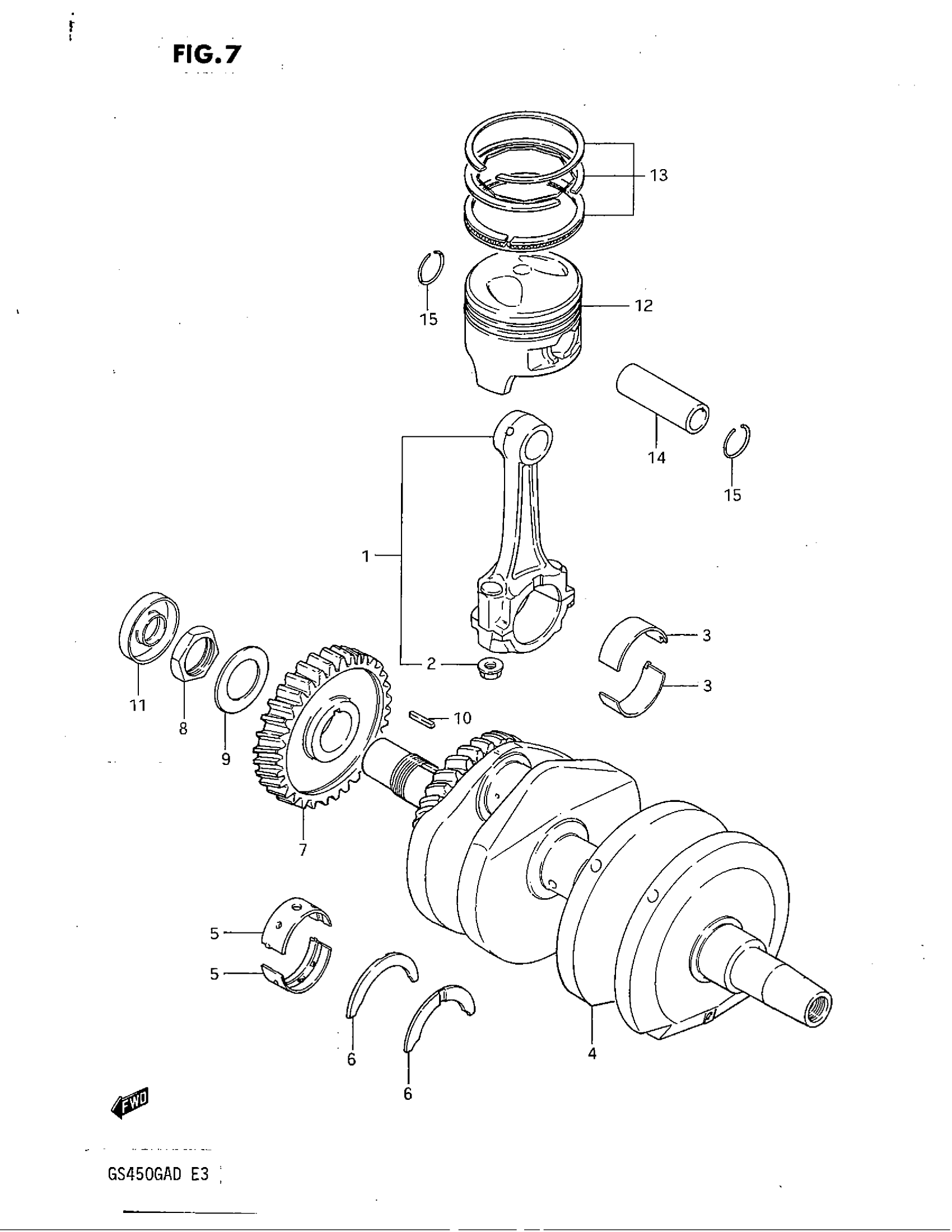

Suzuki GS450GA (1983) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-44500.

12160-44101

$163.57

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-44501-010.

12164-01D01-0A0

$17.65

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-44501-020.

12164-01D01-0B0

$17.65

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-44501-030.

12164-01D01-0C0

$17.32

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-44501-040.

12164-01D01-0D0

$17.65

3

BEARING, CRANK PIN (US:0.25) | OPT

12164-44100-025

$15.98

3

BEARING, CRANK PIN (US:0.50) | OPT

12164-44100-050

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 12220-44501.

12220-44502

Unavailable

5

BEARING, CRANKSHAFT (GREEN)

12229-44500-010

Unavailable

5

BEARING, CRANKSHAFT (BLACK)

12229-44500-020

Unavailable

5

BEARING, CRANKSHAFT (BROWN)

12229-44500-030

Unavailable

5

BEARING, CRANKSHAFT (YELLOW)

12229-44500-040

Unavailable

5

BEARING, CRANKSHAFT (US:0.25) | OPT

12229-44100-025

Unavailable

5

BEARING, CRANKSHAFT (US:0.50) | OPT

12229-44100-050

Unavailable

6

BEARING, THRUST (GREEN)

12228-44104

Unavailable

6

BEARING, THRUST (BLACK)

12228-44105

Unavailable

6

BEARING, THRUST (NOT MARKER)

12228-44106

$10.07

6

BEARING, THRUST (BROWN)

12228-44107

Unavailable

6

BEARING, THRUST (YELLOW)

12228-44108

Unavailable

6

BEARING, THRUST (WHITE)

12228-44109

Unavailable

6

BEARING, THRUST (RED)

12228-44110

Unavailable

7

GEAR, PRIMARY DRIVE (NT:28)

21111-44500

Unavailable

8

NUT

09140-24007

$3.89

9

WASHER

09164-25001

Unavailable

10

KEY

08341-31059

$2.48

11

OIL SEAL, RH (22X40X8) This part replaces 09283-22013.

09283-22015

$9.72

12

PISTON (STD) This part replaces 12111-44110.

12111-44100

Unavailable

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44110-050.

12103-44810-050

Unavailable

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-44110-100.

12103-44810-100

Unavailable

13

PISTON RING SET (STD) This part replaces 12140-44140.

12140-44110

Unavailable

13

PISTON RING SET (OS:0.5) | OPT

12140-44140-050

Unavailable

13

PISTON RING SET (OS:1.0) | OPT This part replaces 12140-44140-100.

12140-44111-100

Unavailable

14

PIN, PISTON This part replaces 12151-92201.

12151-45501

$17.37

15

CIRCLIP

09381-18002

$1.67
