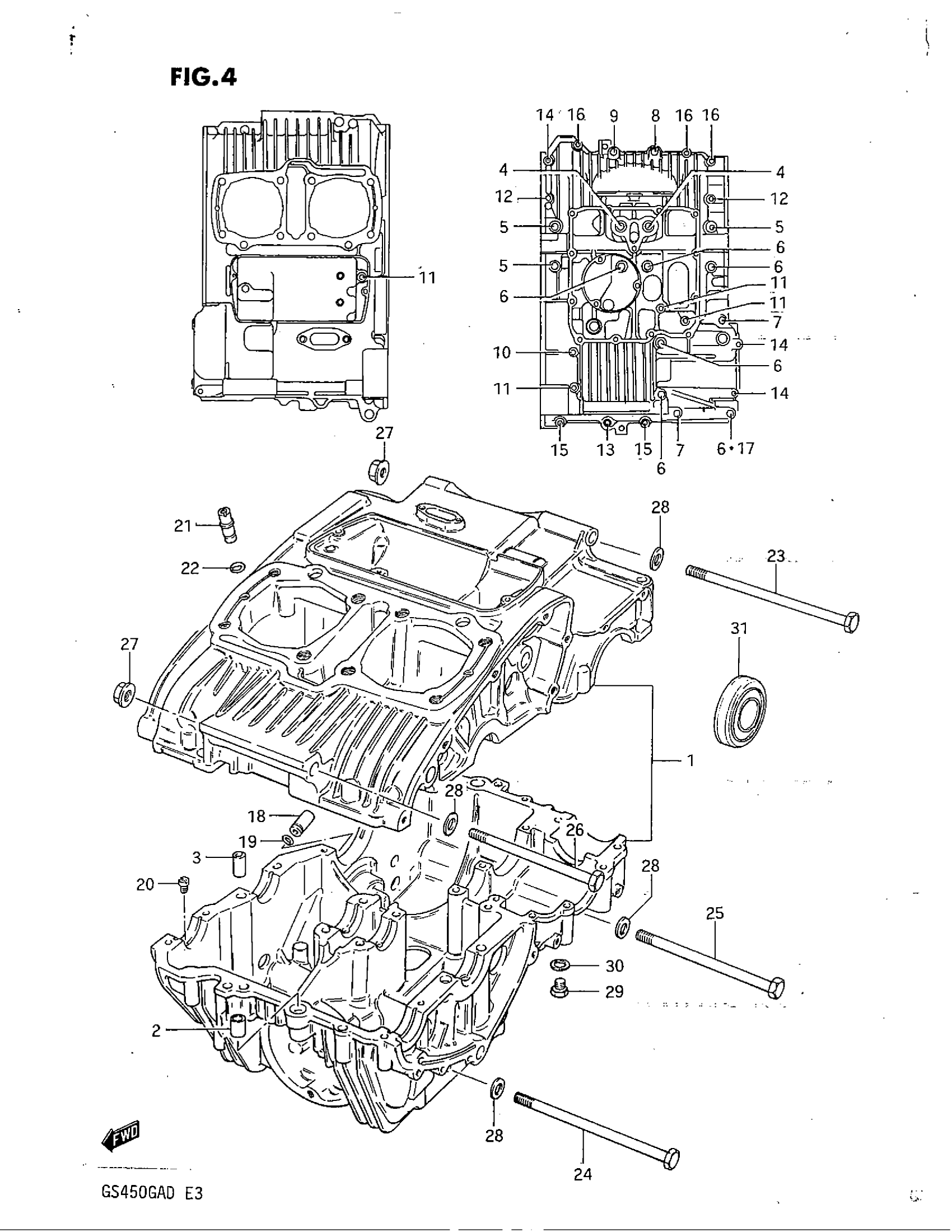

Suzuki GS450GA (1983) CRANKCASE Diagram

CRANKCASE SET | MODEL Z This part replaces 11300-44871.

11300-44872

Unavailable

CRANKCASE SET | MODEL D; Includes Item(s) 2 - 22

11300-44872

Unavailable

PIN

09206-13004

$2.40

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

BOLT This part replaces 09106-08014.

07130-0870B

$5.37

BOLT (8X125) This part replaces 09103-08078.

09103-08106

Unavailable

BOLT (8X110) This part replaces 09103-08024.

09103-08134

$3.40

BOLT This part replaces 01517-08708.

01550-08707

$3.91

BOLT This part replaces 01517-08658.

01550-08657

$4.68

BOLT, MUF SPRT,RR This part replaces 01517-08458.

01550-08457

$4.00

BOLT (6X125)

09103-06033

$3.91

BOLT (6X105) This part replaces 09103-06025.

09103-06067

$2.48

BOLT This part replaces 01517-06908.

01550-06907

$4.60

BOLT This part replaces 01517-06708.

01550-06707

$4.30

BOLT This part replaces 01517-06658.

01550-06657

$4.17

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

CHECK VALVE, OIL This part replaces 16710-44501.

16430-44501

Unavailable

O RING

09280-04003

Unavailable

JET, BALANCER SHAFT

09493-24005

Unavailable

JET, OIL GALLERY CYLINDER

09493-24009

Unavailable

O RING, OIL GALLERY JET This part replaces 09280-04002.

09280-04004

$1.91

BOLT (10x220)

09100-10170

Unavailable

BOLT (10x210)

09100-10033

Unavailable

BOLT This part replaces 09100-10092.

41189-17X00

Unavailable

BOLT 10X125 This part replaces 09100-10051.

09100-10274

$7.15

NUT This part replaces 08319-31105.

08319-3110A

$2.73

WASHER This part replaces 08322-11108.

08322-01107

$2.15

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

GASKET

09168-14004

$1.83

PLUG

09241-52004

Unavailable
