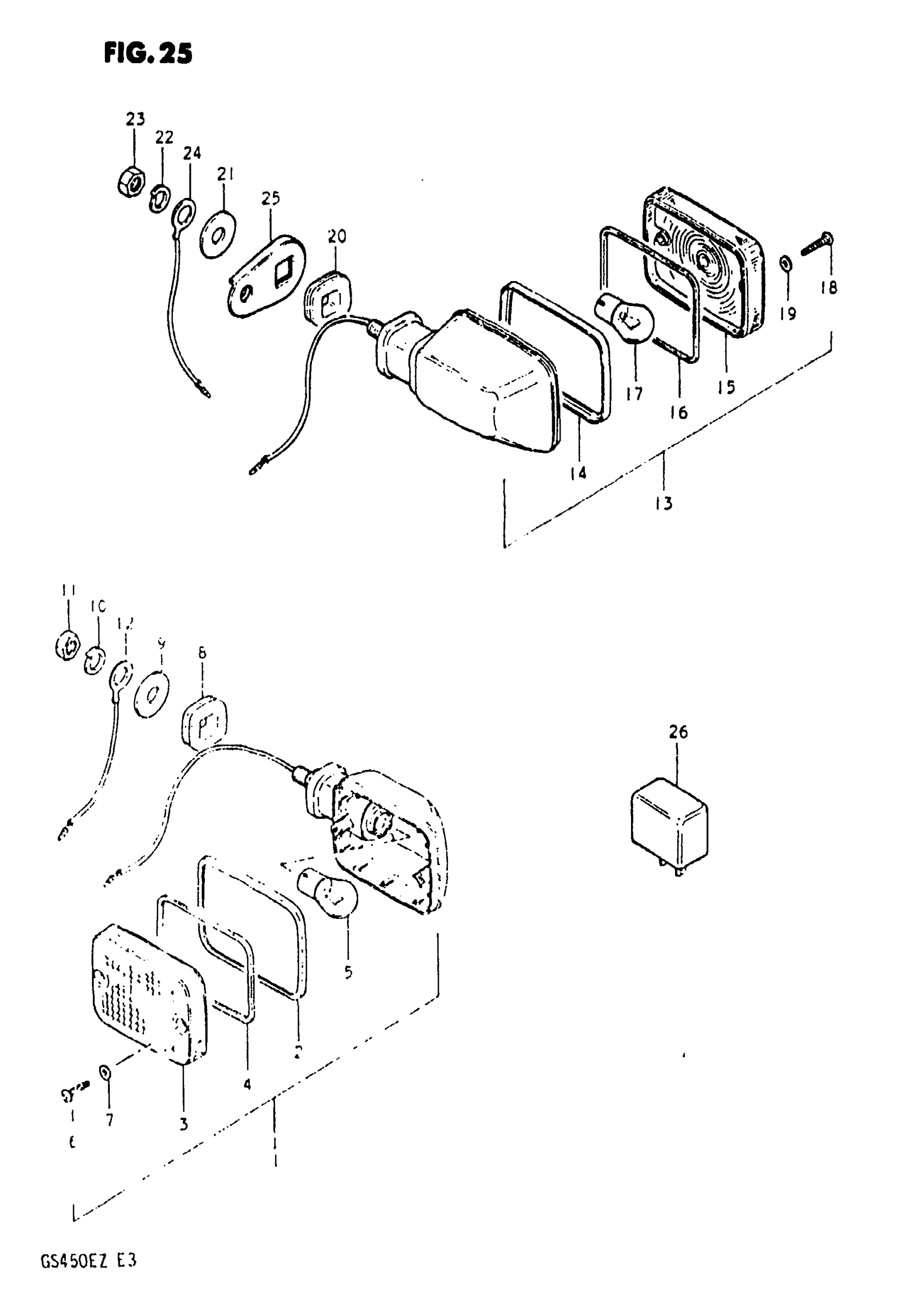

Suzuki GS450ET (1982) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T,X This part replaces 35601-44130.

35601-44184-999

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Z; Includes Item(s) 2 - 7 This part replaces 35601-44132.

35601-44184-999

Unavailable

2

RIM

35611-49230

Unavailable

3

LENS | MODEL T,X This part replaces 35612-49230.

35612-49231

$20.03

3

LENS | MODEL Z

35612-49231

$20.03

4

GASKET

35613-49230

$6.08

5

BULB (12V,23W)

09471-12006

$3.64

6

SCREW This part replaces 03211-04208.

03211-04207

$0.49

7

GASKET

35627-43010

$2.29

8

CUSHION

09320-15002

$3.76

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

11

NUT This part replaces 08310-12108.

08310-00107

$2.19

12

LEAD WIRE, EARTH

36660-33000

$4.26

13

NO DESCRIPTION AVAILABLE | MODEL T, X This part replaces 35601-44130.

35601-44184-999

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL Z; Includes Item(s) 14 - 19 This part replaces 35601-44132.

35601-44184-999

Unavailable

14

RIM

35611-49230

Unavailable

15

LENS | MODEL T,X This part replaces 35612-49230.

35612-49231

$20.03

15

LENS | MODEL Z

35612-49231

$20.03

16

GASKET

35613-49230

$6.08

17

BULB (12V,23W)

09471-12006

$3.64

18

SCREW This part replaces 03211-04208.

03211-04207

$0.49

19

GASKET

35627-43010

$2.29

20

CUSHION

09320-15002

$3.76

21

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

23

NUT This part replaces 08310-12108.

08310-00107

$2.19

24

LEAD WIRE, EARTH

36660-33000

$4.26

25

BRACKET, REAR

41580-32201

Unavailable

26

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$90.45
