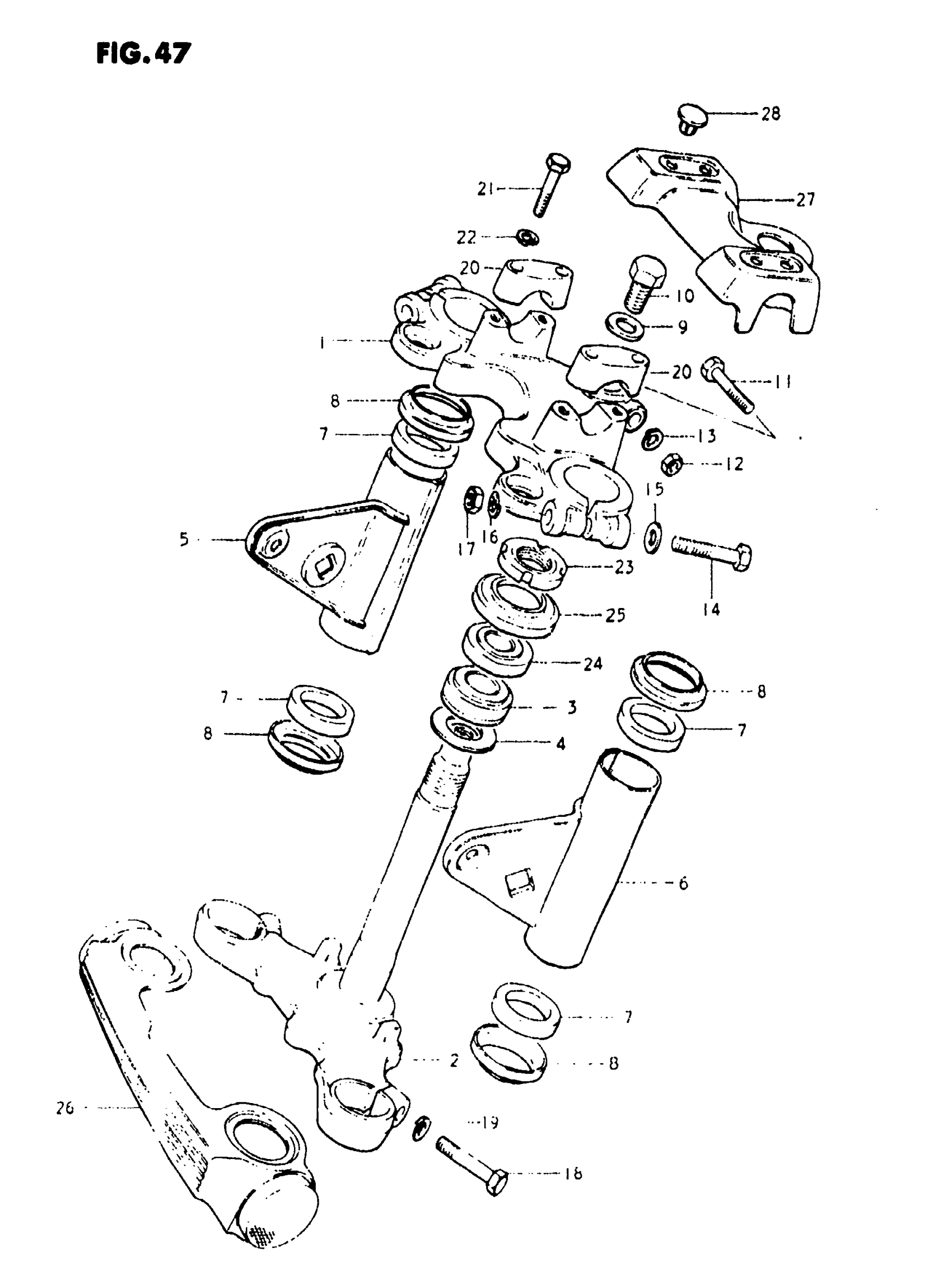

Suzuki GS450ET (1982) STEERING STEM (MODEL T Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-44100-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-44811.

51400-44833

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH

51530-44100-291

Unavailable

6

BRACKET, HEADLAMP LH

51540-44100-291

Unavailable

7

CUSHION, HEADLAMP BRACKET

51556-44100

Unavailable

8

CAP

51555-44100

Unavailable

9

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

10

BOLT

09104-12013

$4.11

11

BOLT, LH This part replaces 01527-08507.

01550-08507

$3.55

12

NUT This part replaces 08310-12088.

08310-00087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

LOCK WASHER | GS450ET, GS450EX This part replaces 08321-21108.

08321-01107

$1.84

17

NUT | GS450ET, GS450EX This part replaces 08310-11108.

08310-00107

$2.19

18

BOLT This part replaces 01107-10408.

01500-10407

$3.55

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

CLAMP, HANDLEBAR UPPER

56211-27200-291

$17.90

21

BOLT This part replaces 09106-08004.

07130-0835B

$4.60

22

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

NUT, STEERING STEM

51631-28000

$17.37

24

BEARING, UPPER

09265-25008

Unavailable

25

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

26

COVER, FRONT FORK

51870-47000

Unavailable

27

PAD, HANDLE

56170-44100

Unavailable

28

CAP

09250-06002

$1.78
