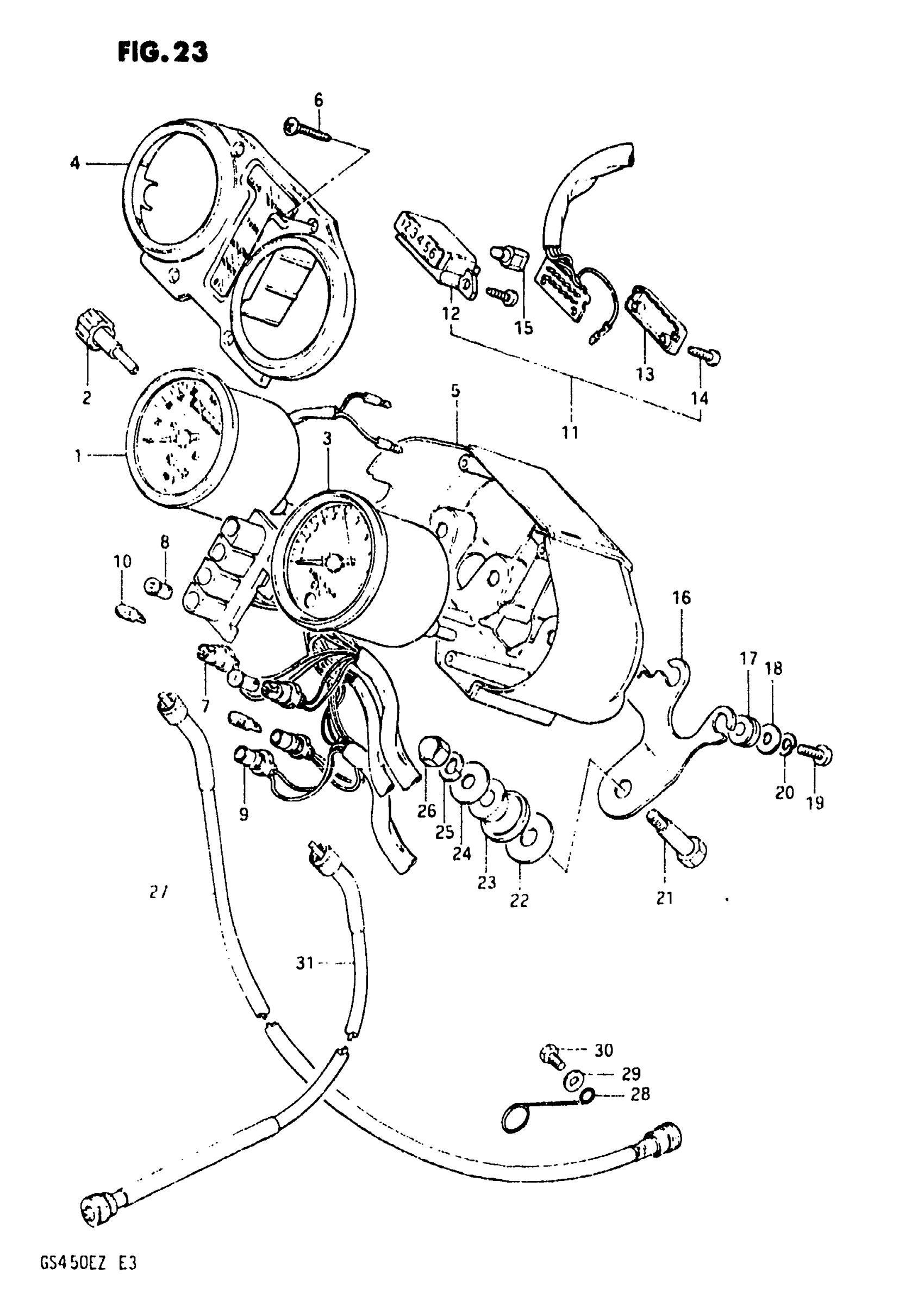

Suzuki GS450ET (1982) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MILE & KILO SCALE; Includes Item(s) 2 This part replaces 34110-44110.

34110-44130

Unavailable

2

KNOB

34124-44100

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 34210-44100.

34210-44121

Unavailable

4

HOOD, METER

34151-44100

Unavailable

5

CASE, METER

34152-44100

Unavailable

6

SCREW

03121-04208

Unavailable

7

SOCKET | MODEL T,X

34173-44100

Unavailable

8

BULB (12V, 3.4W) | MODEL T,X

09471-12001

$1.65

9

SOCKET | MODEL X,Z

34173-44101

Unavailable

10

BULB (12V,3.4W) | MODEL X,Z

09471-12028

$1.99

11

INDICATOR, GEAR POSITION | Includes Item(s) 12 - 15 This part replaces 36450-44100.

36450-47751

Unavailable

12

CASE, GEAR INGICATOR

36452-45100

Unavailable

13

COVER, LOWER

36454-45100

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

15

BULB

09471-12071

$7.20

16

NO DESCRIPTION AVAILABLE | MODEL T,X This part replaces 34950-44100.

34950-37352

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 34950-44101.

34950-37352

Unavailable

17

CUSHION

34189-44100

Unavailable

18

WASHER (4.5X16X1.2) This part replaces 34181-44100.

09160-04026

$2.05

19

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

20

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

21

BOLT This part replaces 09111-08040.

09111-08031

Unavailable

22

WASHER This part replaces 08322-11108.

08322-01107

$2.15

23

CUSHION | MODEL T This part replaces 34956-31000.

34956-31001

$4.37

23

CUSHION | MODEL X,Z

34956-31001

$4.37

24

WASHER This part replaces 09160-08047.

09160-08130

$2.03

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

NUT This part replaces 08313-11088.

08313-10087

$2.28

27

CABLE ASSY,SPEE | MODEL T This part replaces 34910-45110.

34910-45115

$26.55

27

CABLE ASSY,SPEE | MODEL X This part replaces 34910-45112.

34910-45115

$26.55

27

CABLE ASSY,SPEE | MODEL Z This part replaces 34910-45113.

34910-45115

$26.55

28

CLAMP

34938-45100

$6.57

29

WASHER This part replaces 08322-21068.

08322-01067

$2.13

30

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

31

CABLE,TACHOMETE | MODEL T This part replaces 34940-44035.

34940-37312

$51.10

31

CABLE ASSY,TACH | MODEL X,Z This part replaces 34940-44111.

34940-05312

$40.40
