1982 Suzuki GS450ET Signal Generator Diagram

← All diagrams

Find the part on the Signal Generator diagram for your 1982 Suzuki GS450ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

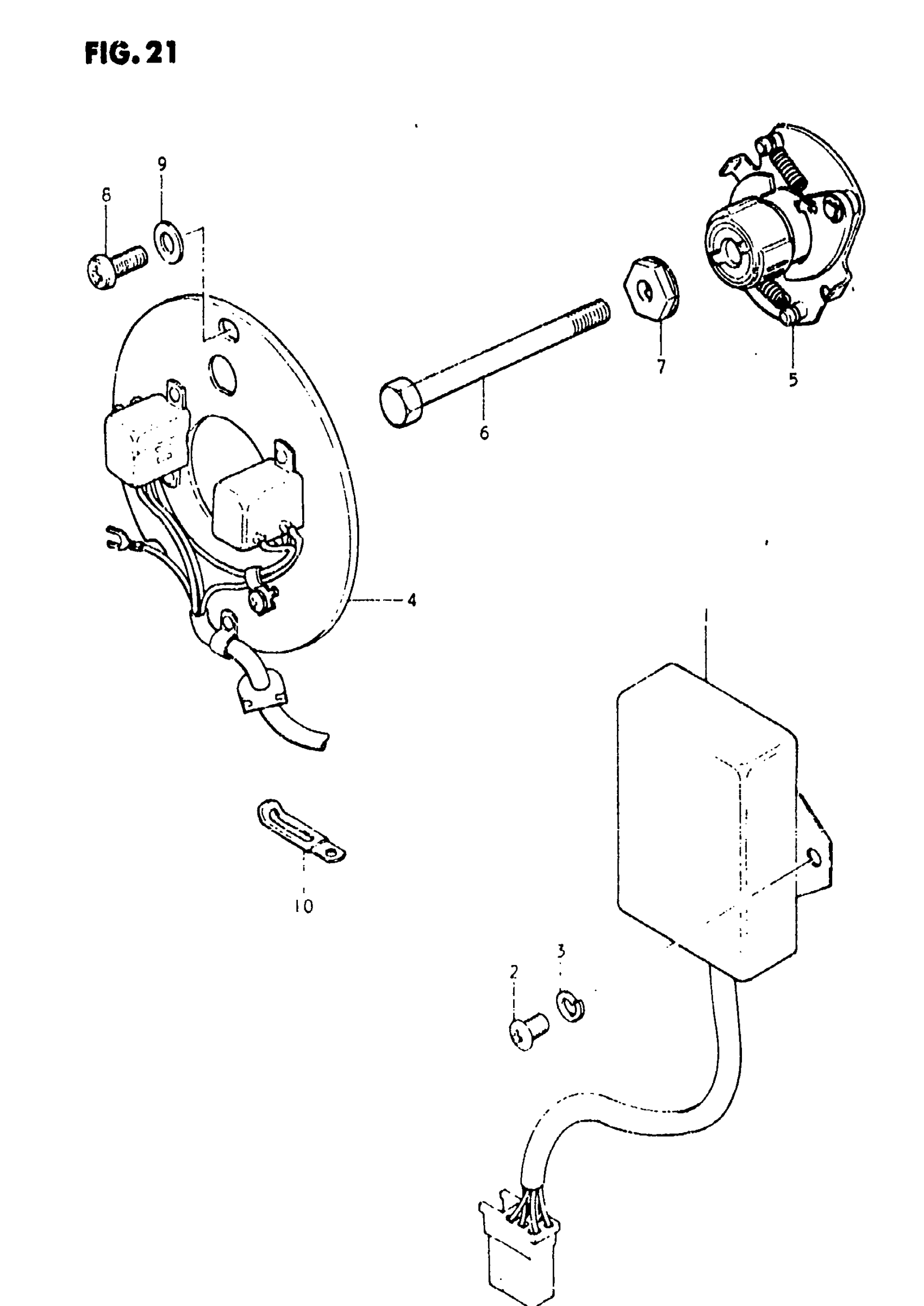

1982 Suzuki GS450ET Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION UNIT

32900-47020

1
Out of stock

2

2

$1.55

In stock

3

2

$2.28

In stock

4

GENERATOR ASSY, This part replaces 33110-44120.

33110-44X50

1
Out of stock

5

GOVERNOR ASSY, ADVANCE

33120-44120

1
Out of stock

6

1

$2.31

In stock

7

WASHER

33465-44100

1
Out of stock

8

SCREW

09125-05024

1
Out of stock

9

1

$2.33

In stock

10

3

$1.86

In stock
