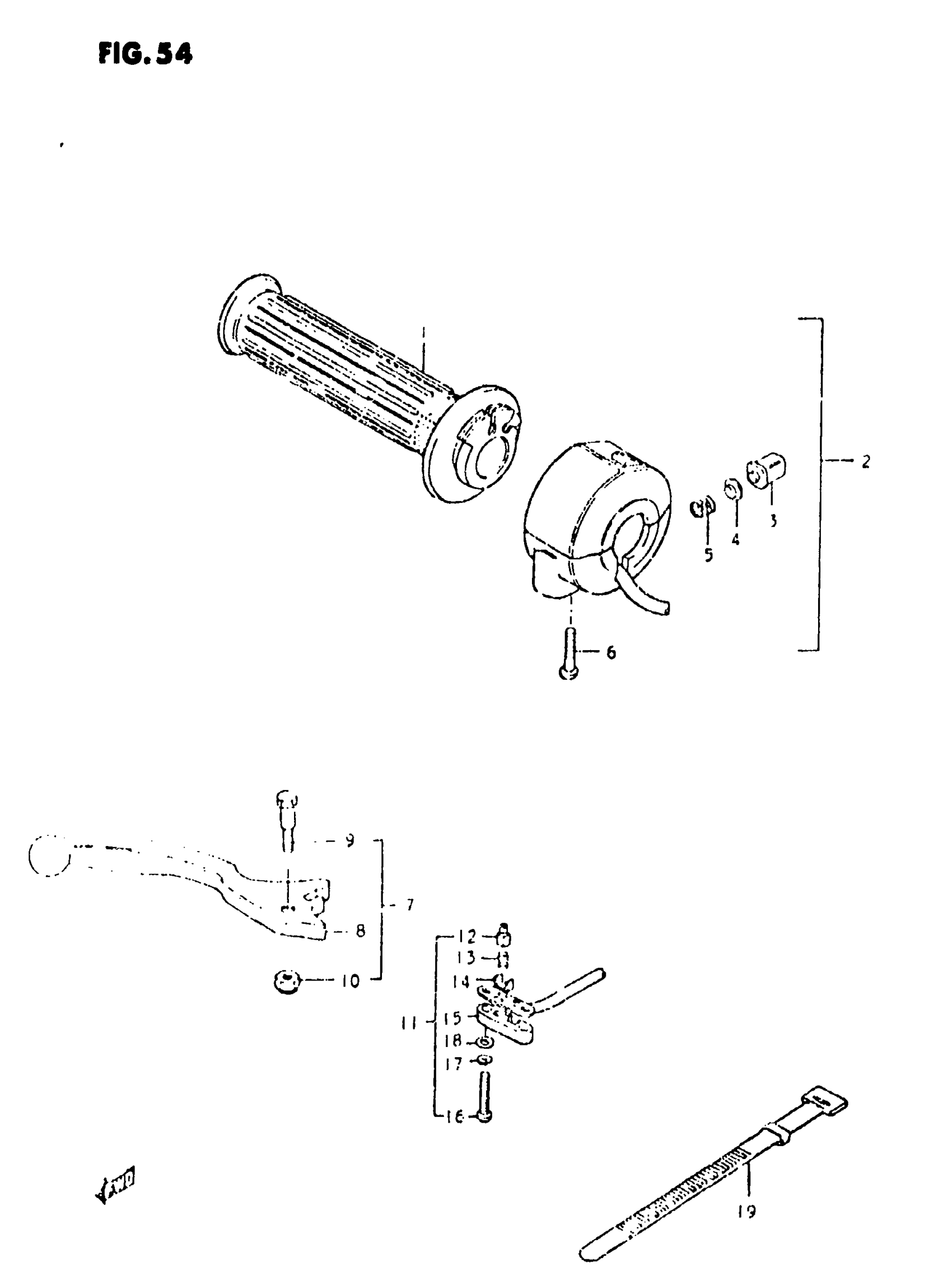

Suzuki GS450ET (1982) RIGHT HANDLE SWITCH (GS450ST Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-44100.

57110-49501

$32.02

2

GRIP ASSY, THROTTLE | Includes Item(s) 3 - 6

57100-47500

Unavailable

3

BUTTON, STARTING

57371-45000

$5.10

4

CONTACT

57372-45000

$5.02

5

SPRING

57382-47500

Unavailable

6

SCREW This part replaces 02112-05258.

02112-05257

$1.49

7

LEVER, BRAKE | Includes Item(s) 8 - 10 This part replaces 57300-49101.

57420-49101

$31.26

8

LEVER, BRAKE

57420-49101

$31.26

9

BOLT

57431-18621

$9.35

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

11

SWITCH ASSY, ST | Includes Item(s) 12 - 18 This part replaces 57460-49100.

57460-45500

$33.16

12

HOLDER This part replaces 57461-18600.

57465-18601

$3.97

13

HOLDER This part replaces 57462-18600.

57465-18601

$3.97

14

HOLDER This part replaces 57463-18600.

57465-18601

$3.97

15

COVER

57481-33010

$5.50

16

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

18

WASHER This part replaces 08322-21038.

08322-01037

$1.95

19

BAND (L:120)

09407-12402

$2.80
