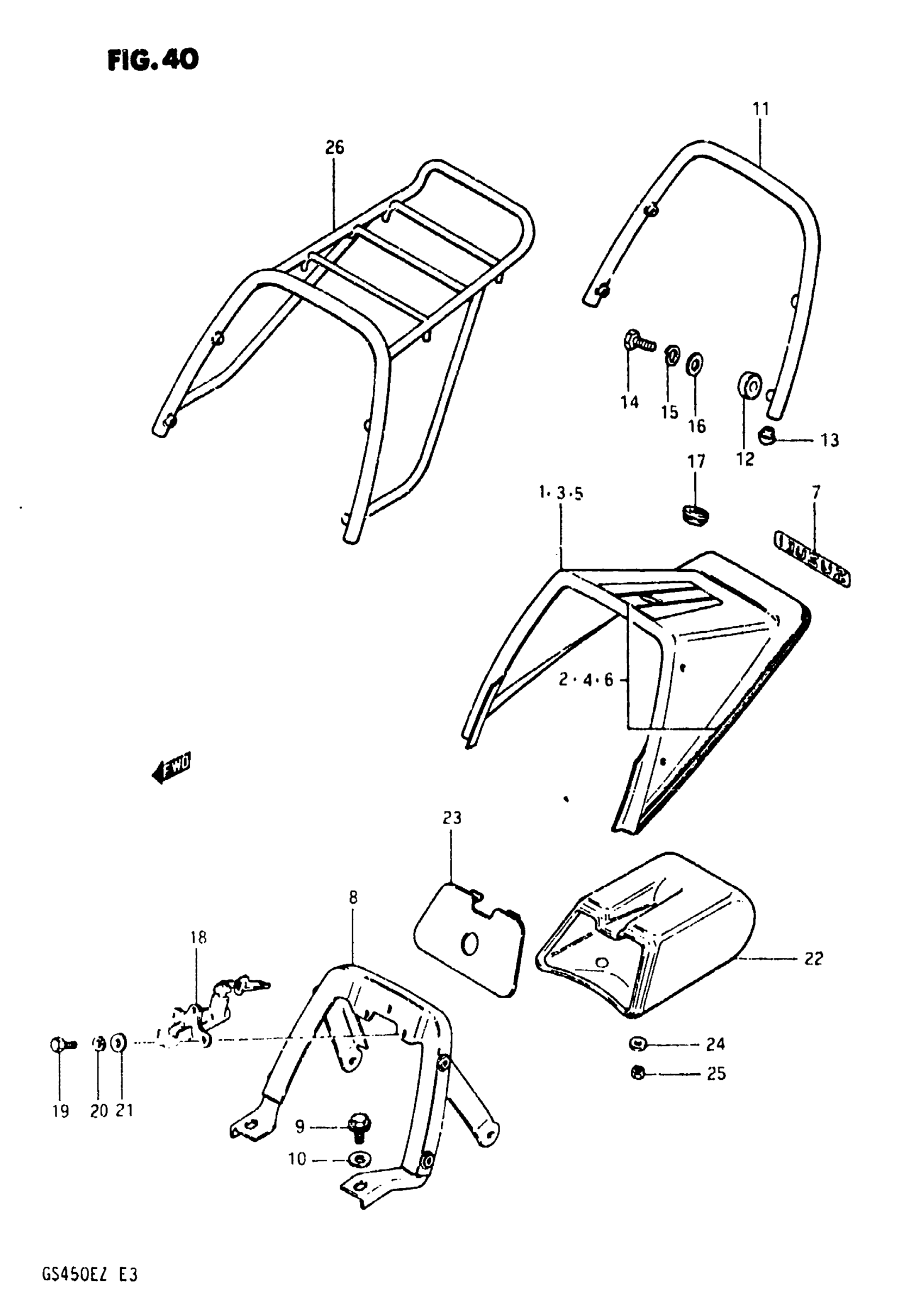

Suzuki GS450ET (1982) SEAT TAIL COVER (MODEL X) Diagram

#

Description
Price

1

TAIL COVER, SEAT (SILVER)

45511-44101-737

Unavailable

2

TAPE SET

68160-44150-75G

Unavailable

3

TAIL COVER, SEAT (BLACK) This part replaces 45511-44101-10S.

45511-44101-019

Unavailable

4

TAPE SET

68160-44150-75K

Unavailable

5

TAIL COVER, SEAT (BLACK) | GS450SX

45511-44101-019

Unavailable

6

TAPE SET | GS450SX

68160-44150-75F

Unavailable

7

EMBLEM

68166-49200-998

Unavailable

8

BRACKET, SEAT TAIL COVER This part replaces 45530-44102.

45530-44103

Unavailable

9

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

10

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

11

HANDLE, PILLION RIDER

46210-44100

Unavailable

12

CUSHION

46212-49000

Unavailable

13

END, HANDLE

46213-49000

Unavailable

14

BOLT This part replaces 01107-08308.

01500-08307

$3.04

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER This part replaces 08322-11088.

08322-01087

$2.13

17

GROMMET

45522-49200

$4.58

18

LOCK SET, SEAT This part replaces 95700-49821.

95700-49830

Unavailable

19

BOLT This part replaces 01107-06128.

01500-06127

$1.97

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

BOX, SEAT TAIL

94990-44100

Unavailable

23

LID, SEAT TAIL BOX

94992-44100

Unavailable

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

26

CARRIER, SPORTS | OPT

46310-44100

Unavailable
