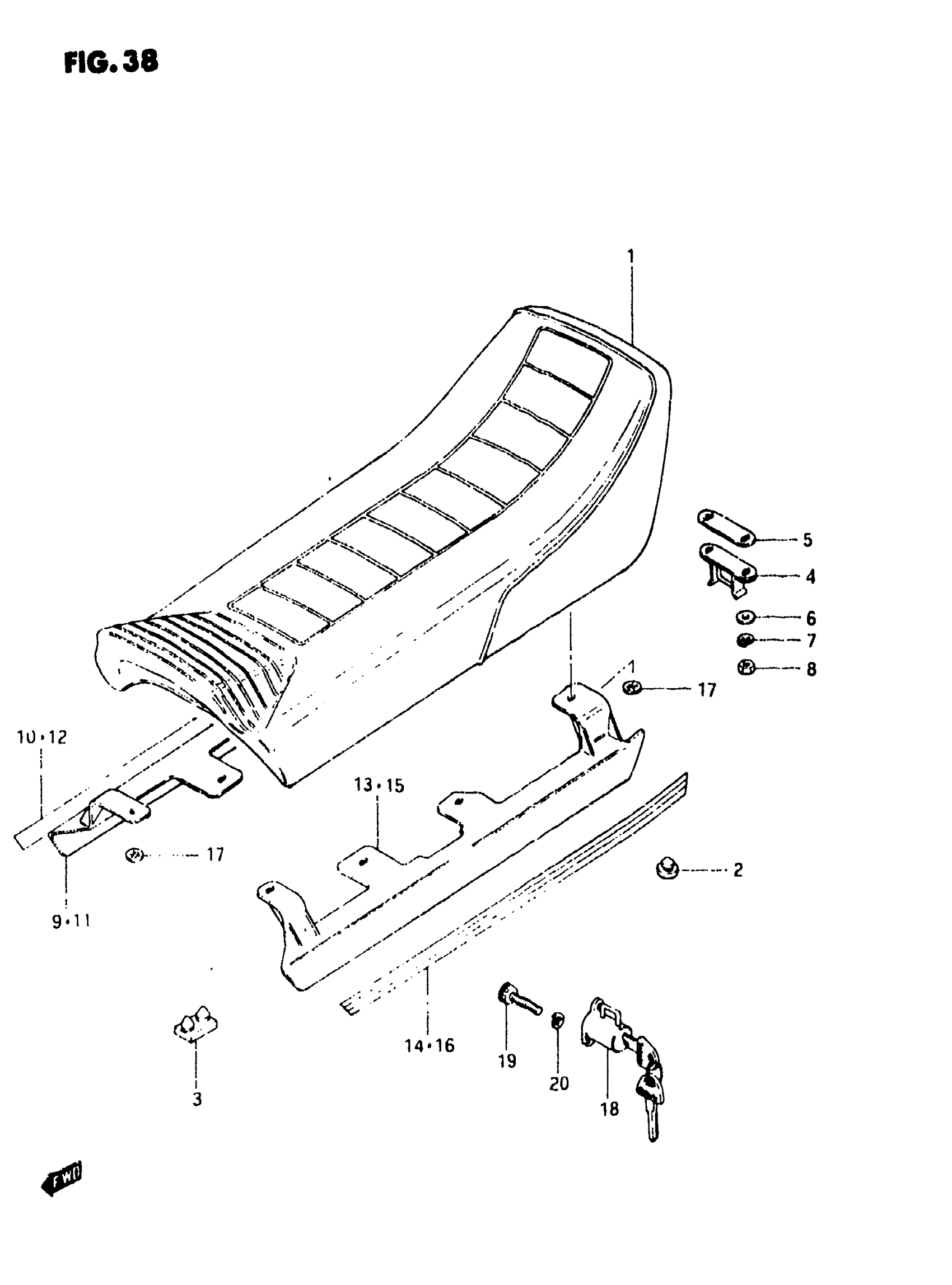

Suzuki GS450ET (1982) SEAT (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-44114-47G.

45100-44104-48G

Unavailable

2

CUSHION

09329-10001

$2.12

3

CUSHION

09321-08010

$3.85

4

STRIKER, SEAT LOCK

45210-44101

Unavailable

5

PLATE

45217-44100

Unavailable

6

WASHER This part replaces 08322-21068.

08322-01067

$2.13

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

.NUT This part replaces 08310-22068.

08310-00067

$2.13

9

NO DESCRIPTION AVAILABLE This part replaces 45191-44102-019.

45191-44102-13L

Unavailable

10

TAPE, RH

68197-44600-81H

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 45191-44102-05L.

45191-44102-13L

Unavailable

12

TAPE, RH

68197-44600-81J

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 45192-44102-019.

45192-44102

Unavailable

14

TAPE, LH

68198-44600-81H

Unavailable

15

MOULDING, LH (MAROON)

45192-44102-05L

Unavailable

16

TAPE, LH

68198-44600-81J

Unavailable

17

NUT This part replaces 09148-06005.

09148-06008

$1.49

18

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

19

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$3.21

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
