1982 Suzuki GS450ET Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Suzuki GS450ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

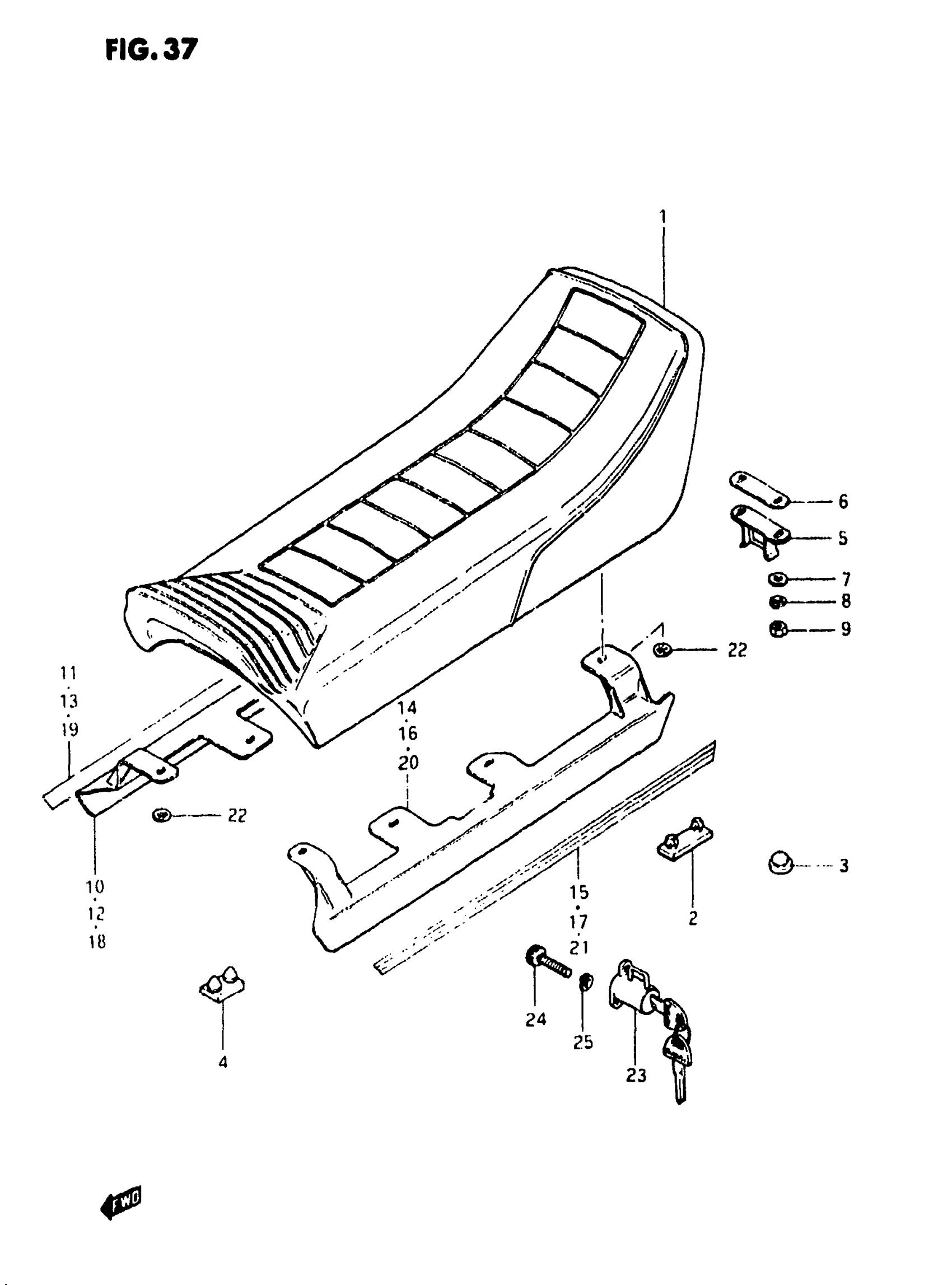

1982 Suzuki GS450ET Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | TO 45100-44113-41G WITH 09329-10001 This part replaces 45100-44112-41G.

45100-44104-48G

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 45100-44113-41G.

45100-44104-48G

1
Out of stock

2

CUSHION

09321-08009

1
Out of stock

3

2

$2.56

In stock

4

CUSHION

09321-08010

2
Out of stock

5

STRIKER, SEAT LOCK

45210-44101

1
Out of stock

6

PLATE

45217-44100

2
Out of stock

7

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

8

2

$2.28

In stock

9

.NUT This part replaces 08310-22068.

08310-00067

2
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 45191-44102-737.

45191-44102-13L

1
Out of stock

11

TAPE, RH

68197-44150-75G

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 45191-44102-10S.

45191-44102-13L

1
Out of stock

13

TAPE, RH

68197-44150-75K

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 45192-44102-737.

45192-44102

1
Out of stock

15

TAPE, LH

68198-44150-75G

1
Out of stock

16

MOULDING, LH (MAROON)

45192-44102-10S

1
Out of stock

17

TAPE, LH

68198-44150-75K

1
Out of stock

18

NO DESCRIPTION AVAILABLE | GS450SX This part replaces 45191-44102-019.

45191-44102-13L

1
Out of stock

19

TAPE, RH | GS450SX

68197-44150-75F

1
Out of stock

20

NO DESCRIPTION AVAILABLE | GS450SX This part replaces 45192-44102-019.

45192-44102

1
Out of stock

21

TAPE, LH | GS450SX

68198-44150-75F

1
Out of stock

22

NUT This part replaces 09148-06005.

09148-06008

8
Out of stock

23

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

1
Out of stock

24

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

2
Out of stock

25

2

$2.28

In stock
