1982 Suzuki GS450ET Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1982 Suzuki GS450ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

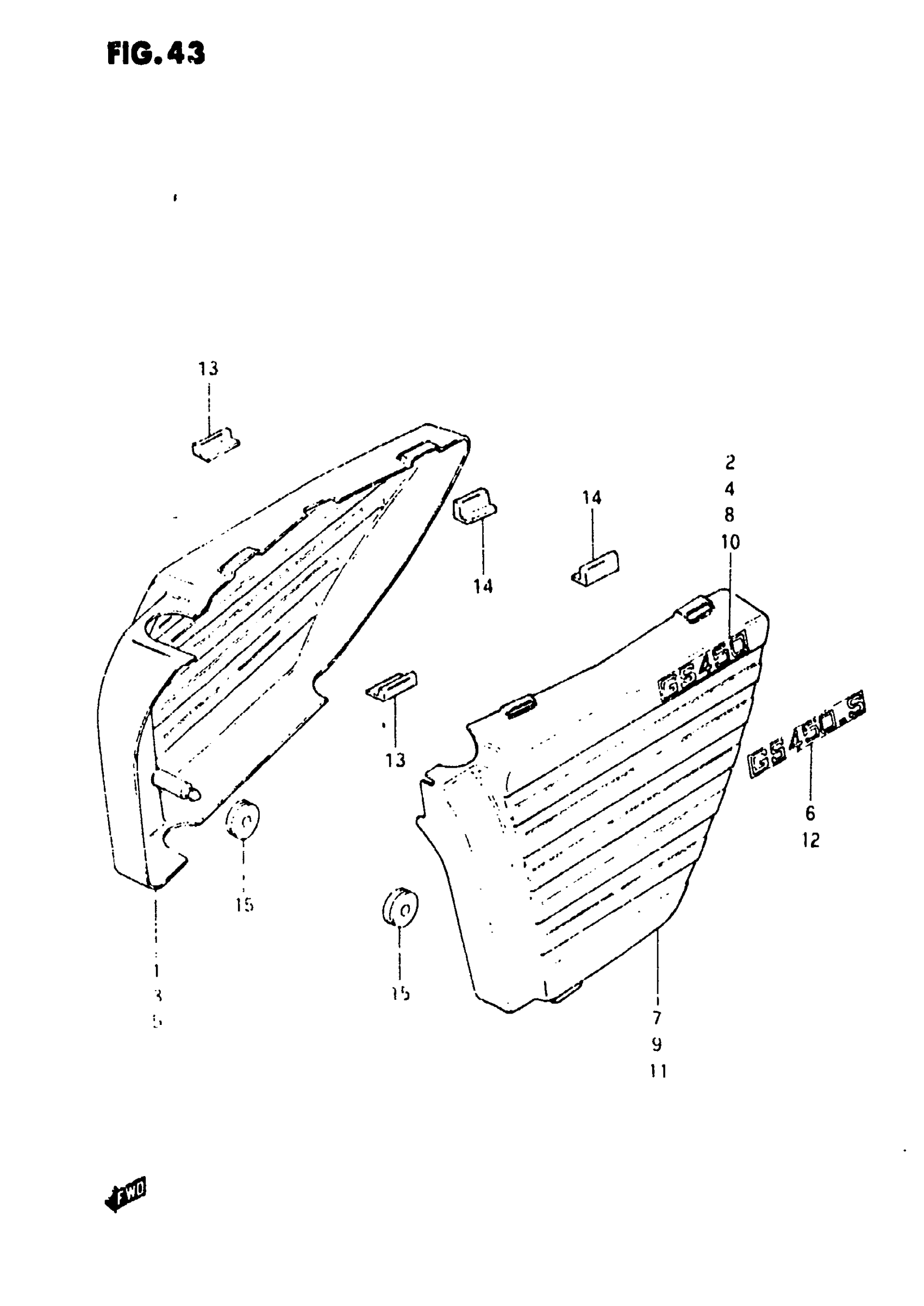

1982 Suzuki GS450ET Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER FRAME RH This part replaces 47111-44100-737.

47111-44100

1
Out of stock

2

EMBLEM, "450" (BLACK)

68131-44100-019

1
Out of stock

3

COVER FRAME RH This part replaces 47111-44100-10S.

47111-44100

1
Out of stock

4

EMBLEM, "450" (GOLD)

68131-44100-764

1
Out of stock

5

COVER FRAME RH | GS450SX This part replaces 47111-44100-019.

47111-44100

1
Out of stock

6

EMBLEM, "450S" | GS450SX

68131-44120-66S

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 47211-44100-737.

47211-44100

1
Out of stock

8

EMBLEM, "450" (BLACK)

68131-44100-019

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 47211-44100-10S.

47211-44100

1
Out of stock

10

EMBLEM, "450" (GOLD)

68131-44100-764

1
Out of stock

11

NO DESCRIPTION AVAILABLE | GS450SX This part replaces 47211-44100-019.

47211-44100

1
Out of stock

12

EMBLEM, "450S" | GS450SX

68131-44120-66S

1
Out of stock

13

CUSHION, FRONT

47117-45000

2
Out of stock

14

CUSHION, REAR

47117-02400

2
Out of stock

15

CUSHION, LOWER

09320-08018

2
Out of stock
