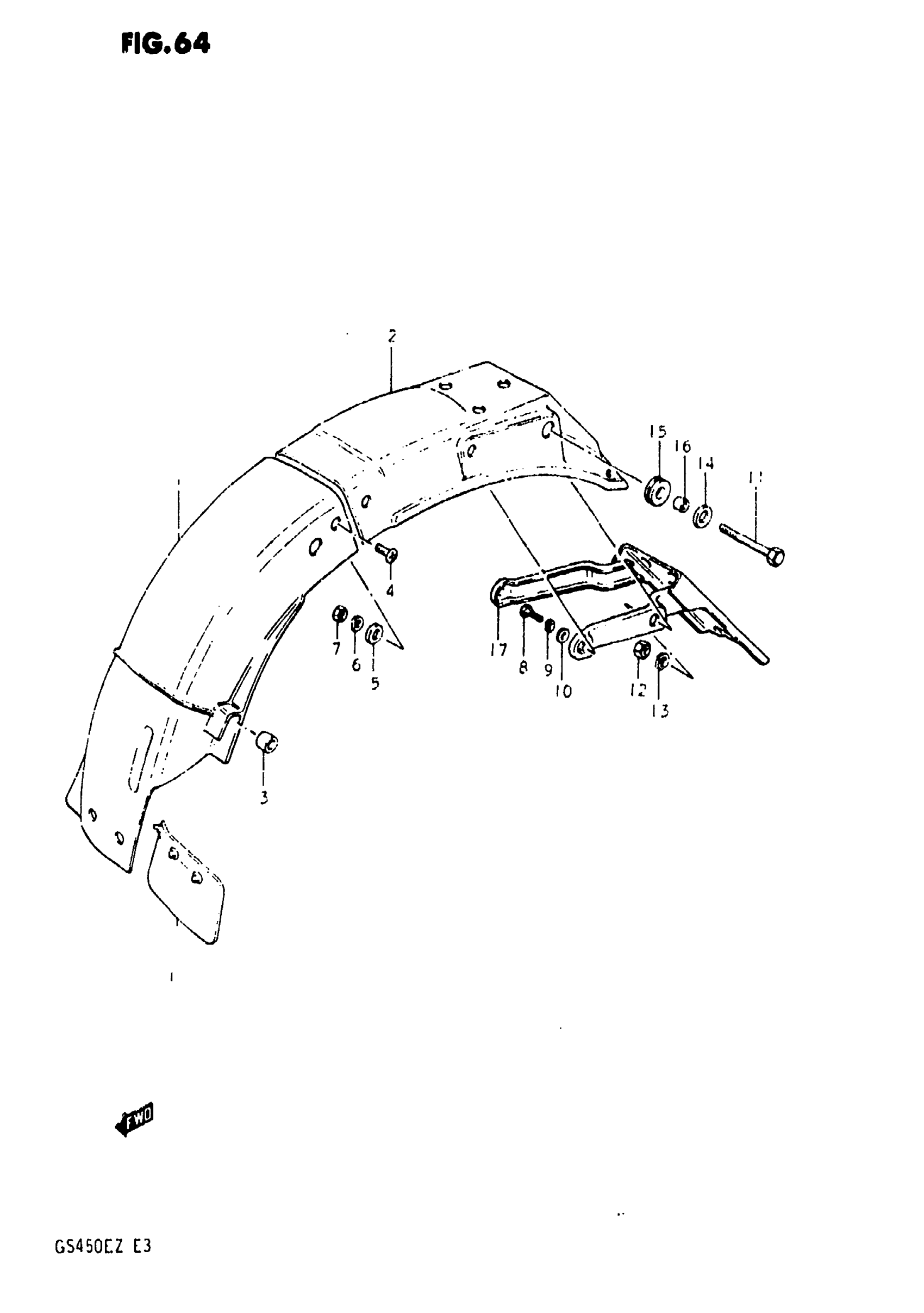

Suzuki GS450ET (1982) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 63112-44100.

63112-44X50

Unavailable

2

BODY, REAR FENDER REAR

63113-44100

Unavailable

3

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

4

SCREW This part replaces 02142-05128.

02142-05127

$1.97

5

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

NUT This part replaces 08310-11058.

08310-00057

$1.84

8

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

BOLT This part replaces 01527-08657.

01550-08657

$4.68

12

NUT This part replaces 08310-12088.

08310-00087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER (8.5X26X1.2)

09160-08032

$2.30

15

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

16

SPACER This part replaces 09180-08021.

09180-08188

$2.56

17

REINFORCEMENT, REAR FENDER

63120-44100

Unavailable

18

MUD GUARD, REAR FENDER

63411-31900

Unavailable
