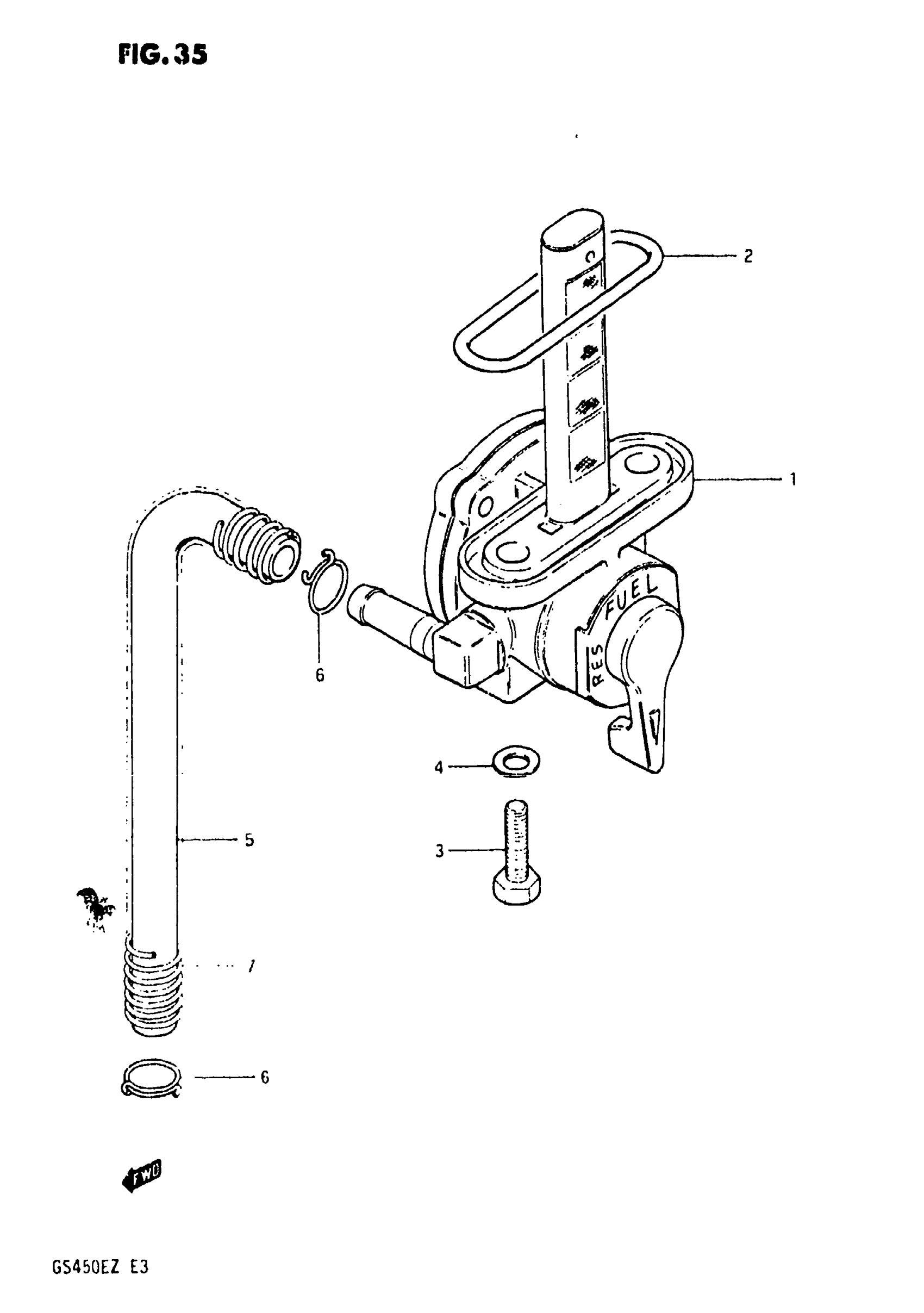

Suzuki GS450ET (1982) FUEL COCK Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44300-44170.

44300-44172

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X, Z; Includes Item(s) 2 This part replaces 44300-44171.

44300-44172

Unavailable

2

O RING This part replaces 44348-49170.

44348-49171

$2.80

3

SCREW This part replaces 09128-06005.

02162-0616B

$2.06

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.01

5

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$13.82

6

CLIP

09401-10403

$1.67

7

SPRING This part replaces 09440-13016.

09440-13052

$7.10
