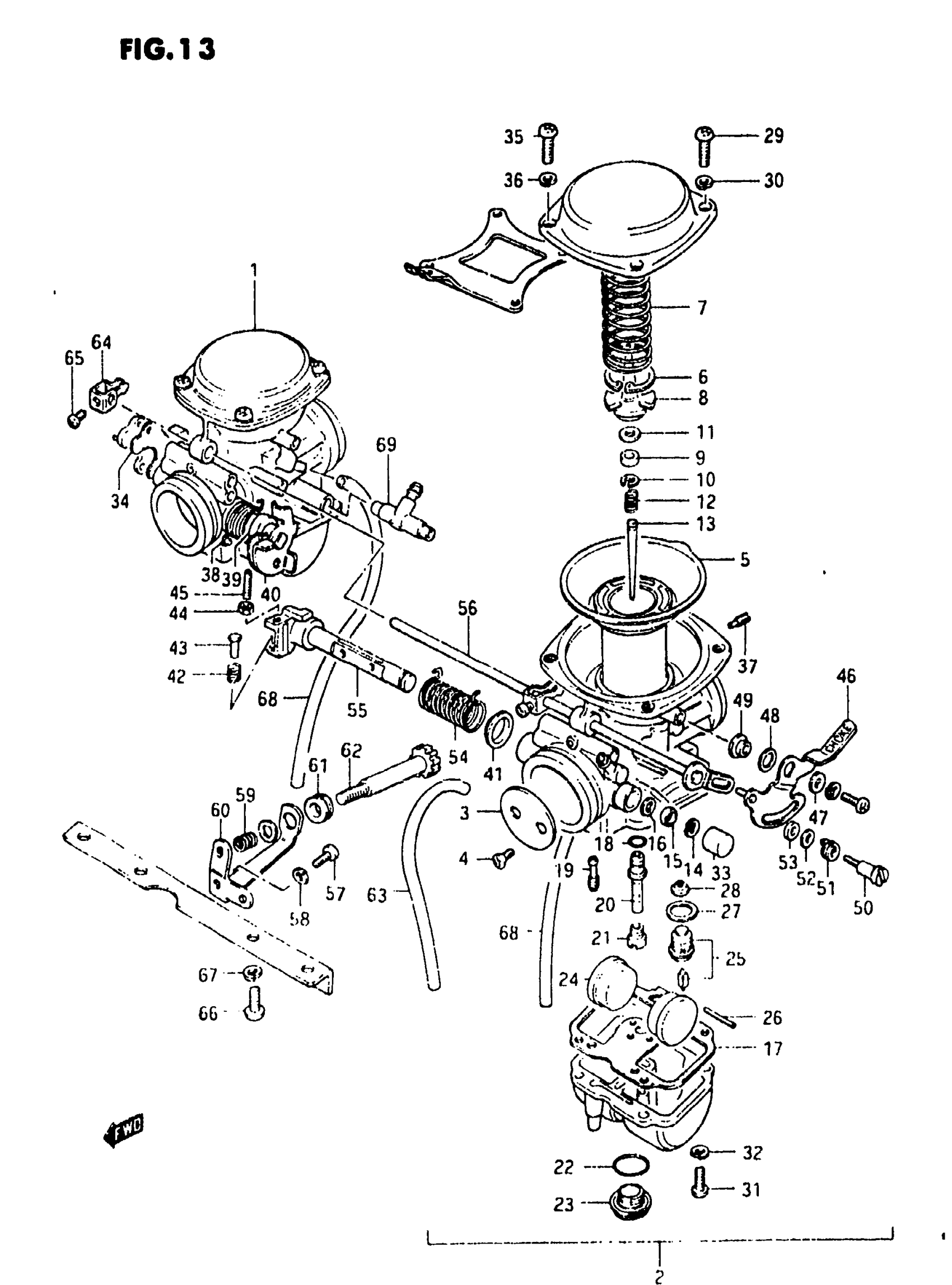

Find the part on the Carburetor diagram for your 1982 Suzuki GS450ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Suzuki GS450ET Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARBURETOR ASSY | Includes Item(s) 1 - 69

13200-44110

1
Out of stock

1

CARBURETOR ASSY, RH

13201-44110

1
Out of stock

2

CARBURETOR ASSY, LH

13202-44110

1
Out of stock

3

VALVE, THROTTLE (135)

13551-44110

2
Out of stock

4

SCREW

13604-44080

4
Out of stock

5

DIAPHRAGM

13500-44110

2
Out of stock

6

CLIP

13581-44030

2
Out of stock

7

SPRING

13503-44030

2
Out of stock

8

HOLDER, GUIDE

13389-44030

2
Out of stock

9

RING

13387-44030

2
Out of stock

10

E RING This part replaces 13394-44010.

13394-31210

2
Out of stock

11

WASHER

13382-44030

2

$3.81

In stock

12

SPRING

13388-44030

2

$9.17

In stock

13

NEEDLE, JET (4C2)

13383-44110

2
Out of stock

14

E RING

13617-44080

2
Out of stock

15

GASKET

13557-47070

2
Out of stock

16

SEAL This part replaces 13556-44010.

13556-05A11

2
Out of stock

17

GASKET

13251-44012

2
Out of stock

18

O RING, NOZZLE This part replaces 13295-31210.

09280-03003

2
Out of stock

19

JET, PILOT (17.5)

09492-17005

2
Out of stock

20

JET, NEEDLE (Y-6)

09494-00239

2
Out of stock

21

JET, MAIN (115)

09491-23012

2
Out of stock

22

O RING This part replaces 13246-44010.

13249-41310

2
Out of stock

23

PLUG, DRAIN

13247-32210

2
Out of stock

24

FLOAT

13252-31210

2
Out of stock

25

VALVE, NEEDLE

13370-44010

2
Out of stock

26

.PIN, FLOAT

13254-01010

2

$4.80

In stock

27

WASHER

13392-16600

2
Out of stock

28

2

$10.26

In stock

29

SCREW This part replaces 02111-05158.

02112-05167

4
Out of stock

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

31

15

$1.33

In stock

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

15
Out of stock

33

CAP

13578-47070

2
Out of stock

34

GASKET

13436-44010

2
Out of stock

35

SCREW This part replaces 02112-05168.

02112-05167

4
Out of stock

36

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

37

JET, PILOT AIR (1.6)

09493-32003

2
Out of stock

38

SPRING | RH

13573-31610

1
Out of stock

39

RING | RH

13574-44110

1
Out of stock

40

SHAFT | RH

13550-44120

1
Out of stock

41

RING | LH

13387-44110

1
Out of stock

42

SPRING

13268-44110

1
Out of stock

43

PIN

13563-44110

1
Out of stock

44

NUT

13607-47070

1
Out of stock

45

SCREW

13605-47080

1
Out of stock

46

LEVER, STARTER

13413-44110

1
Out of stock

47

WASHER This part replaces 13432-44110.

09160-04015

1
Out of stock

48

WASHER

13615-44010

1
Out of stock

49

RING

13432-31210

1
Out of stock

50

SCREW This part replaces 13605-44110.

13438-33110

1
Out of stock

51

SPRING

13388-44110

1
Out of stock

52

1

$3.67

In stock

53

WASHER

13432-33110

1
Out of stock

54

SPRING

13573-44110

1
Out of stock

55

SHAFT

13550-44110

1
Out of stock

56

SHAFT

13410-44110

2
Out of stock

57

1

$1.55

In stock

58

LOCK WASHER This part replaces 08321-21058.

08321-0105A

1
Out of stock

59

SPRING

13271-93011

1
Out of stock

60

BRACKET

13627-44110

1
Out of stock

61

CAP

13681-44110

1
Out of stock

62

ADJUSTER

13267-47070

1
Out of stock

63

HOSE(4.5X8.5X60 This part replaces 13683-45050.

09355-45001-600

1
Out of stock

64

ARM, STARTER

13422-44110

2
Out of stock

65

SCREW This part replaces 13605-44080.

13605-31210

2
Out of stock

66

SCREW This part replaces 02112-06128.

02112-06127

4
Out of stock

67

4

$2.28

In stock

68

HOSE(4.5X8.5X60 This part replaces 13683-44010.

09355-45001-600

2
Out of stock

69

NIPPLE

13685-44110

1
Out of stock
