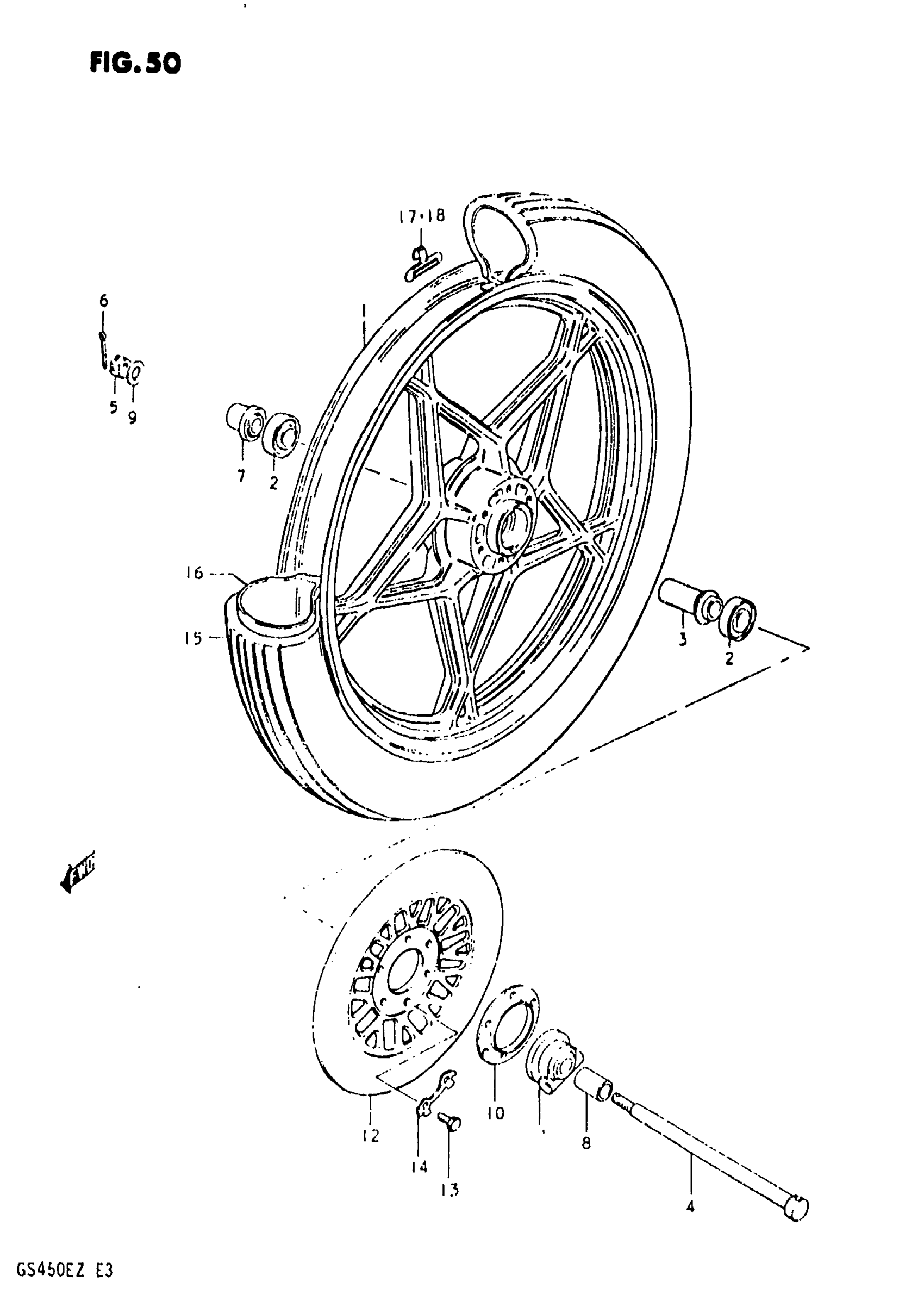

Suzuki GS450ET (1982) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL (DARK GRAY) | GS450ET, GS450EX, This part replaces 54111-44001-12U.

54111-44070-12U

Unavailable

1

WHEEL (DARK GRAY) | GS450EZGS450ST, GS450SX

54111-44070-12U

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

09180-15011

$8.18

4

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18410

$20.45

8

SPACER, AXLE LH (15x22x30)

09180-15034

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

DUST SEAL, GEAR BOX

54871-45010

Unavailable

11

BOX ASSY,SPEEDO This part replaces 54600-18402.

54600-18403

Unavailable

12

DISK, FRONT BRAKE

59211-45200

Unavailable

13

BOLT

09100-08140

$2.10

14

WASHER

09169-08016

$2.41

15

NO DESCRIPTION AVAILABLE | IRC This part replaces 55100-44010.

55100-38331

Unavailable

15

NO DESCRIPTION AVAILABLE | BS This part replaces 55100-44130.

55100-38331

Unavailable

16

TUBE ASSY,WHEEL | IRC This part replaces 55200-11601.

55200-26F01

$31.27

16

TUBE ASSY,WHEEL | BS This part replaces 55200-18030.

55200-26F01

$31.27

17

BALANCER (20G)

55411-47001

Unavailable

18

BALANCER (30G)

55412-47001

Unavailable
