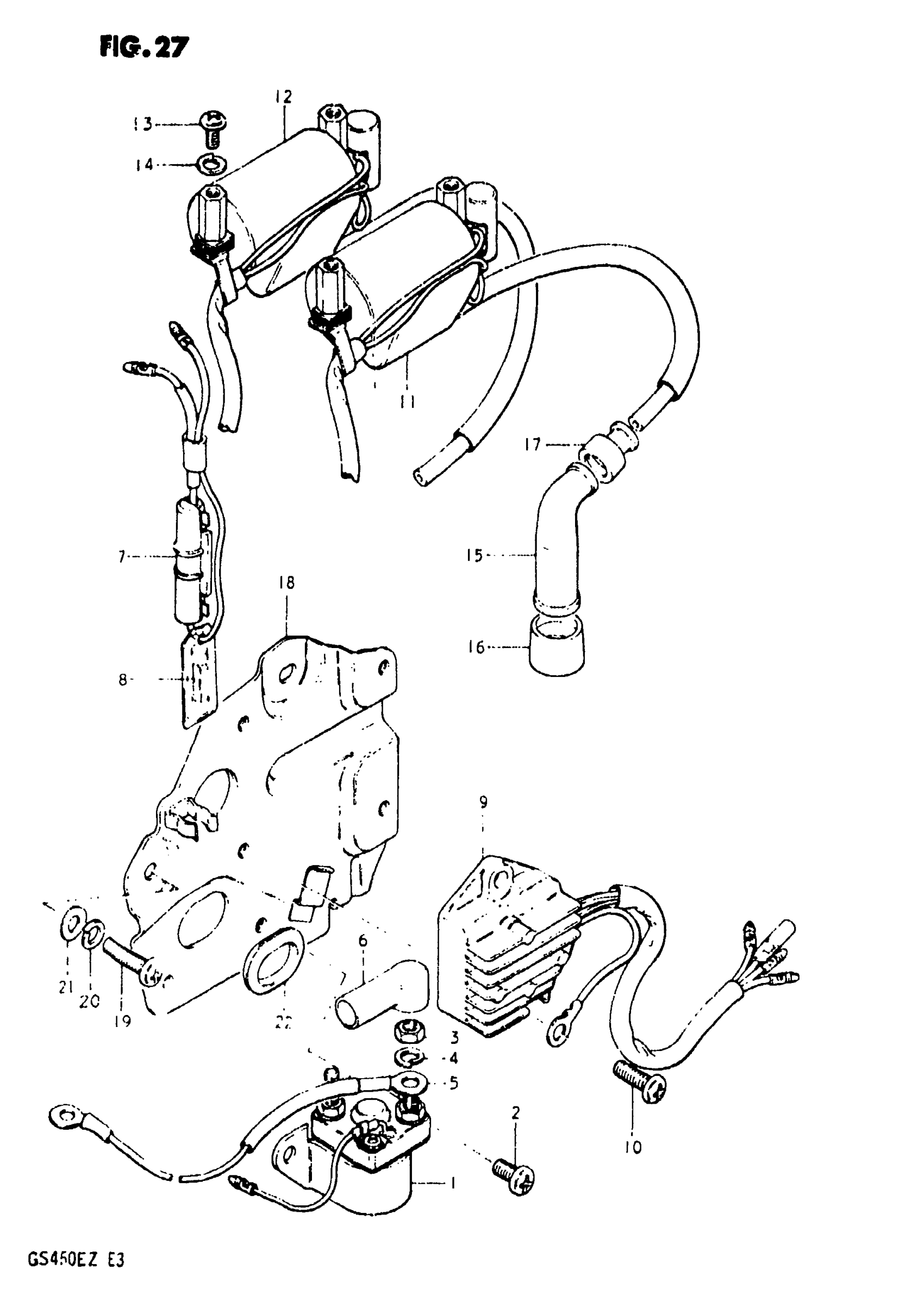

Suzuki GS450ET (1982) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, (-) This part replaces 33850-44110.

33850-03201

$9.94

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

FUSE CASE ASSY | Includes Item(s) 8 This part replaces 36740-15010.

36740-15011

$9.38

8

FUSE (15A)

09481-15001

$2.06

9

RECTIFIER ASSY This part replaces 32800-44040.

32800-47121

Unavailable

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

COIL ASSY,IGNIT This part replaces 33410-44120.

33410-44X50

Unavailable

12

COIL ASSY,IGNIT This part replaces 33420-44120.

33410-44X50

Unavailable

13

SCREW This part replaces 02112-05108.

02112-05107

$1.49

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

CAP, SPARK PLUG

33510-43010

$24.99

16

SEAL, SPARK PLUG

33541-69010

$4.37

17

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

18

PLATE, PARTS HOLDER | MODEL T This part replaces 47410-44100.

47410-44101

Unavailable

18

PLATE, PARTS HOLDER | MODEL X, Z

47410-44101

Unavailable

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

GROMMET | MODEL T

09308-19001

Unavailable
