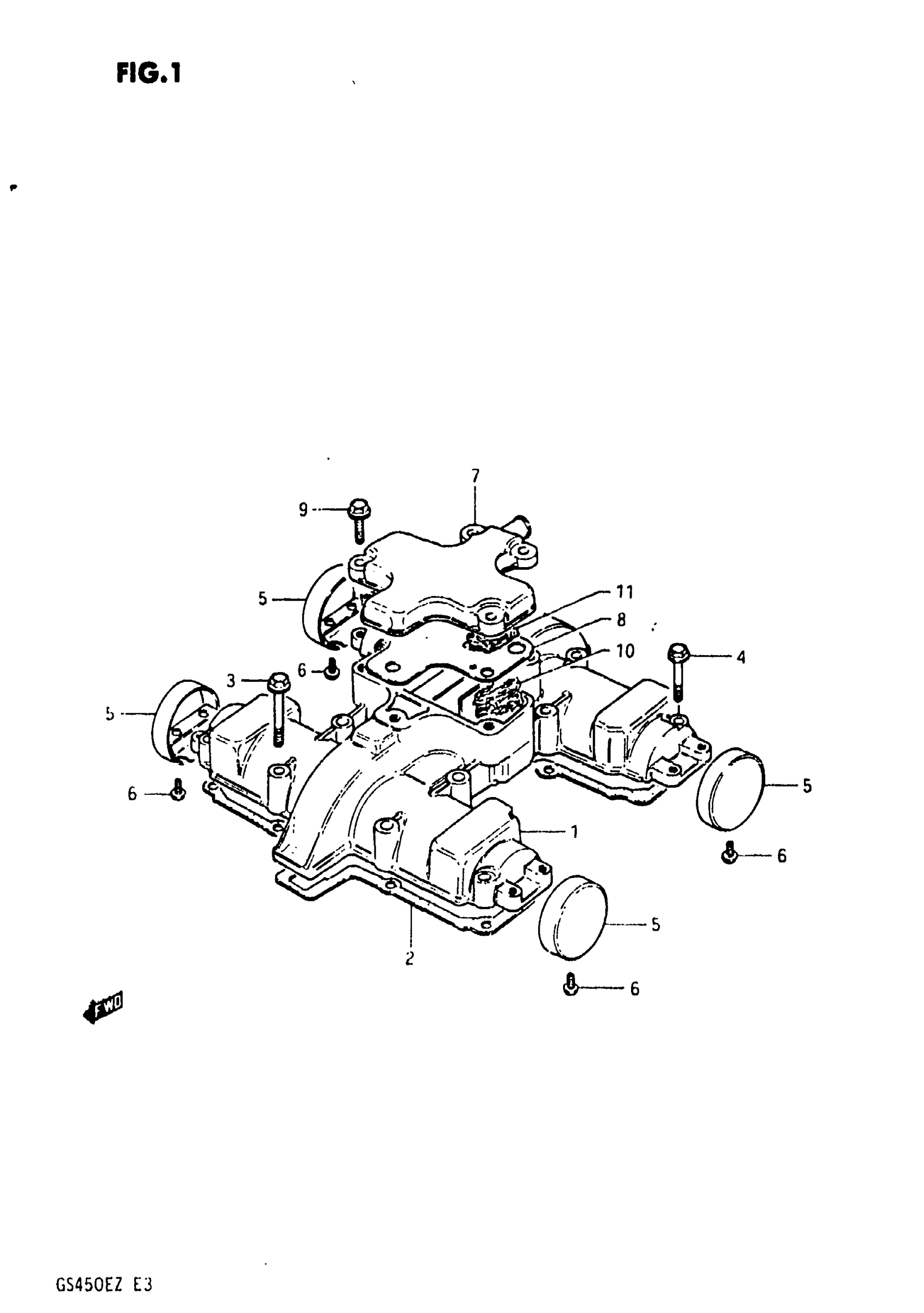

Suzuki GS450ET (1982) CYLINDER HEAD COVER (-E.NO.162952) Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-44100

Unavailable

2

GASKET,CYL HD C This part replaces 11173-44101.

11173-44102-H17

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT This part replaces 01517-06308.

01550-06307

$2.69

5

CAP, SIDE (STEEL PLATE) | MODEL T,X

11174-44101

Unavailable

5

CAP, SIDE (LIGHT ALLOY) | MODEL Z

11174-44110

Unavailable

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

COVER, BREATHER | MODEL T,X This part replaces 11176-47010.

11176-47042

Unavailable

7

COVER, BREATHER | MODEL Z This part replaces 11176-47001.

11176-47042

Unavailable

8

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

9

BOLT This part replaces 01517-06208.

01550-06207

$2.30

10

SEPARATOR,OIL B This part replaces 11186-45000.

11186-45001

Unavailable

11

SEPARATOR,OIL B This part replaces 11187-45000.

11187-45001

Unavailable
