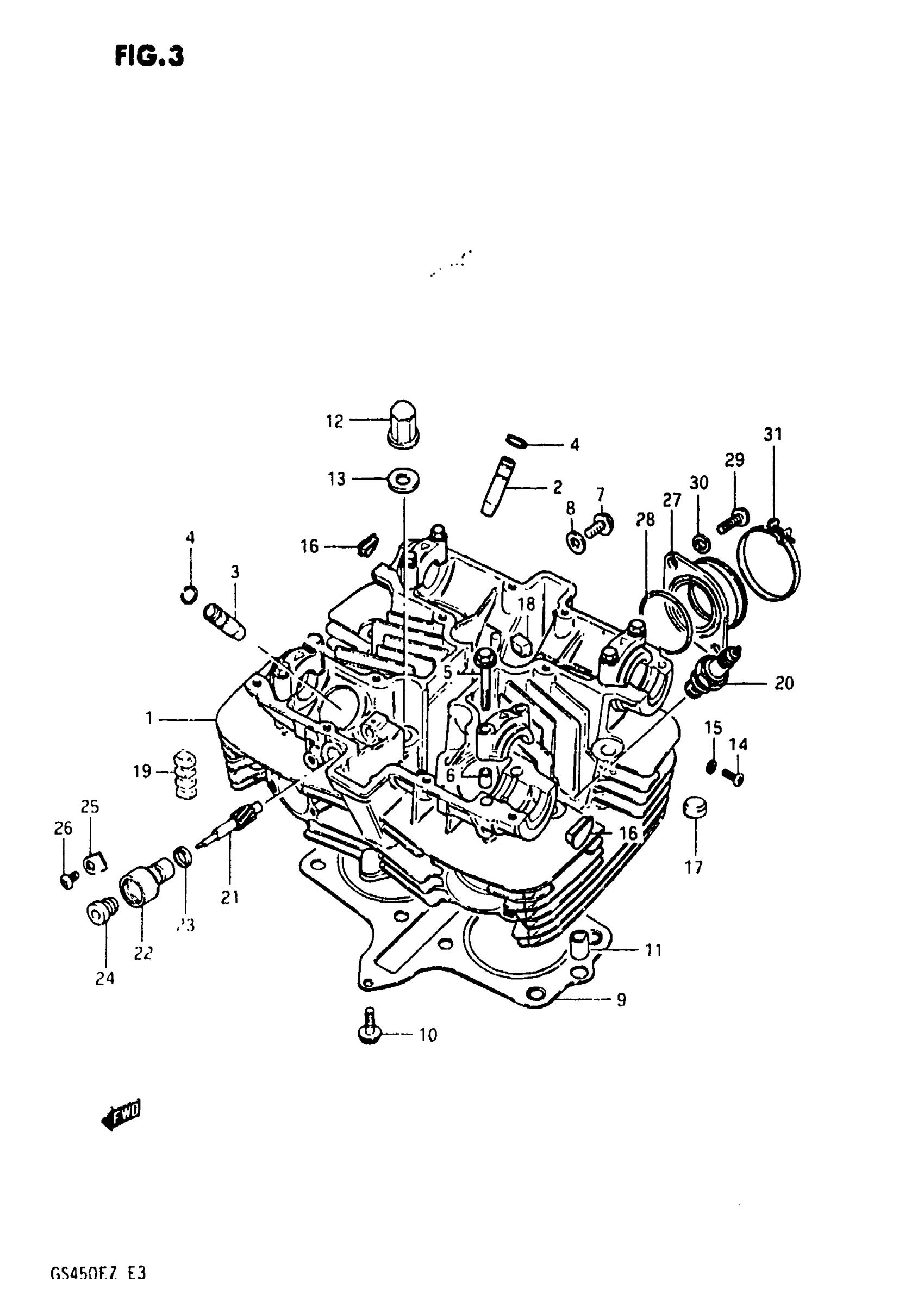

Suzuki GS450ET (1982) CYLINDER HEAD Diagram

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 11100-44830.

11100-44860

Unavailable

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 11100-44831.

11100-44860

Unavailable

NO DESCRIPTION AVAILABLE | MODEL Z, ~E. NO. 162952 This part replaces 11100-44100.

11100-44860

Unavailable

CYLINDER HEAD SET | MODEL Z, E. NO. 162953~; Includes Item(s) 2 - 8

11100-44110

Unavailable

GUIDE, INTAKE VALVE

11115-45740

$40.73

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

RING, VALVE GUIDE

09381-10003

$2.47

BOLT (6X39)

09103-06026

$1.98

PIN

09206-08001

$1.78

BOLT This part replaces 01517-06128.

01550-06127

$2.30

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

GASKET,CYL HEAD This part replaces 11141-44100.

11141-44110-H17

Unavailable

BOLT This part replaces 01517-06308.

01550-06307

$2.69

PIN

04211-11189

$1.78

NUT

09159-10026

$6.20

GASKET

09168-10017

$3.04

SCREW This part replaces 02112-05088.

02112-05087

$1.49

GASKET

09168-05010

$1.71

PLUG, SIDE

09241-23002

$6.17

PAD, RUBBER | MODEL T, X

11151-45000

$3.84

PAD, RUBBER | MODEL T, X This part replaces 11152-45000.

11152-38A00

$3.37

RUBBER PAD (N4) | MODEL Z This part replaces 11251-10200.

11251-46150

$6.55

SPARK PLUG This part replaces 09482-00056.

09482-00091

$3.01

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

Unavailable

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$48.23

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

SEAL BAND

26451-45000

$5.05

OIL SEAL

09289-05002

$8.43

PLATE, GEAR SLEEVE

26449-33000

$4.35

SCREW

09128-05101

$1.49

PIPE, INTAKE

13110-44001

Unavailable

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

SCREW This part replaces 02112-06208.

02112-06207

$1.78

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

CLAMP

09402-54303

$3.91
