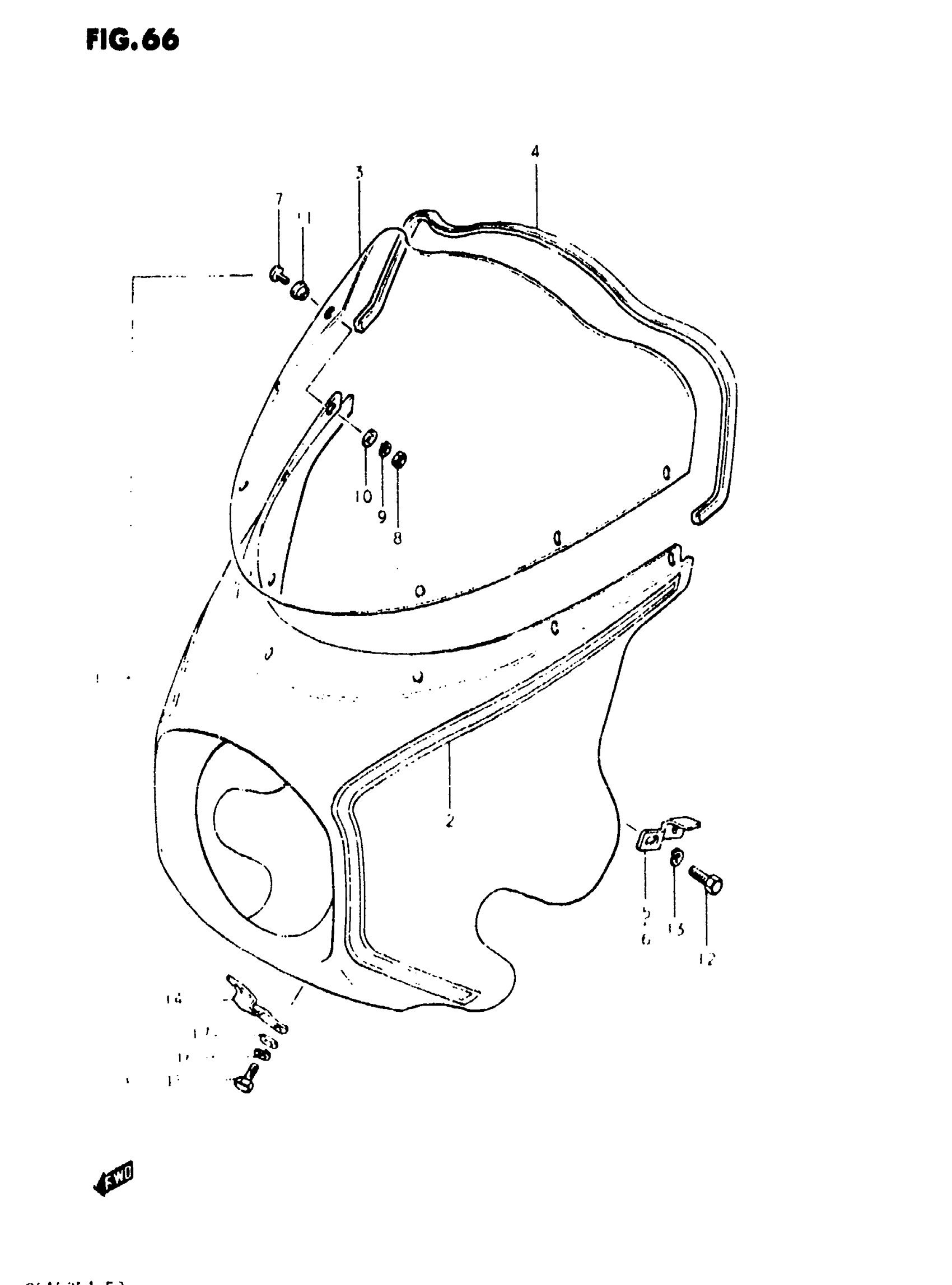

Suzuki GS450ET (1982) COWLING (GS450ST/SX) Diagram

#

Description
Price

1

COWLING ASSY | MODEL T

94400-44111-00J

Unavailable

1

COWLING ASSY | MODEL X; Includes Item(s) 2 - 17

94400-44170-019

Unavailable

2

TAPE SET | MODEL T

68190-44100-70N

Unavailable

2

TAPE SET | MODEL X

68190-44130-75F

Unavailable

3

WINDOW, COWLING

94611-44100

Unavailable

4

MOLDING | MODEL T This part replaces 94631-44100.

94631-44110

$36.85

4

MOULDING (L:1920) | MODEL T,X

94631-44110

$36.85

5

BRACKET, RH

94510-44100

Unavailable

6

BRACKET, LH

94520-44100

Unavailable

7

.SCREW This part replaces 02142-05125.

02142-0512A

$1.49

8

NUT This part replaces 08310-11058.

08310-00057

$1.84

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

WASHER This part replaces 08322-21058.

08322-01057

$2.13

11

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

12

BOLT This part replaces 01107-06108.

01500-06107

$2.06

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

BRACKET, LOWER

94551-44100

Unavailable

15

BOLT This part replaces 01107-06128.

01500-06127

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13
