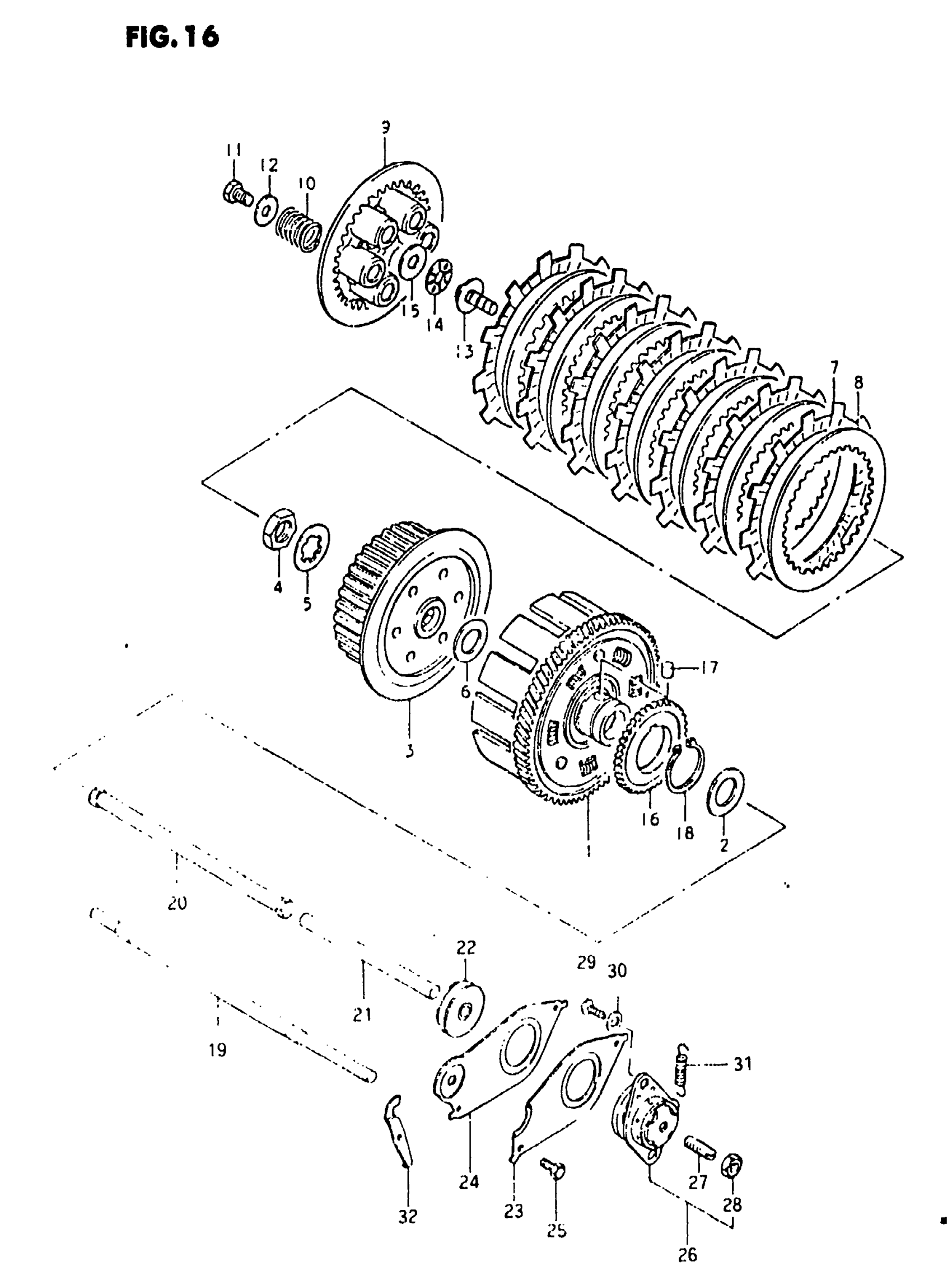

Suzuki GS450ET (1982) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:76) This part replaces 21200-44100.

21200-44102

Unavailable

2

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$3.21

3

HUB,CLUTCH SLEEVE This part replaces 21411-44100.

21411-44101

$73.22

4

NUT This part replaces 09140-20002.

09140-20001

$3.37

5

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

6

WASHER

09160-20015

$5.88

7

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

8

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

9

PLATE, PRESSURE This part replaces 21462-16501.

21462-14301

$59.33

10

SPRING This part replaces 09440-19013.

09440-19027

$5.10

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

12

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

13

PIECE, PUSH

23121-44100

$25.75

14

BEARING

09263-15003

$8.29

15

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

16

GEAR, OIL PUMP DRIVE (NT:38)

16321-44001

Unavailable

17

PIN

09261-06002

$1.53

18

CLIP This part replaces 08331-31389.

08331-31383

$3.42

19

ROD, PUSH | ~E.NO.162952

23100-44101

Unavailable

20

ROD,PUSH,R | E.NO.162953~ This part replaces 23110-44110.

23110-44111

$16.20

21

ROD, PUSH LH | E.NO.162953~ This part replaces 23111-44110.

23111-05A01

$13.75

22

OIL SEAL (6x34x8) | FLANGED TYPE

09283-06002

Unavailable

22

OIL SEAL (6x34x710) | WITH HOLDER

09285-06011

$8.24

23

HOLDER, OIL SEAL | FOR 09283-06002

23117-44100

Unavailable

24

HOLDER, OIL SEAL | FOR 09285-06011 This part replaces 23117-44101.

23117-44102

$7.22

25

BOLT This part replaces 01107-06128.

01500-06127

$1.97

26

SCREW ASSY, RELEASE | Includes Item(s) 27 - 28 This part replaces 23200-44100.

23200-44101

Unavailable

27

SCREW This part replaces 09134-06001.

09134-06010

$3.12

28

.NUT This part replaces 08310-22068.

08310-00067

$2.13

29

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

31

SPRING

09443-08001

$2.92

32

GUIDE, PUSH ROD OIL SEAL | ~F.NO.500254

23121-44990

Unavailable
