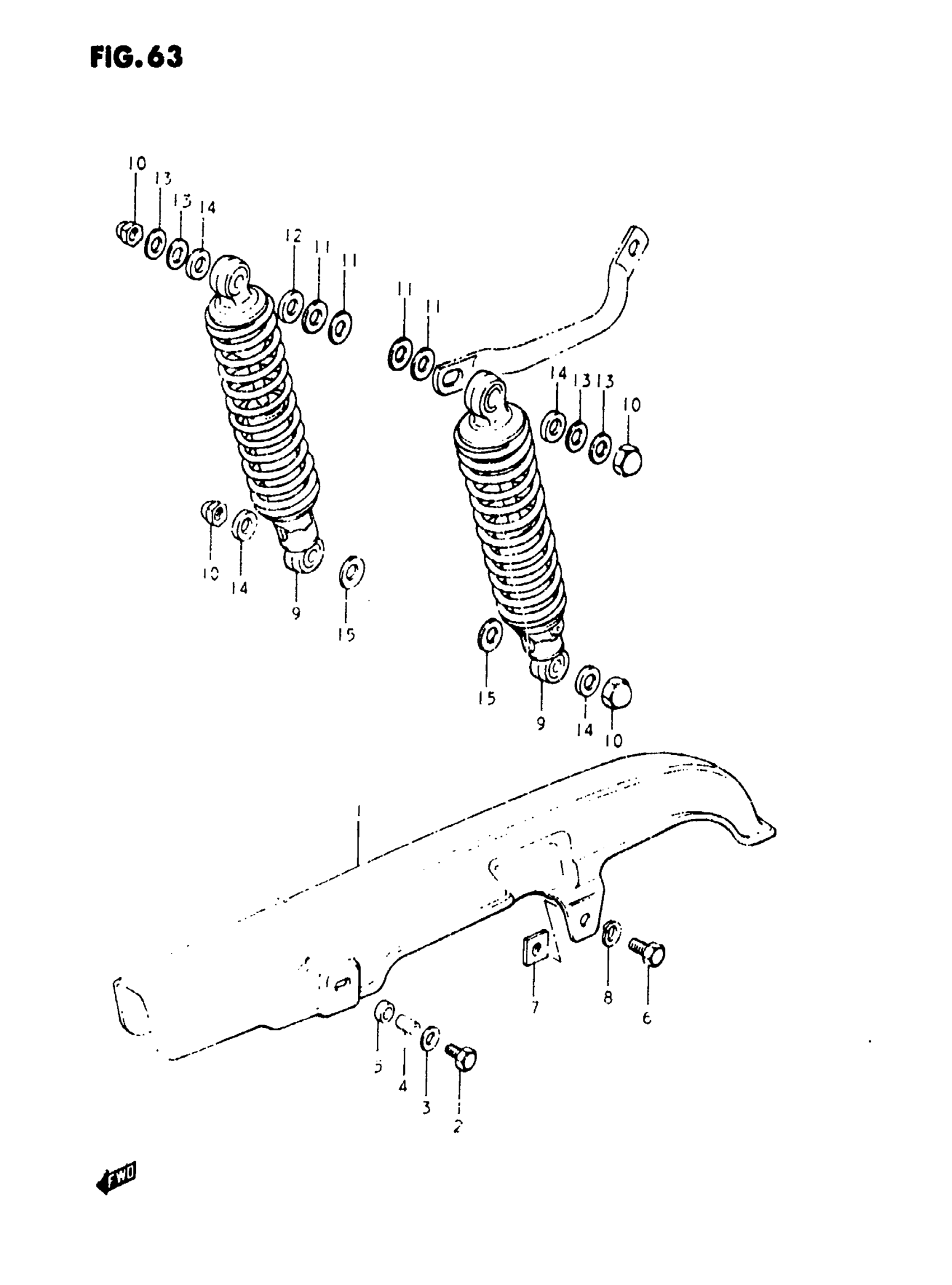

Suzuki GS450ET (1982) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description
Price

1

CASE, CHAIN | MODEL T, ~F.NO.504898 This part replaces 61311-44100-291.

61311-44102

Unavailable

1

CASE, CHAIN | MODEL T, F.NO.504899-MODEL X This part replaces 61311-44101-291.

61311-44102

Unavailable

1

CASE, CHAIN | MODEL Z This part replaces 61311-44102-291.

61311-44102

Unavailable

2

BOLT This part replaces 01107-06108.

01500-06107

$2.06

3

WASHER (6.5X18X1.0)

09160-06056

$1.72

4

SPACER This part replaces 09180-06032.

09180-06246

$2.12

5

FUEL TANK UPPER WASHER This part replaces 09320-08005.

09161-08006

$2.07

6

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

7

NUT

61316-43000

Unavailable

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

NO DESCRIPTION AVAILABLE | MODEL T, X This part replaces 62100-44100.

62100-44411

Unavailable

9

SHOCK ABSORBER, REAR | MODEL Z

62100-44150

Unavailable

10

NUT This part replaces 08313-11108.

08313-10107

$2.50

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

13

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

14

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

15

WASHER This part replaces 09160-12004.

09160-12088

$2.00
