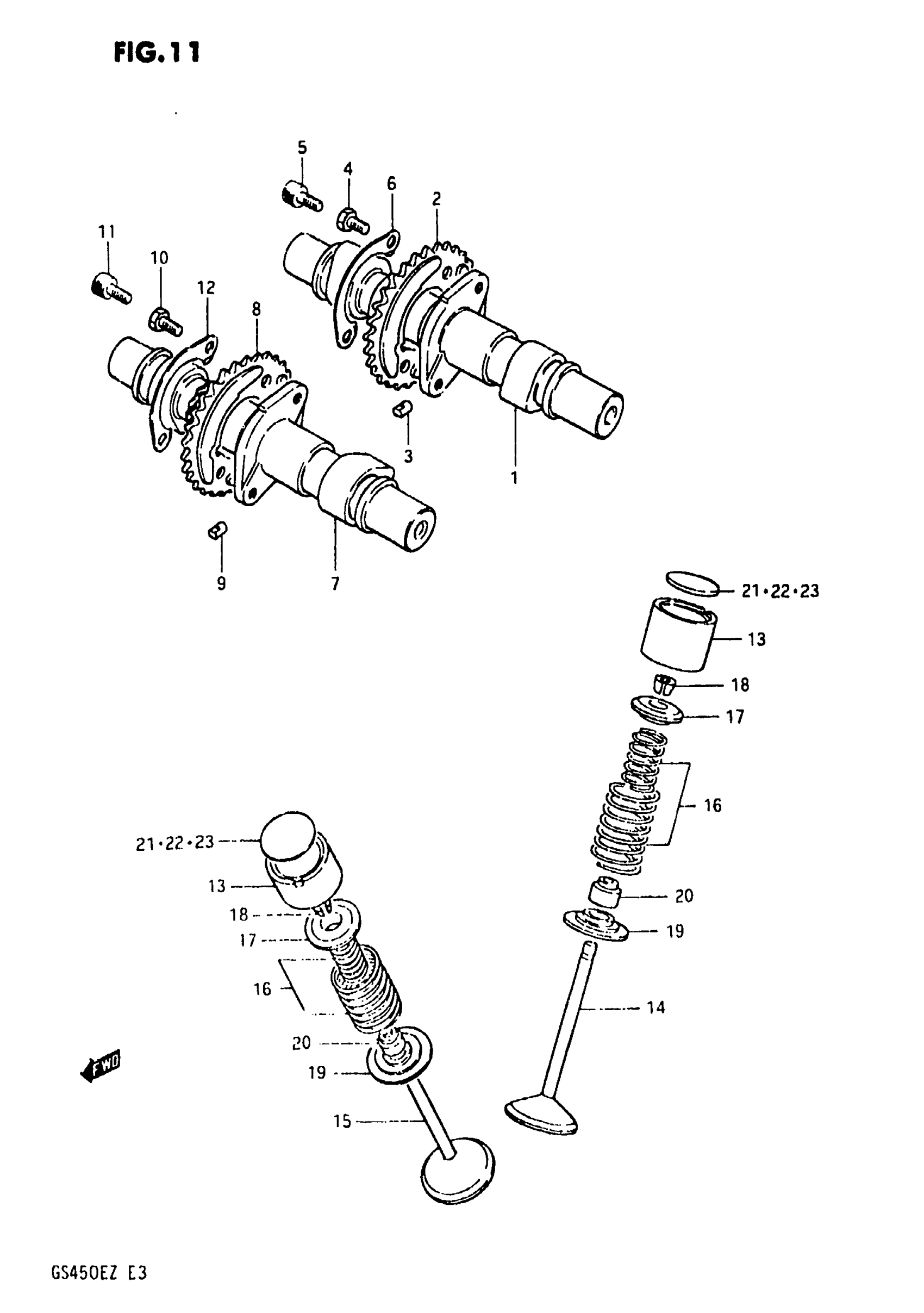

Suzuki GS450ET (1982) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | ~E.NO.105612 This part replaces 12711-44100.

12711-44101

Unavailable

1

CAM SHAFT, INTAKE | E.NO.105613~

12711-44101

Unavailable

2

SPROCKET, INTAKE (NT:30) | MODEL T,~E.NO.105612 This part replaces 12740-45040.

12740-45042

Unavailable

2

SPROCKET, INTAKE (NT:30) | MODEL T,E.NO.105613~ This part replaces 12740-45051.

12740-45042

Unavailable

2

SPROCKET, INTAKE (NT:30) | MODEL X,Z This part replaces 12740-45041.

12740-45042

Unavailable

3

PIN | E.NO.105613~

12748-44000

Unavailable

4

BOLT | E.NO.105613~

09111-06027

$1.72

5

BOLT, NO.3 | ~E.NO.105612 This part replaces 09106-06024.

07130-0610B

$3.21

6

WASHER | E.NO.105613~ This part replaces 12747-44000.

12747-44001

$2.50

7

CAM SHAFT, EXHAUST | ~E.NO.105612 This part replaces 12721-44100.

12721-44101

Unavailable

7

CAM SHAFT, EXHAUST | E.NO.105613~

12721-44101

Unavailable

8

SPROCKET (NT:30) | MODEL T,~E.NO.105612 This part replaces 12750-45040.

12750-45041

Unavailable

8

SPROCKET (NT:30) | MODEL T,E.NO.105613~ This part replaces 12750-45051.

12750-45041

Unavailable

8

SPROCKET (NT:30) | MODEL X,Z

12750-45041

Unavailable

9

PIN | E.NO.105613~

12748-44000

Unavailable

10

BOLT | E.NO.105613~

09111-06027

$1.72

11

BOLT, NO.3 | ~E.NO.105612 This part replaces 09106-06024.

07130-0610B

$3.21

12

WASHER | E.NO.105613~ This part replaces 12747-44000.

12747-44001

$2.50

13

TAPPET This part replaces 12891-45000.

12891-45001

$56.05

14

VALVE, INTAKE This part replaces 12911-45011.

12911-45030

Unavailable

15

VALVE, EXHAUST This part replaces 12912-45011.

12912-45021

Unavailable

16

SPRING SET, VALVE This part replaces 12900-44810.

12920-44110

$16.87

17

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

18

COTTER, VALVE

12932-45010

$2.37

19

SEAT, SPRING

12933-45001

$6.27

20

OIL SEAL

09289-07002

$7.98

21

SHIM, TAPPET (T:2.15) This part replaces 12892-45000.

12892-45000-215

$21.65

21

SHIM, TAPPET (T:2.20) This part replaces 12892-45001.

12892-45000-220

$21.65

21

SHIM, TAPPET (T:2.25) This part replaces 12892-45002.

12892-45000-225

$21.65

21

SHIM, TAPPET (T:2.30) This part replaces 12892-45003.

12892-45000-230

$21.65

21

SHIM, TAPPET (T:2.35) This part replaces 12892-45004.

12892-45000-235

$21.65

21

SHIM, TAPPET (T:2.40) This part replaces 12892-45005.

12892-45000-240

$21.65

21

SHIM, TAPPET (T:2.45) This part replaces 12892-45006.

12892-45000-245

$20.88

21

SHIM, TAPPET (T:2.50) This part replaces 12892-45007.

12892-45000-250

$20.88

21

SHIM, TAPPET (T:2.55) This part replaces 12892-45008.

12892-45000-255

$20.88

22

SHIM, TAPPET (T:2.60) This part replaces 12892-45009.

12892-45000-260

$17.42

22

SHIM, TAPPET (T:2.65) This part replaces 12892-45010.

12892-45000-265

$17.75

22

SHIM, TAPPET (T:2.70) This part replaces 12892-45011.

12892-45000-270

$17.75

22

SHIM, TAPPET (T:2.75) This part replaces 12892-45012.

12892-45000-275

$21.65

22

SHIM, TAPPET (T:2.80) This part replaces 12892-45013.

12892-45000-280

$17.75

22

SHIM, TAPPET (T:2.85) This part replaces 12892-45014.

12892-45000-285

$21.65

22

SHIM, TAPPET (T:2.90) This part replaces 12892-45015.

12892-45000-290

$21.65

22

SHIM, TAPPET (T:2.95) This part replaces 12892-45016.

12892-45000-295

$21.65

22

SHIM, TAPPET (T:3.00) This part replaces 12892-45017.

12892-45000-300

Unavailable

23

SHIM, TAPPET (T:3.05) This part replaces 12892-45018.

12892-45000-305

$21.65

23

SHIM, TAPPET (T:3.10) This part replaces 12892-45019.

12892-45000-310

$21.65

24

SHIM SET | NOT SHOWN25.; Includes Item(s) 25 This part replaces 12800-45810.

12800-45811

Unavailable

25

CASE, TAPPET SHIM | NOT SHOWN This part replaces 99000-69480.

99000-69521

Unavailable
