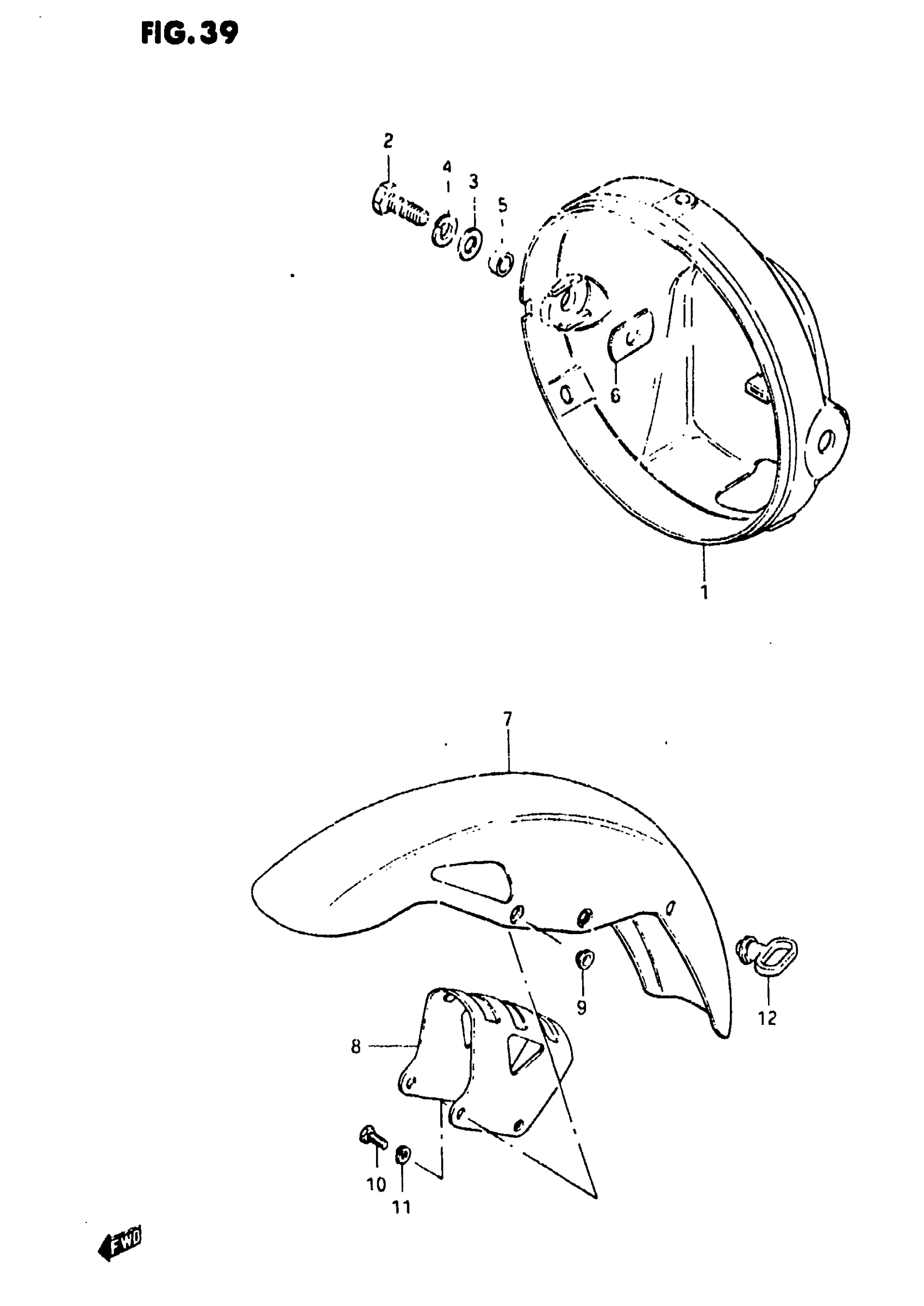

Suzuki GS450E (1983) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

HOUSING, HEAD L This part replaces 51811-33200.

51811-15E01

Unavailable

2

BOLT

01204-08257

$1.96

3

WASHER This part replaces 08322-11088.

08322-01087

$2.13

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

FENDER, FRONT

53111-44400-019

Unavailable

7

FENDER,FR This part replaces 53111-44400-07P.

53111-44400-13L

Unavailable

8

BRACE

53114-44400

Unavailable

9

WASHER

09169-08032

Unavailable

10

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
