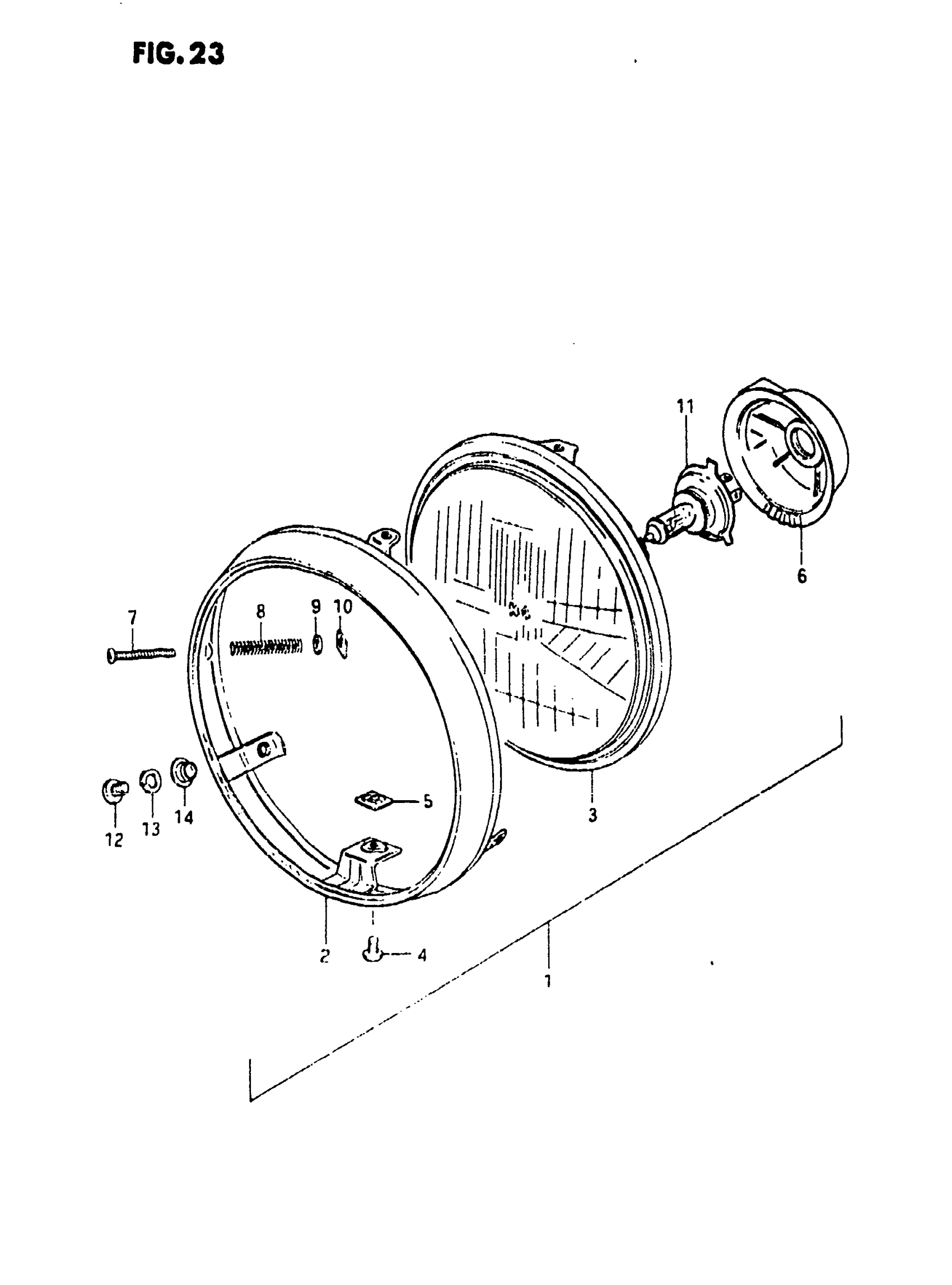

Suzuki GS450E (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 10

35100-33230-999

Unavailable

2

RIM

35111-33240

Unavailable

3

UNIT

35121-33230

Unavailable

4

SCREW This part replaces 02112-05088.

02112-05087

$1.49

5

NUT This part replaces 35135-12610.

35155-48510

$2.28

6

COVER, SOCKET

35173-45200

Unavailable

7

SCREW This part replaces 35151-33240.

35151-45230

Unavailable

8

SPRING

35154-48510

Unavailable

9

WASHER

35157-27630

$3.25

10

NUT This part replaces 35152-48510.

35135-45600

$3.65

11

BULB (H4, 12V, 60/55W) | EXECUTED LOCALLY

09471-12060

$25.15

12

SCREW This part replaces 09125-05022.

09125-05115

$3.20

13

WASHER This part replaces 09162-05003.

09162-05002

$1.49

14

WASHER

09169-06021

$2.36
