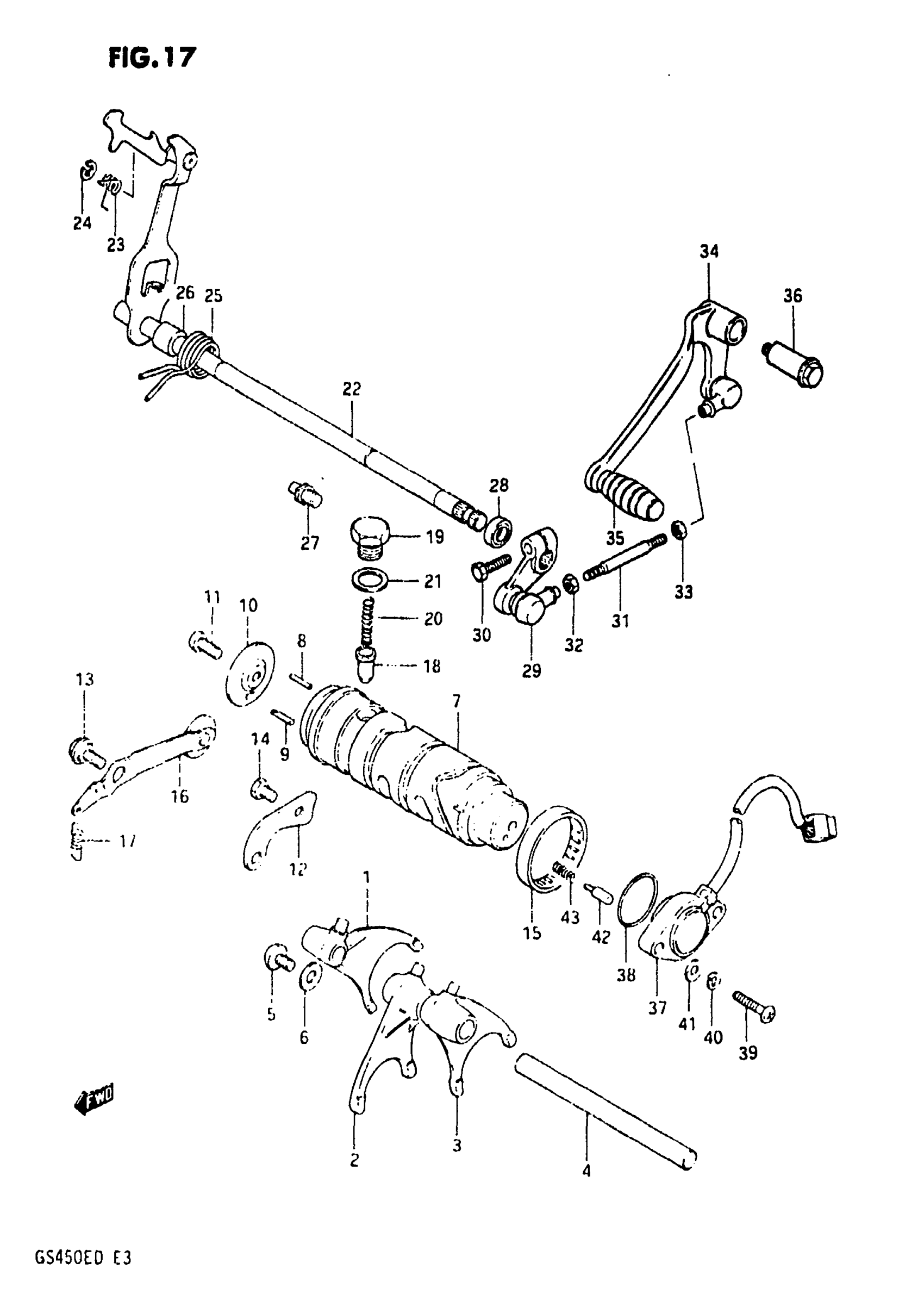

Suzuki GS450E (1983) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-44001

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-44001

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-44000

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$23.07

5

SCREW

02142-06108

$2.45

6

WASHER

08211-06141

$1.59

7

CAM, GEAR SHIFTING This part replaces 25311-47000.

25311-47001

Unavailable

8

PIN

09261-04001

$1.72

9

PIN

09209-04013

Unavailable

10

HOLDER, DRIVE PIN

25322-44000

Unavailable

11

SCREW This part replaces 02112-06168.

02112-06167

$1.49

12

GUIDE, CAM This part replaces 25341-44000.

25341-33300

Unavailable

13

BOLT This part replaces 09111-06019.

09111-06054

$3.70

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

BEARING

09263-40001

$29.53

16

STOPPER, CAM NO.1

25350-44000

Unavailable

17

SPRING

09443-09007

$2.56

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

19

HOLDER, SPRING

25354-30000

$9.17

20

SPRING

09440-06020

$1.79

21

GASKET

09168-14004

$1.83

22

SHAFT, GEAR SHIFTING

25510-44100

Unavailable

23

SPRING

09448-13008

$3.74

24

E RING This part replaces 08332-11078.

08332-1107A

$1.78

25

SPRING This part replaces 09444-26012.

09444-26013

$3.10

26

SPACER

09180-12068

$3.16

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

29

ARM,GEAR SHIFT This part replaces 25520-47000.

25520-47021

$42.92

30

BOLT This part replaces 01107-06208.

01500-06207

$2.28

31

ROD, GEAR SHIFT LINK This part replaces 25525-33200.

25525-12C10

$8.83

32

.NUT This part replaces 08310-11068.

08310-00067

$2.13

33

NUT, L

09140-06011

$1.49

34

NO DESCRIPTION AVAILABLE | Includes Item(s) 35 This part replaces 25600-33200.

25600-33210

Unavailable

35

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

36

SHAFT, LEVER This part replaces 25617-44100.

25617-44101

Unavailable

37

BODY, SWITCH This part replaces 37720-33200.

37720-45100

$101.35

38

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

39

SCREW This part replaces 02112-05208.

02112-05207

$1.97

40

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

41

WASHER This part replaces 08322-21058.

08322-01057

$2.13

42

CONTACT

09209-05011

$2.20

43

SPRING

09440-04010

$1.54
