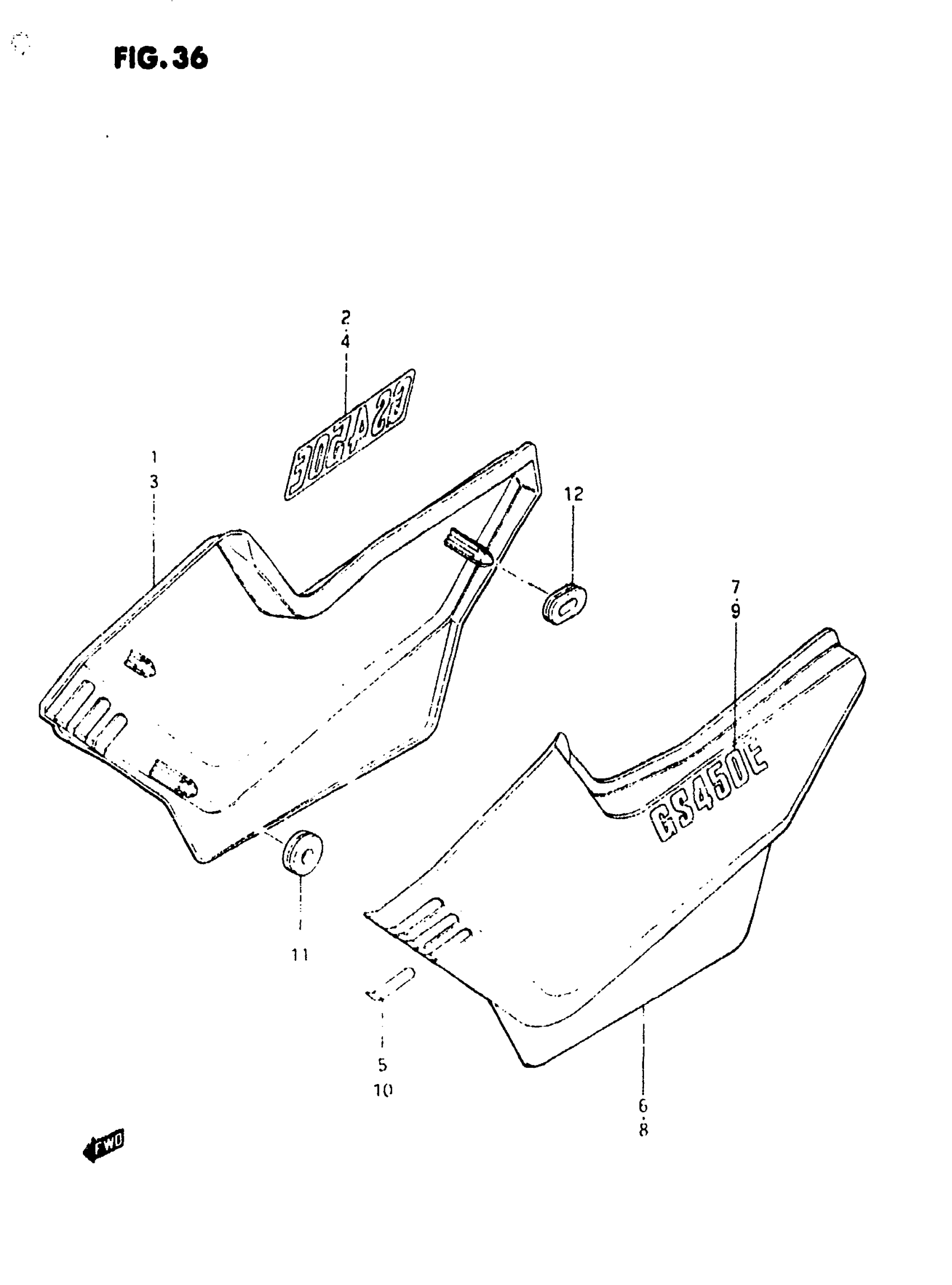

Suzuki GS450E (1983) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME, R This part replaces 47111-44400-07P.

47111-44400

Unavailable

2

EMBLEM, RH

68131-44420-60D

Unavailable

3

COVER, FRAME, R This part replaces 47111-44400-019.

47111-44400

Unavailable

4

EMBLEM, RH

68131-44420-69P

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 68134-44400.

68134-44400-291

Unavailable

6

COVER,FRAME LH This part replaces 47211-44400-07P.

47211-44400

Unavailable

7

EMBLEM, LH

68131-44420-60D

Unavailable

8

COVER,FRAME LH This part replaces 47211-44400-019.

47211-44400

Unavailable

9

EMBLEM, LH

68131-44420-69P

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 68144-44400.

68144-44400-291

Unavailable

11

CUSHION, FRONT

09320-08018

$3.04

12

CUSHION, REAR

09329-08003

$3.16
