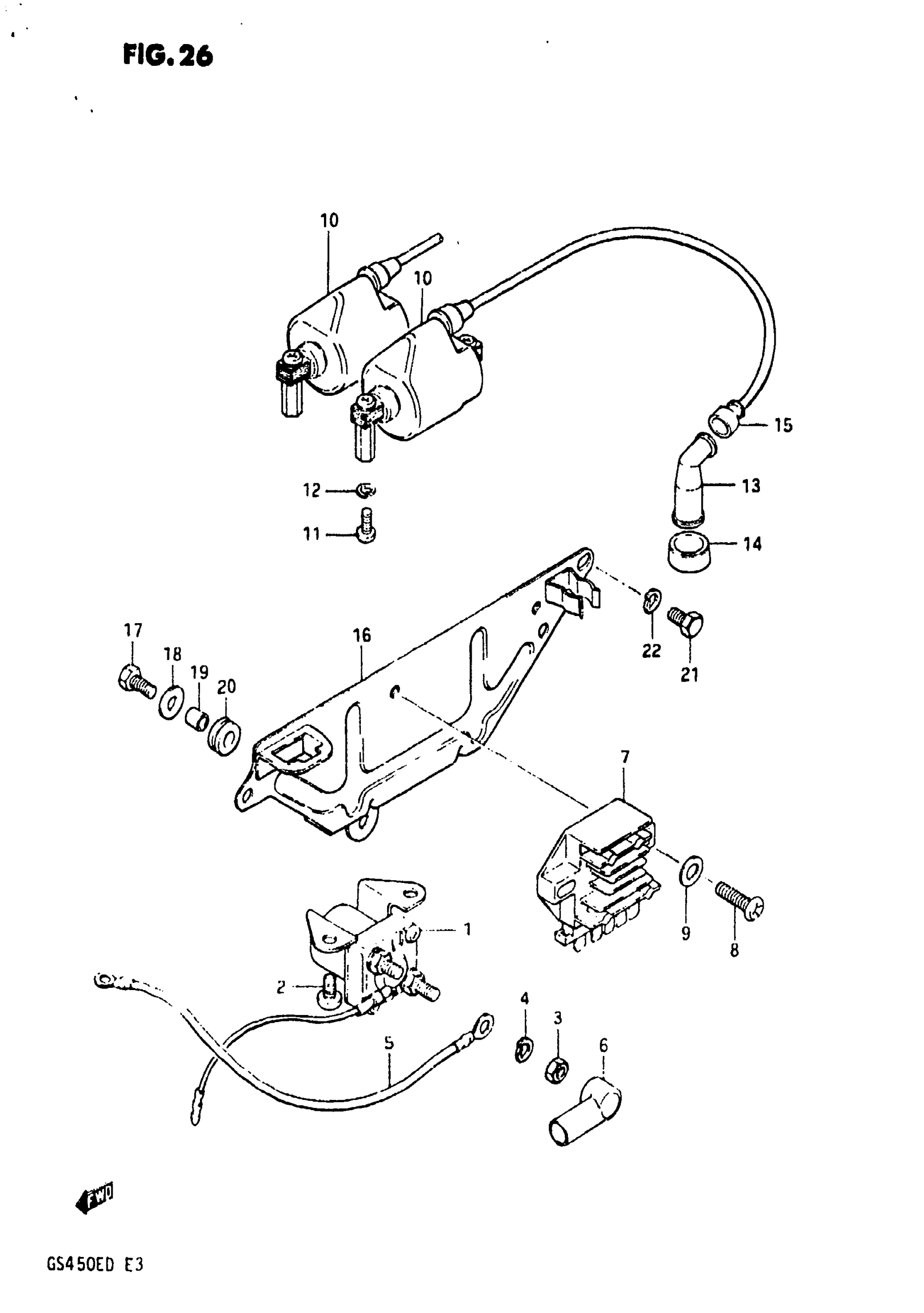

Suzuki GS450E (1983) ELECTRICAL Diagram

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

SCREW This part replaces 02112-06088.

02112-06087

$1.49

.NUT This part replaces 08310-22068.

08310-00067

$2.13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

LEAD WIRE, (-) This part replaces 33850-44110.

33850-03201

$9.94

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

RECTIFIER ASSY This part replaces 32800-44130.

32800-33401

Unavailable

SCREW This part replaces 02112-06208.

02112-06207

$1.78

WASHER This part replaces 08322-21068.

08322-01067

$2.13

COIL ASSY,IGNIT This part replaces 33410-44410.

33410-44X50

Unavailable

SCREW This part replaces 02112-05108.

02112-05107

$1.49

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

CAP, SPARK PLUG

33510-43010

$24.99

SEAL, SPARK PLUG

33541-69010

$4.37

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

NO DESCRIPTION AVAILABLE This part replaces 47410-44401.

47410-44402

Unavailable

BOLT This part replaces 01107-06208.

01500-06207

$2.28

WASHER This part replaces 09160-06007.

09160-06084

$1.78

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

BOLT This part replaces 01107-06108.

01500-06107

$2.06

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
