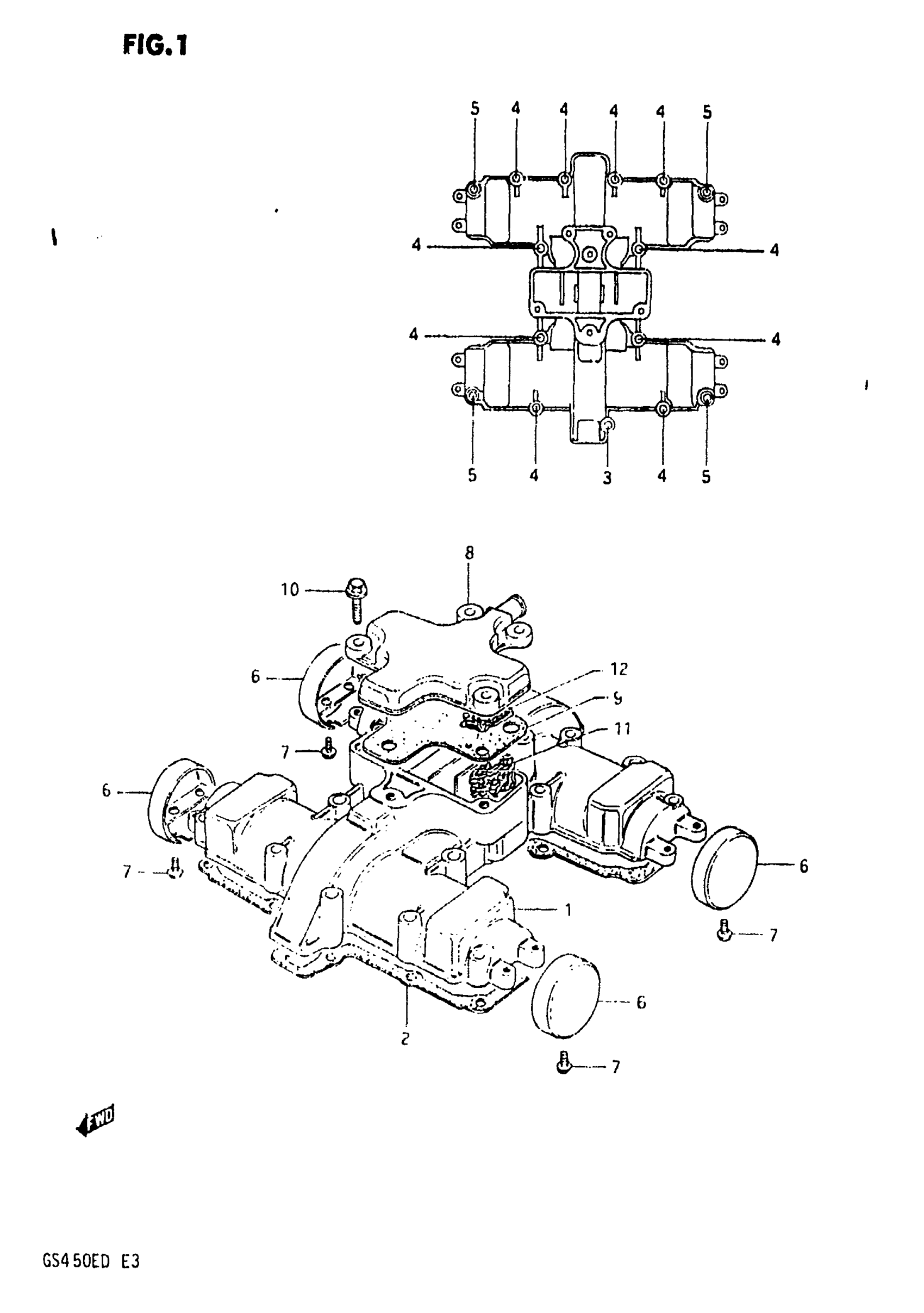

Suzuki GS450E (1983) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD This part replaces 11171-44110.

11171-44111

Unavailable

2

GASKET,HEAD COV This part replaces 11173-44110.

11173-44112

Unavailable

3

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

4

BOLT This part replaces 01517-06408.

01550-06407

$2.69

5

BOLT This part replaces 01517-06308.

01550-06307

$2.69

6

CAP, SIDE (LIGHT ALLOY)

11174-44110

Unavailable

7

SCREW

09125-05037

Unavailable

8

COVER, BREATHER This part replaces 11176-47002.

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

SEPARATOR,OIL B This part replaces 11186-45000.

11186-45001

Unavailable

12

SEPARATOR,OIL B This part replaces 11187-45000.

11187-45001

Unavailable
