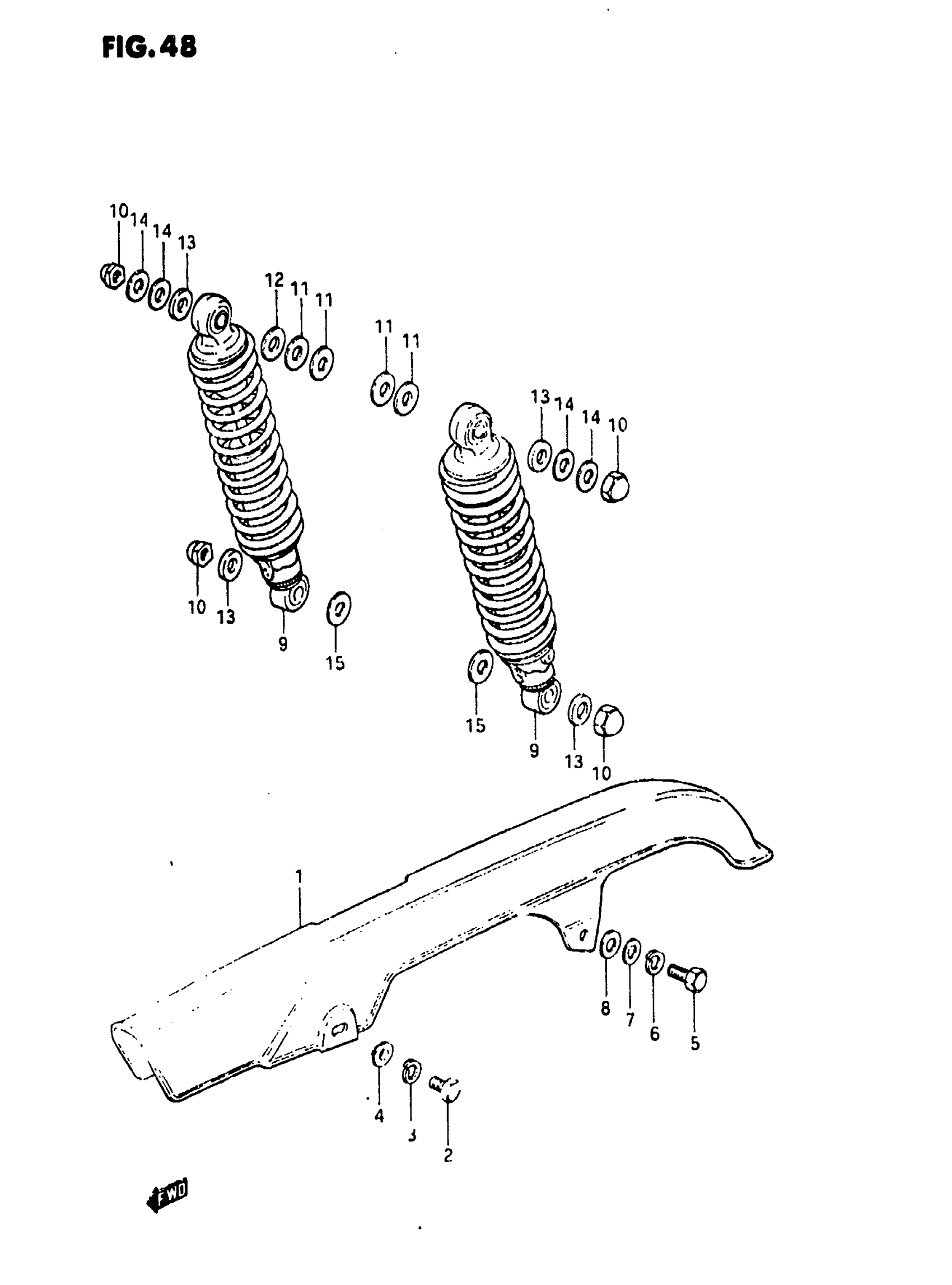

Suzuki GS450E (1983) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description
Price

1

CHAIN CASE

61310-44400

Unavailable

2

BOLT This part replaces 01107-06108.

01500-06107

$2.06

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER This part replaces 09169-06025.

09169-06010

$2.60

5

BOLT This part replaces 01107-06128.

01500-06127

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

9

NO DESCRIPTION AVAILABLE This part replaces 62100-44400.

62100-44411

Unavailable

10

NUT This part replaces 08313-11108.

08313-10107

$2.50

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

13

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

14

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

15

WASHER This part replaces 09160-12004.

09160-12088

$2.00
