1979 Suzuki GS425L Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1979 Suzuki GS425L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

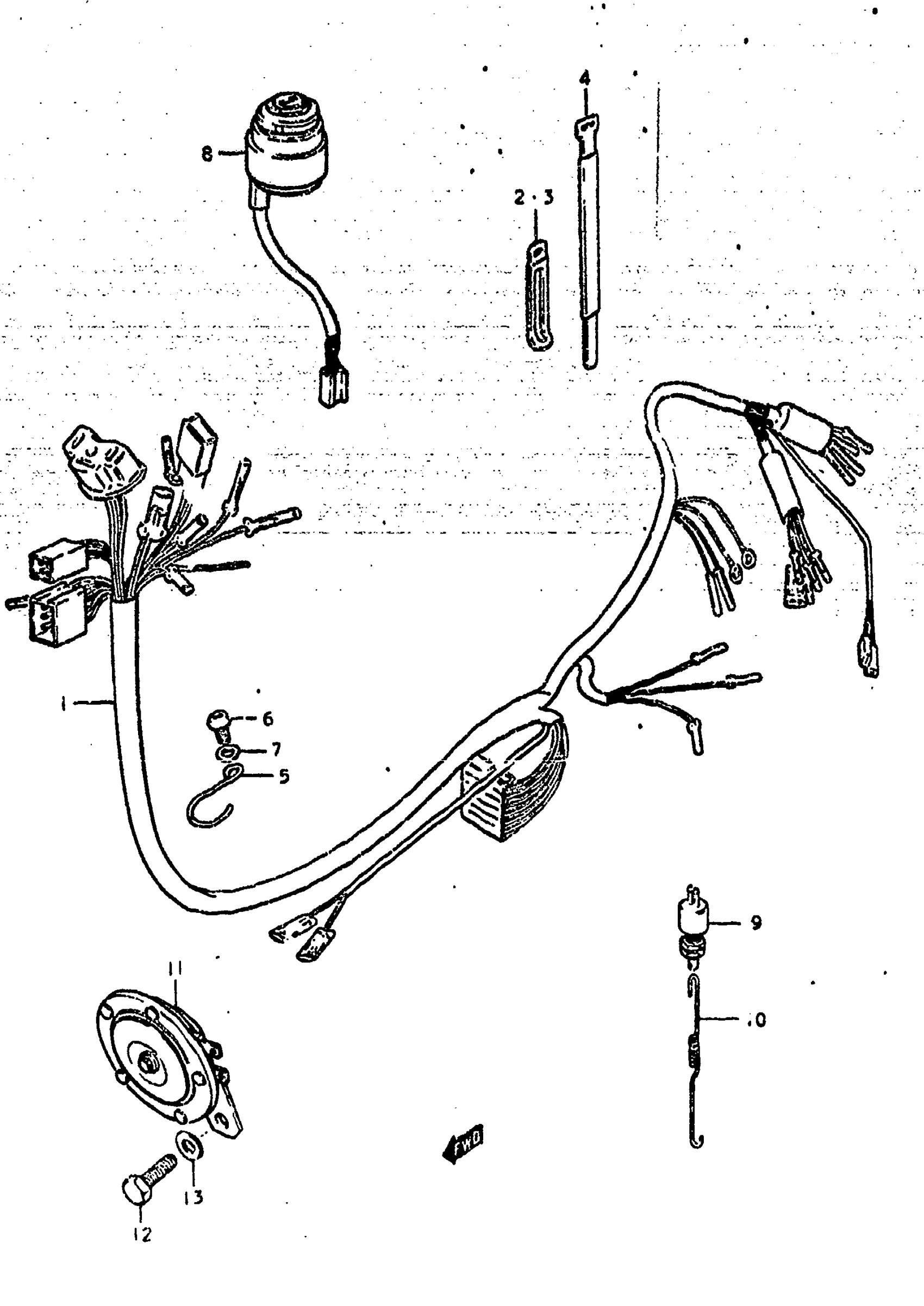

1979 Suzuki GS425L Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-44210

1
Out of stock

2

CLAMP | L:60 This part replaces 09404-06402.

09404-06039

1
Out of stock

3

CLAMP(L:80) | L:80 This part replaces 09404-06414.

09404-06036

1
Out of stock

4

CLAMP This part replaces 09407-18301.

09407-18302

5
Out of stock

5

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

1
Out of stock

6

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

7

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

8

SWITCH ASSY IGN This part replaces 37110-31016.

37110-31017

1
Out of stock

9

SWITCH, REAR BRAKE LAMP This part replaces 37740-04570.

37740-48071

1
Out of stock

10

SPRING

09443-06016

1
Out of stock

11

HORN ASSY This part replaces 38500-64130.

38502-49001

1
Out of stock

12

BOLT This part replaces 01107-08128.

01500-08127

1
Out of stock

13

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock
← Trun Signal Lamp Footrest →
